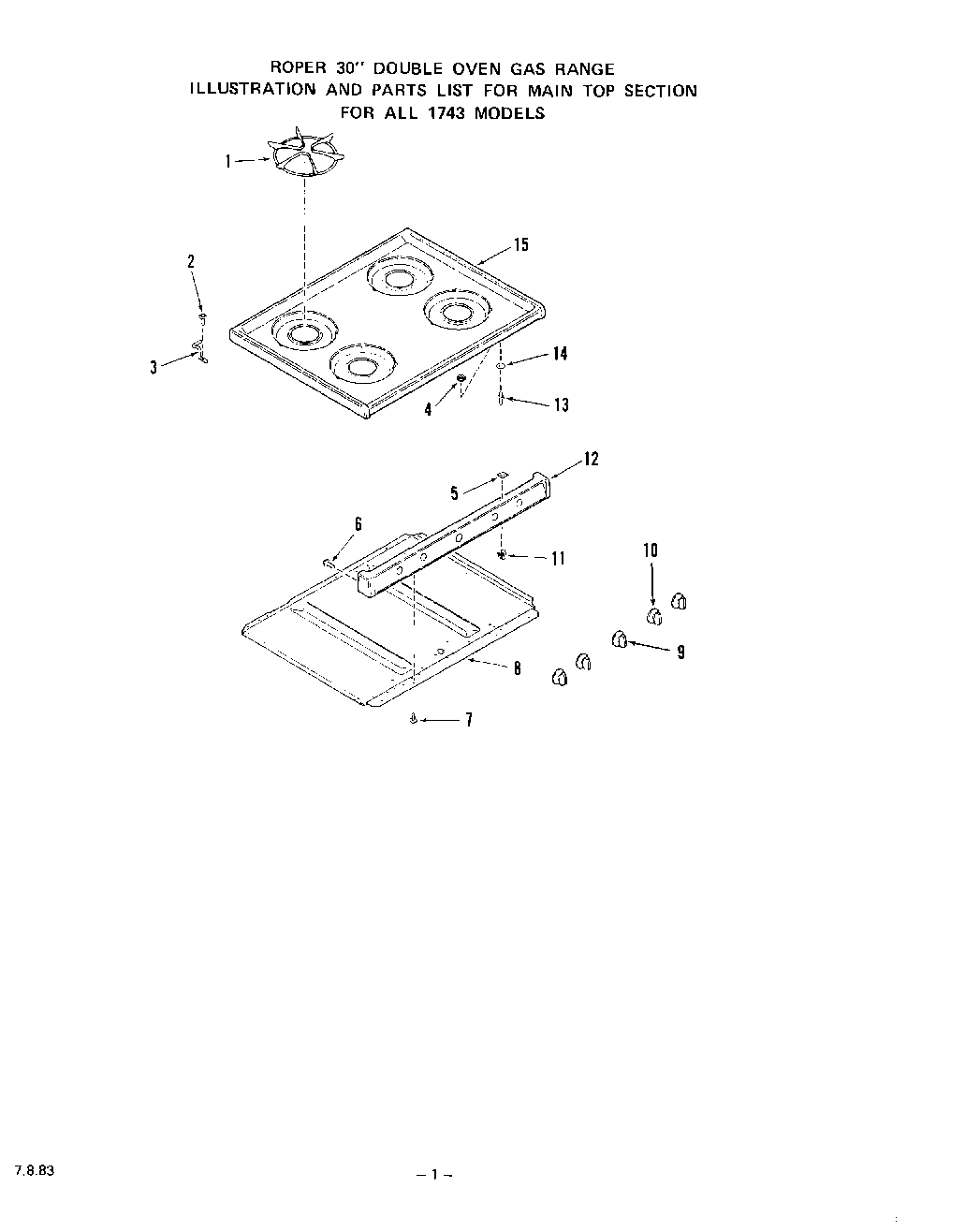

1743W0A 02 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
2	WPL 316365
3	Hinge (Left)
3	Hinge (Right)
4	Keps Nut 8-32
5	Washer
6	Screw 10 – 32 x 7/16“
7	Screw 10-32×3/8“
8	Burner Box Bottom
9	Knob – Thermostat
10	Knob – Gas Valve (4 Req)
11	Catch-Main Top Strike (2 Required)
12	Manifold Panel (White)
12	Manifold Panel (Golden Wheat)
12	Manifold Panel (Almond)
12	Manifold Panel (Black)
13	Strike-Main Top (2 Required)
14	Washer
15	Chrome
15	Golden Wheat
15	Almond
15	White
