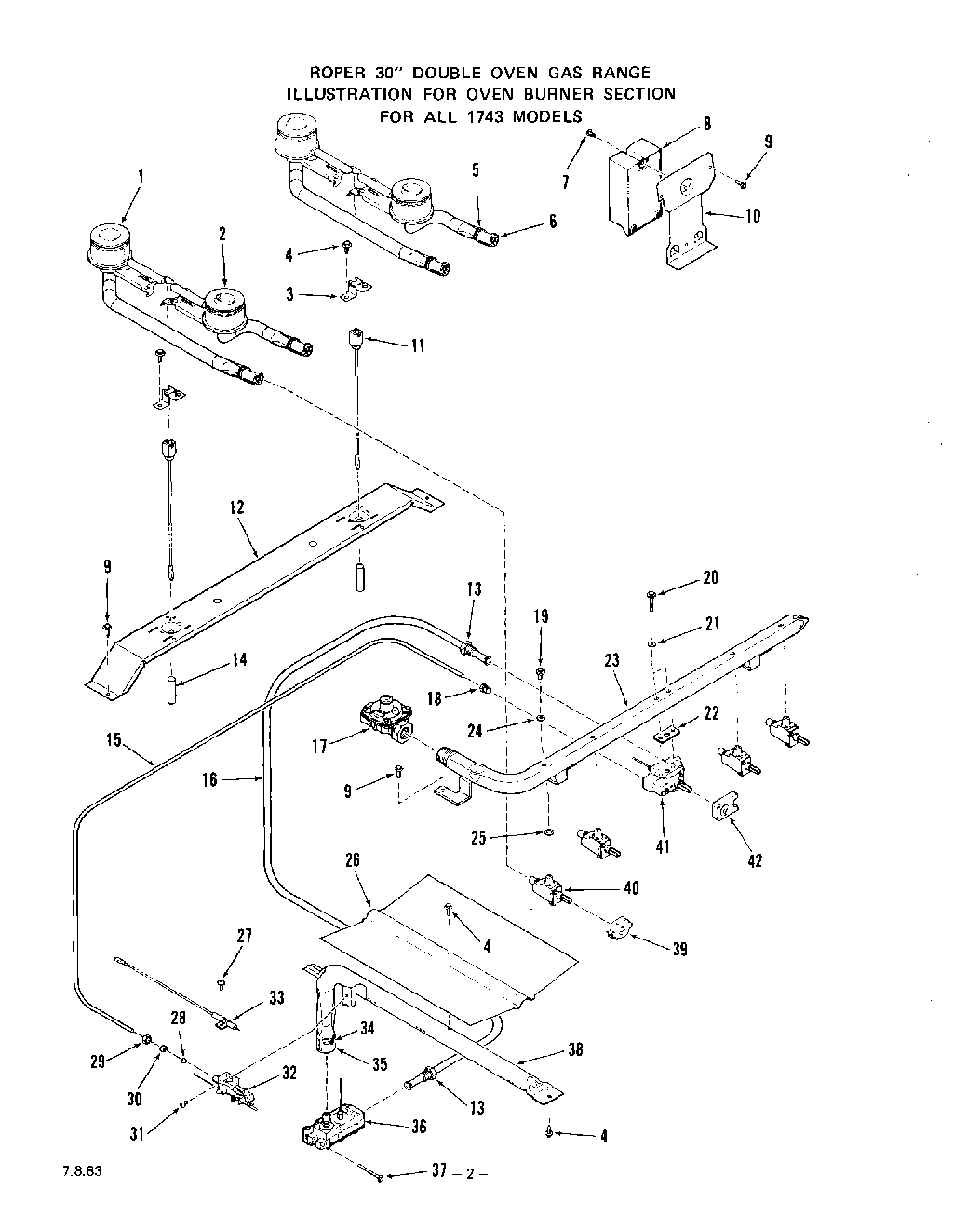

1743W0A 03 – OVEN BURNER

Products

Position	Product
1	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
2	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
3	panel, side l.h. (almond panel, side r.h.)
4	WPL 316365
5	Adjustment Screw-Air Shutter
6	Air Shutter
7	Screw 6-32 x 1/2“
8	Module – Spark Igniter
9	WP112432 Whirlpool Nut Assembly
10	Support-Spark Igniter
11	Panel, Side L.H. (Platinum Panel, Side R.H.)
11	Right
12	Support-Top Burner
13	Inverted Nut 3/8“
14	Sleeve-Igniter Wire (Lt. or Rt.)
15	Tubing 3/16“
16	Tubing 3/8“
17	Pressure Regulator
18	Loxit Nut 3/16“
19	Mounting Screw (Inc`s 86)
20	Mounting Screw (2 Req. for 114)
21	Gasket (For 83)
22	Silicone Rubber Gasket
23	Manifold Pipe
24	Gasket (For 81)
25	Silicone Rubber Gasket
26	Baffle – Oven Burner
27	Screw 6-32 x 5/16“
28	Orifice Cup Only (For 94)
29	Compression Nut 3/16“
30	Compression Ball Sleeve 3/16“
31	Screw 10-24×1/4“
32	Pilot Only (Inc`s 90)
33	Electrode – Oven Spark Igniter
34	Adjustment Screw-Air Shutter
35	Aid Shutter
36	Control Valve (Inc`s 90 & 94)
37	Screw 10-32 x 2“
38	WPL 319255
39	Panel, Side L.H. (White)
40	Gas Valve – 4 Req.
41	WPL 318477
42	WPL 318432
