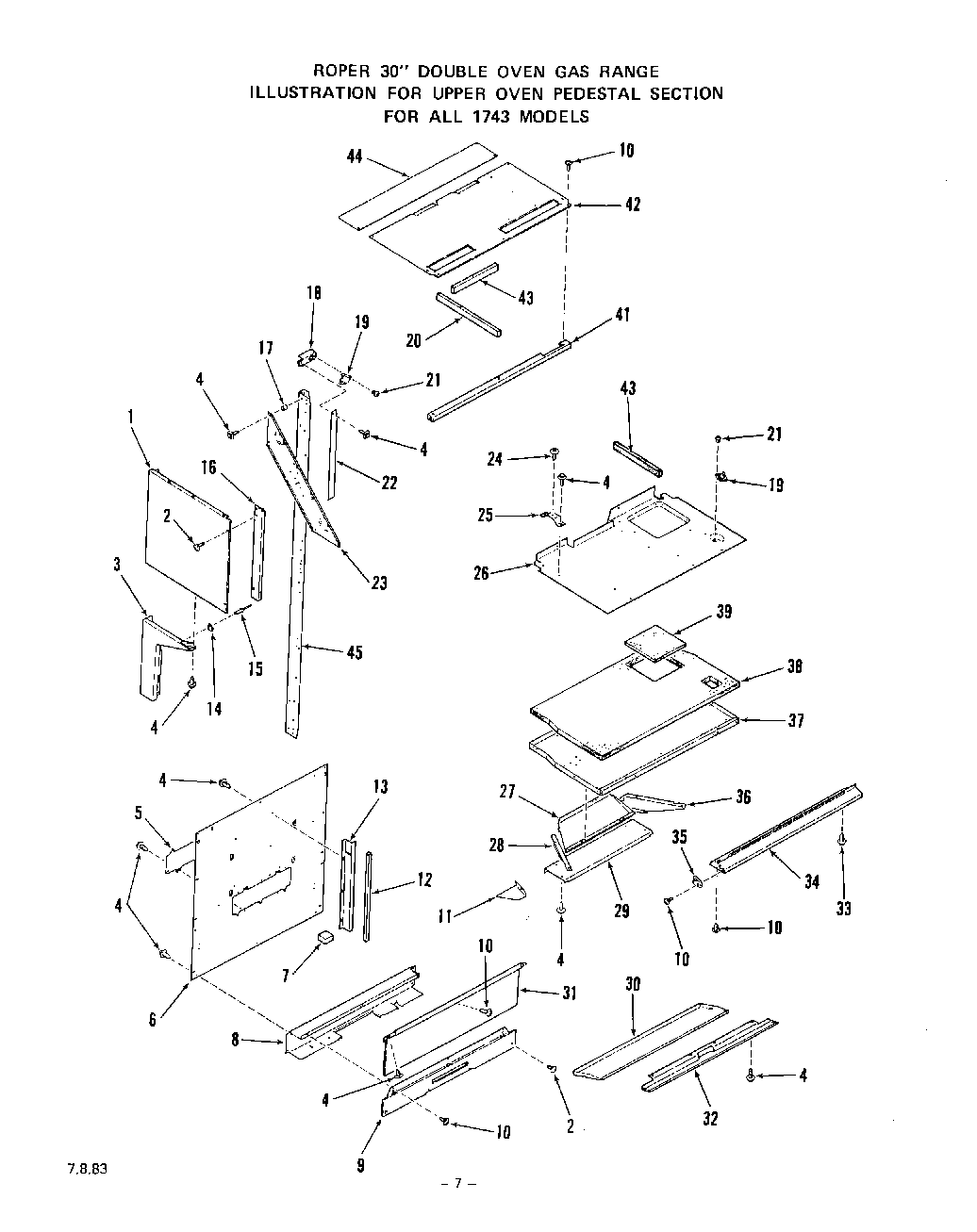

1743W0A 06 – UPPER OVEN PEDESTAL

Products

Position	Product
1	Upper Oven Body Side (White – Left)
1	Upper Oven Body Side (Almond – Right)
1	Upper Oven Body Side (Golden Wheat – Right)
1	Upper Oven Body Side (White – Right)
1	Upper Oven Body Side (Almond – Left)
1	Upper Oven Body Side (Golden Wheat – Left)
2	Screw 6-32×3/8“
3	WPL 325293
3	WPL 325292
3	WPL 325289
3	WPL 325287
3	WPL 325286
3	WPL 325283
4	Screw 10-32×7/16“
5	Cover Plate
6	WPL 325773
7	WPL 326696
8	WPL 323956
9	Lower Backsplash
10	Screw 6-32 x 3/8“
11	WPL 322933
11	WPL 322935
12	WPL 326697
12	Foam Strip (Right)
13	WPL 325726
13	WPL 325728
14	Retainer
15	Pop Rivet
16	Side Trim (Left)
16	Side Trim (Right)
17	Spacer (4 Req)
18	Box – Auxiliary Thermostat
19	WPL 325401
20	WPL 325029
21	WPL 230710
22	WPL 326417
23	brace-cabinet side (lt. or rt.)
24	Screw 10-32×1/2“
25	Support – Microwave (4 Req)
26	Base – Microwave
27	WPL 322937
28	WPL 322949
29	WPL 320261
30	WPL 321663
30	WPL 321664
30	WPL 321660
31	WPL 325349
31	WPL 325346
31	WPL 325350
32	Almond
32	Golden Wheat
32	White
33	WPL 316365
34	WPL 325471
35	WPL 325338
35	WPL 325337
36	WPL 320257
37	WPL 325297
38	WPL 325299
39	WPL 326031
41	WPL 325328
42	WPL 325322
42	WPL 325325
42	WPL 325326
43	WPL 324504
44	WPL 321672
44	WPL 321671
44	WPL 320476
45	WPL 325307
45	WPL 325802
