1743W0A 07 – BLOWER

1743W0A 07 – BLOWER

Written by

in

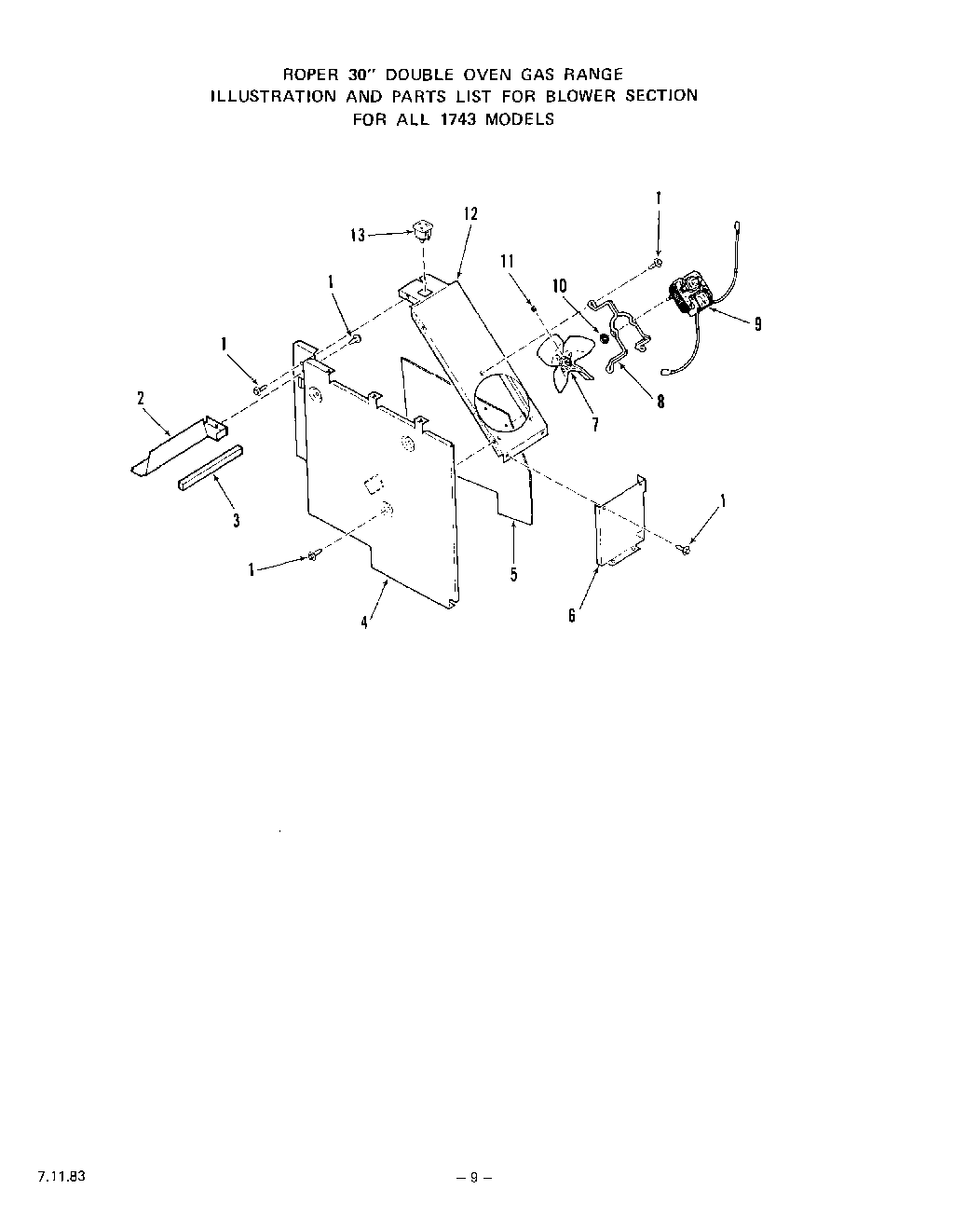

1743W0A 07 – BLOWER

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Baffle – Airway
3	Foam Strip
4	Side – Compartment
5	Air Duct
6	Front – Blower Mounting Plate
7	Fan Blade
8	Support – Blower Motor
9	Motor – Blower
10	Nut 6-32
11	Set Screw 10-32
12	Mounting Plate – Blower
13	WPL 109180
