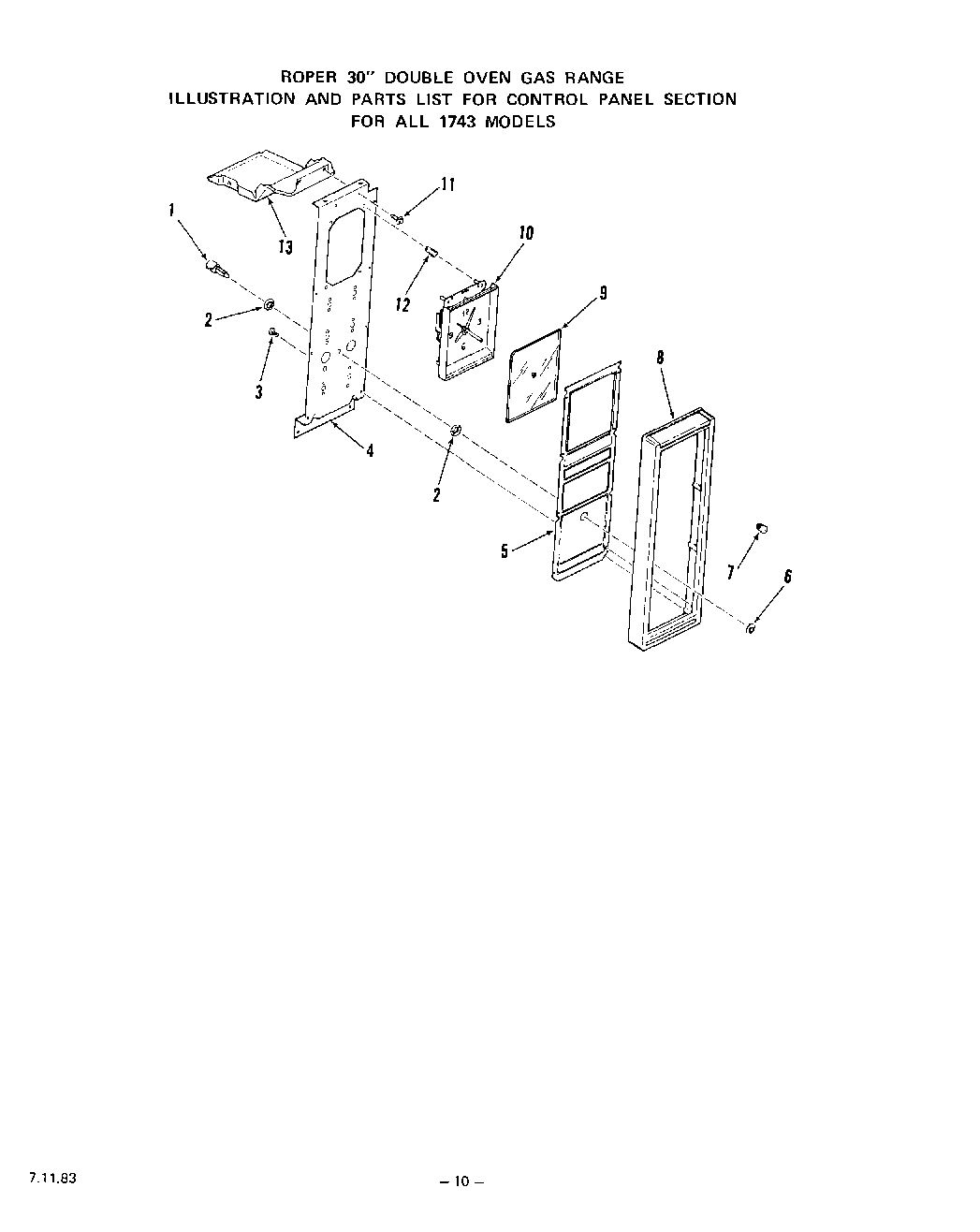

1743W0A 08 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Module
1	Push Switch – Oven Light
2	Lock Nut
3	Screw 4-24×1/4“
4	Mounting Panel – Controls
5	Control Curtain (Inc`s. 8)
6	Trim Nut
7	Knob-Clock (Start & Stop Time)
8	Control Panel Trim w/Top & Bottom Inlays
9	Lens – Clock
10	Clock w/4 Hr. Timer
11	WP112432 Whirlpool Nut Assembly
12	Tubular Clip (4 Req.)
13	Repair Parts List
13	Main
13	Operating Guide
13	Installation & Reference Guide
13	Barrier Intrusion
13	Switches – Gas Valve
13	Gas Use & Care Guide
13	Wire Harness
