1745^0A 05 – PEDESTAL

1745^0A 05 – PEDESTAL

Written by

in

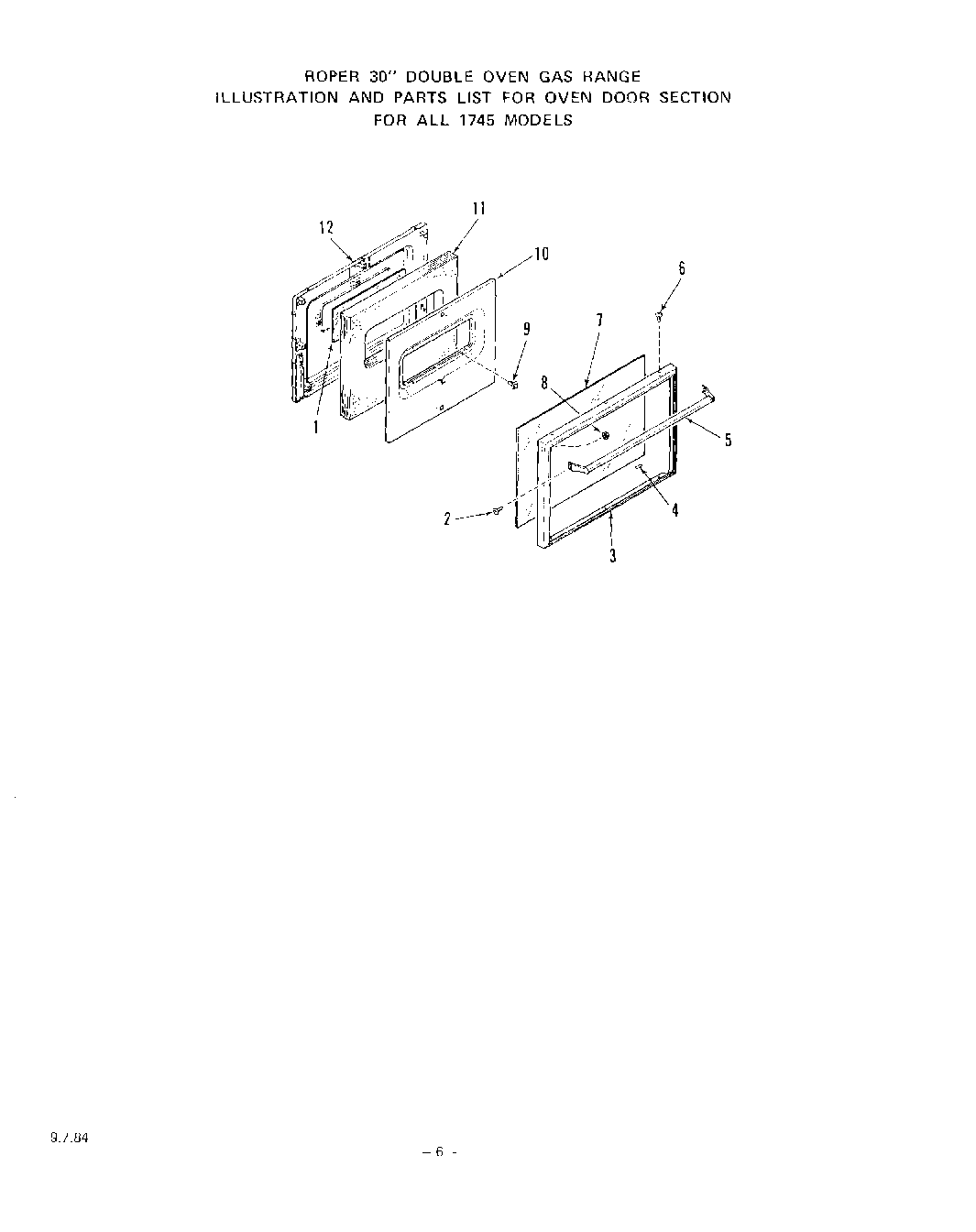

1745^0A 05 – PEDESTAL

Products

PositionProduct
1Glass-Inner Oven Door
2Screw 8-32 x 1/2“
3frame-oven door
4Cushion-Door Glass
5Handle-Oven Door
6Screw-10-32×1/2“
7Outer Glass – Oven Door
8Keps Nut 8-32
9Screw 10 – 32×3/8“
10Retainer-Oven Door Insulation
11Insulation
12Lining-Oven Door
