1745^0A 06 – BLOWER , BLOWER

Products

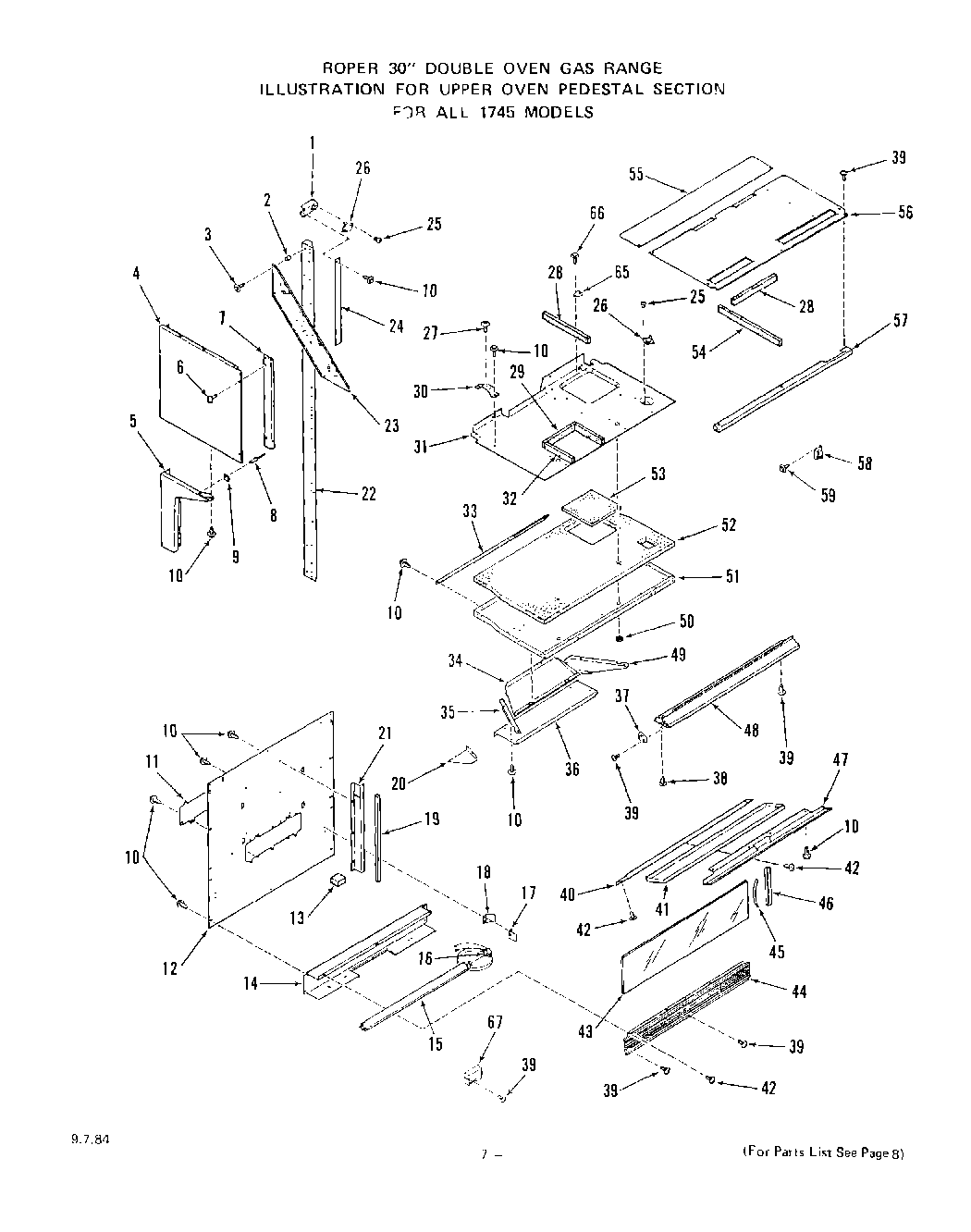

Position	Product
1	Box – Auxiliary Thermostat
2	Spacer (4 Req)
3	Screw 10-32×1“
4	Upper Oven Body Side (Platinum – Right)
4	Upper Oven Body Side (Platinum – Left)
4	Upper Oven Body Side (Toast – Left)
4	Upper Oven Body Side (White – Right)
4	Upper Oven Body Side (Toast – Right)
4	Upper Oven Body Side (Black – Left)
4	Upper Oven Body Side (Almond – Right)
4	Upper Oven Body Side (Almond – Left)
4	Upper Oven Body Side (Golden Wheat – Right)
4	Upper Oven Body Side (Black – Right)
4	Upper Oven Body Side (Golden Wheat – Left)
4	Upper Oven Body Side (White – Left)
5	WPL 328213
5	WPL 328214
5	Pedestal-Upper Oven (Black – Left)
5	Pedestal-Upper Oven (Black – Right)
5	WPL 328128
5	WPL 328127
5	WPL 325293
5	WPL 325292
5	WPL 325289
5	WPL 325287
5	WPL 325286
5	WPL 325283
7	Side Trim (Right)
7	Side Trim (Left)
8	Pop Rivet
9	Retainer
10	WP112432 Whirlpool Nut Assembly
11	Cover Plate
12	WPL 325773
13	WPL 326696
14	Wire Cover-Fluorescent Lamp
15	Fluorescent Lamp (20 W – 24“)
16	Left
16	Right
17	Bracket-Fluorescent Lamp (Right)
18	Shield-Wire
19	WPL 306543
19	WPL 326697
20	WPL 322935
20	WPL 322933
21	WPL 325728
21	WPL 325726
22	WPL 327028
22	support-upper oven (lt. or rt.)
23	brace-cabinet side (lt. or rt.)
24	WPL 326417
25	WPL 9412070
26	WPL 325401
27	Screw 10-32×3/8“
28	WPL 324504
29	WPL 328020
30	WPL 328492
31	WP330190 Whirlpool Knob
32	WPL 328021
33	WPL 325301
34	WPL 322937
35	WPL 322949
36	WPL 320261
37	WPL 325337
37	WPL 325338
38	WPL 316365
39	Screw 6-20×3/8“
40	Almond
40	Platinum
40	Golden Wheat
40	White
40	Toast
40	WPL 329671
41	Almond
41	Platinum
41	WPL 328426
41	Golden Wheat
41	White
41	Toast
42	Screw 6-20×3/8“
43	WPL 327786
44	lower retainer-fluorescent lamp glass
45	Spring – Lamp Glass End Trim (Lt or Rt)
46	End Trim – Lamp Glass (Lt or Rt)
47	Toast
47	Almond
47	Golden Wheat
47	White
47	Platinum
47	WPL 327639
48	WPL 325336
49	WPL 320257
50	WPL 288197
51	WPL 328608
52	WPL 327799
53	WPL 326031
54	WPL 325029
55	WPL 328205
55	WPL 321671
55	WPL 327638
55	WPL 320476
55	WPL 328206
55	WPL 321672
56	WPL 325325
56	WPL 325326
56	WPL 328207
56	WPL 328208
56	WPL 327640
56	WPL 325322
57	WPL 325328
58	Ballast
59	Screw 10 – 32 x 1/4“
65	Cover Plate-Thermostat Bulb
66	Screw 10-16×7/16“
67	Module – Spark Igniter
