1745^0A 08 – LIT/OPTIONAL
Written by
in

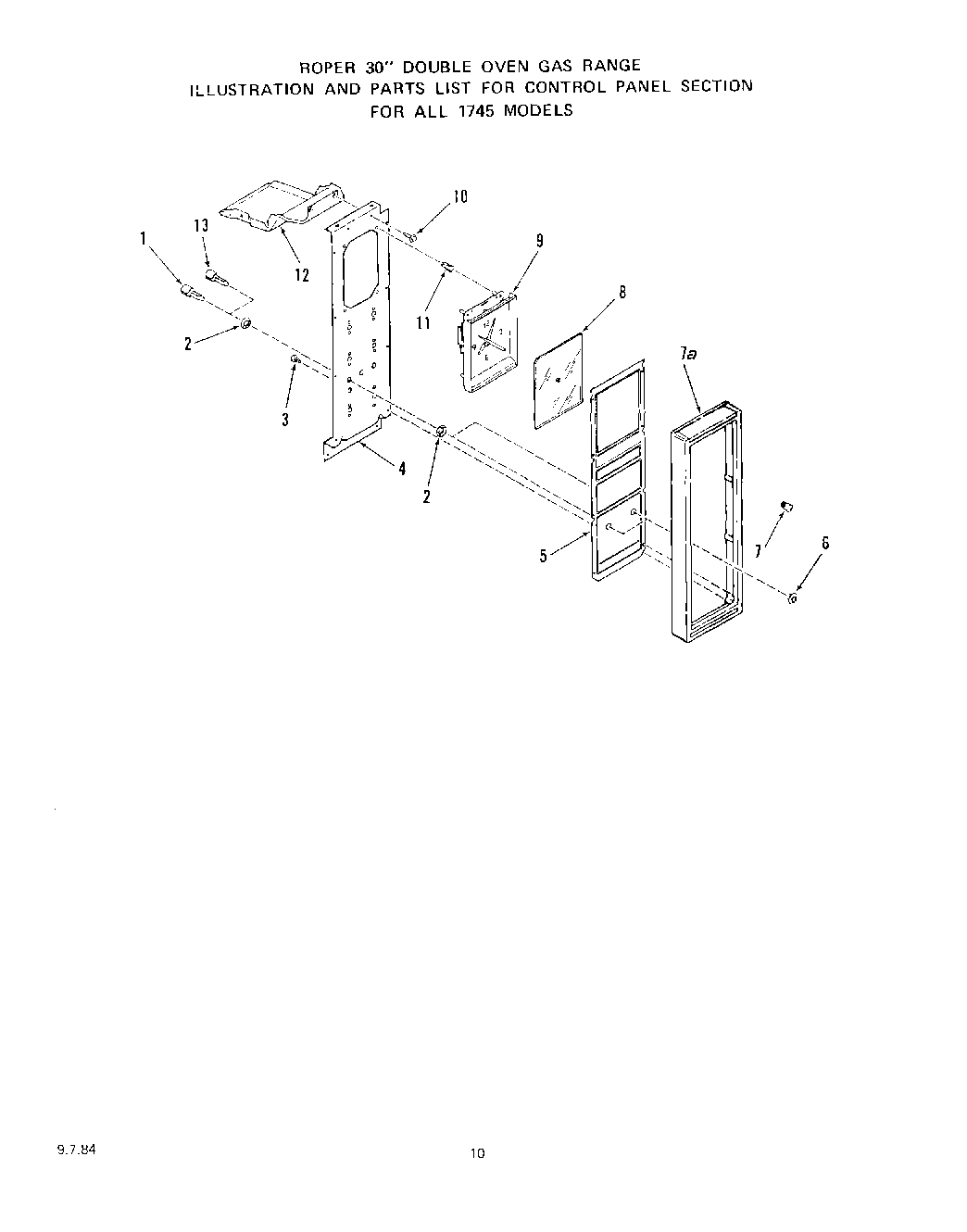

1745^0A 08 – LIT/OPTIONAL
Products
Position
Product
1
Push Switch-Fluorescent Lamp
2
Lock Nut
3
Screw 4-24×1/4“
4
Mounting Panel-Controls
5
Control Curtain (Inc`s. Key 7a)
6
Trim Nut
7
Knob-Clock (Start & Stop Time)
7a
Control Panel Trim (Included w/Key 5)
8
Lens – Clock
9
Clock w/4 Hr. Timer
10
Screw 6-32×1/4“
11
Tubular Clip (4 Req.)
12
Barrier Intrusion
13
Push Switch – Oven Light
13
Lower
13
Upper
13
Switches – Gas Valve
←
