1745W0A 02 – BURNER
Written by
in

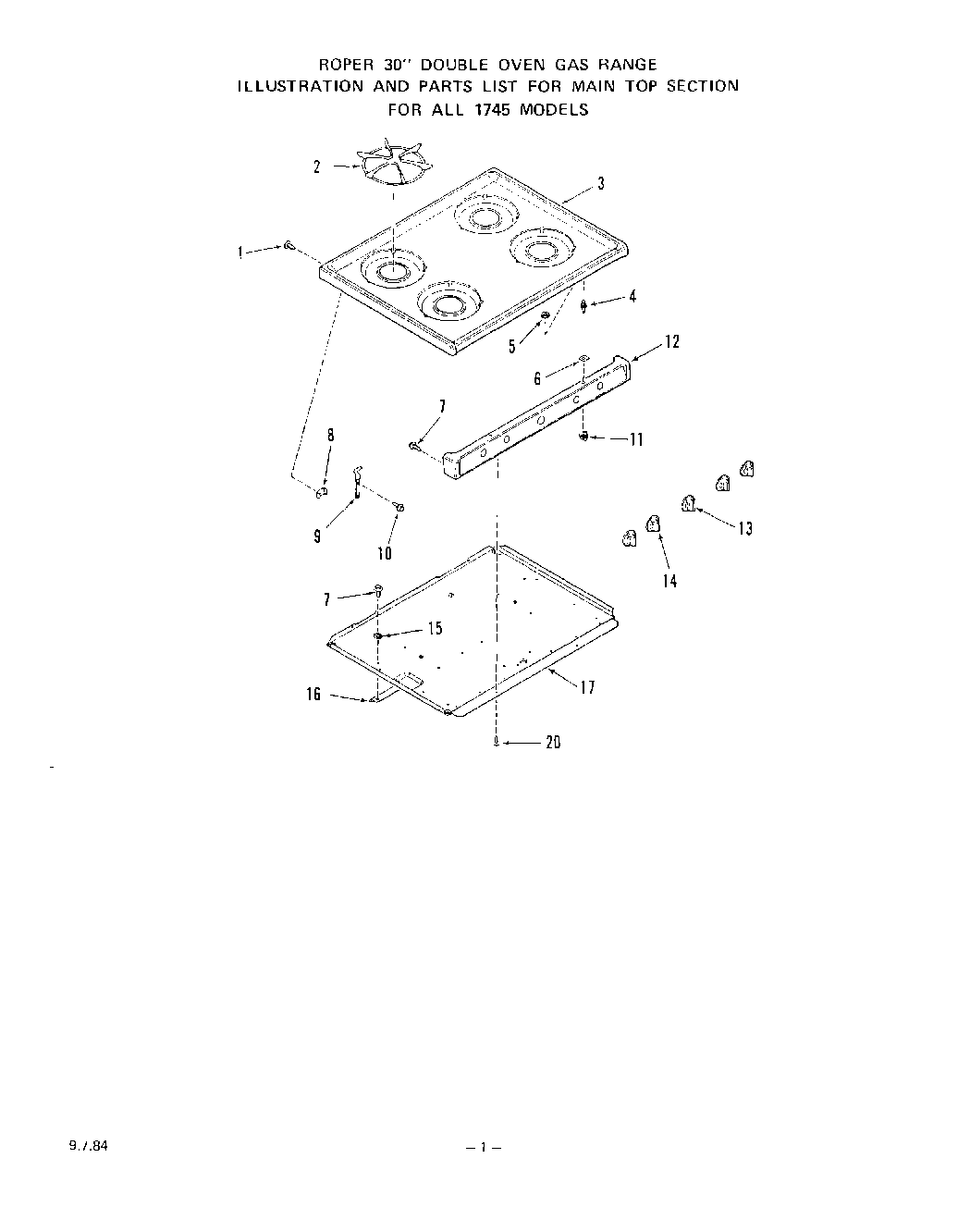

1745W0A 02 – BURNER
Products
Position
Product
1
Screw-10-32×1/2“
2
Top Grate (4 Required)
3
Almond
3
Golden Wheat
3
White
3
Platinum
3
Toast
3
Main Top (Chrome)
4
Strike-Main Top (2 Required)
5
Keps Nut 8-32
6
Washer
7
Screw 10-16×7/16“
8
bracket-main top hinge (lt. or rt.)
9
Left
9
Right
10
WPL 321162
11
Catch-Main Top Strike (2 Required)
12
Manifold Panel (Black)
12
Manifold Panel (Golden Wheat)
12
Manifold Panel (Toast)
12
Manifold Panel (Platinum)
12
Manifold Panel (Almond)
12
Panel-Manifold (White)
13
Knob-Thermostat
14
Knob-Gas Valve (4 Req)
15
Washer
16
Rear Stiffener-Burner Box Bottom
16
Front Stiffener-Burner Box Bottom
17
All 18350A & 1A Models
20
Screw 10-32×3/8“
←
