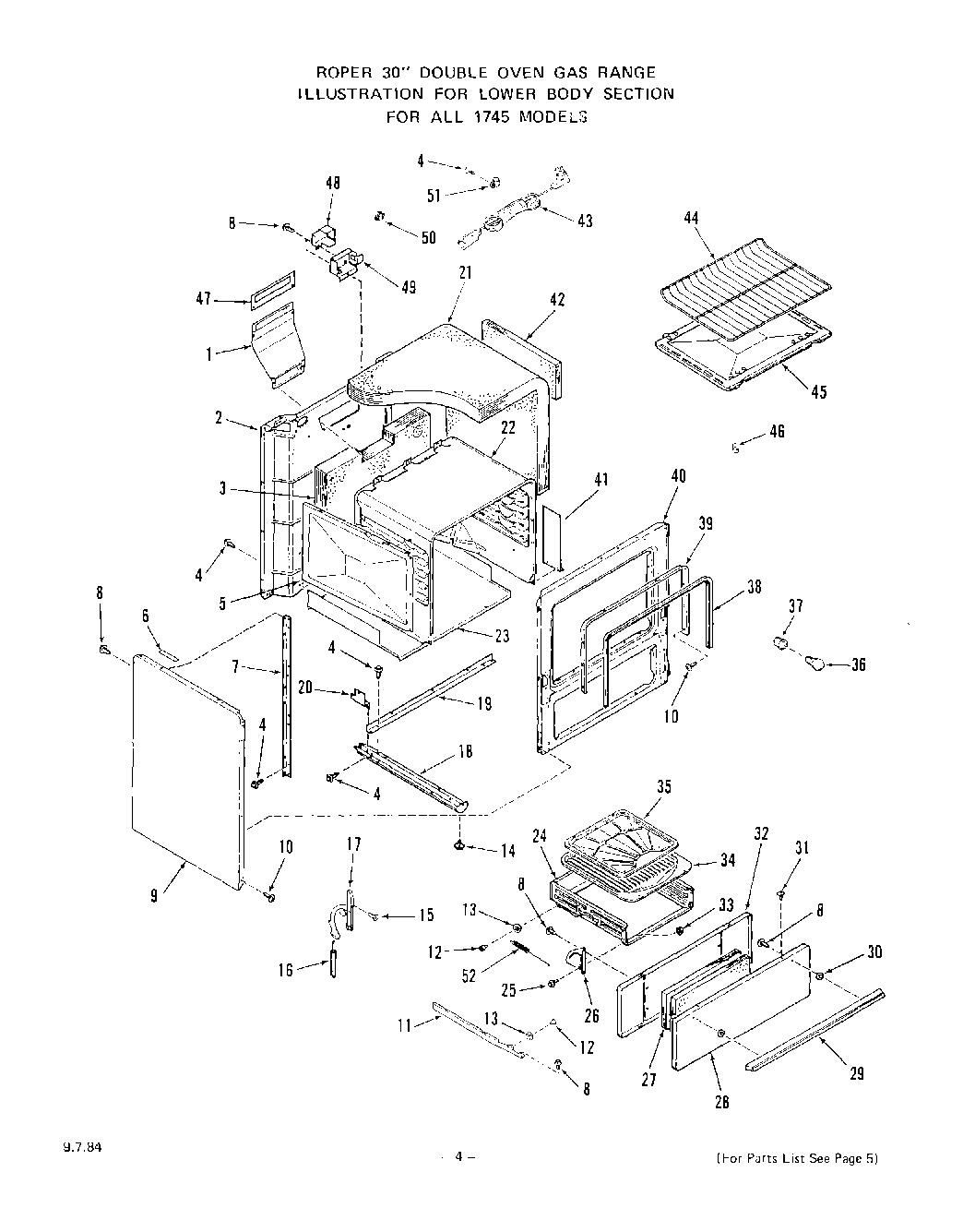

1745W0A 04 – DOOR

Products

Position	Product
1	Flue Deflector
2	Main Back
3	Insulation-Oven Back
4	WP112432 Whirlpool Nut Assembly
5	retainer-insulation (lt. or rt.)
6	Spacer-Main Top (2 Req)
7	s
8	Screw 10-16×7/16“
9	Body Side (Lt. or Rt.) (Black)
9	White
9	Golden Wheat
9	Almond
9	Platinum
9	Toast
10	Screw 10ABx1/2“
11	Right
11	WP691371 Whirlpool Belt
12	Shoulder Rivet
13	Roller
14	Leg Leveler (4 Req)
15	Screw 10-32 x 5/8“
16	spring-oven door (lt. or rt.)
17	Right
17	Left
18	Base w/Leg Levelers (Lt. or Rt.)
19	Strap-Main Back & Base
20	Right
20	Left
21	Insulation-Oven Top & Sides (1 Piece)
22	Oven Body
23	Bottom-Main
24	Broiler Drawer (Inc`s. 12, 13)
25	Bolt-Shoulder
26	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
26	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
28	Platinum
28	Front Panel-Storage Door
28	Toast
28	Almond
28	Golden Wheat
28	White
29	WPL 286357
30	spacer-handle
31	Screw-10-32×1/2“
32	Lining-Broiler Door (14450A Models)
33	Keps Nut 10-24
34	Broiler Pan
35	Broiler Pan Grid
36	Oven Lamp Bulb
37	Holder-Oven Lamp Bulb
38	WPL 326047
39	main chassis (almond)
40	WPL 327279
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
43	Range Service Cord
44	WPL 326068
45	WPL 327084
46	Thermostat Bulb Clip (2 Required)
47	WPL 329314
48	WPL 327252
49	WPL 327232
50	Disconnect
51	WPL 97047
52	WPL 327481
