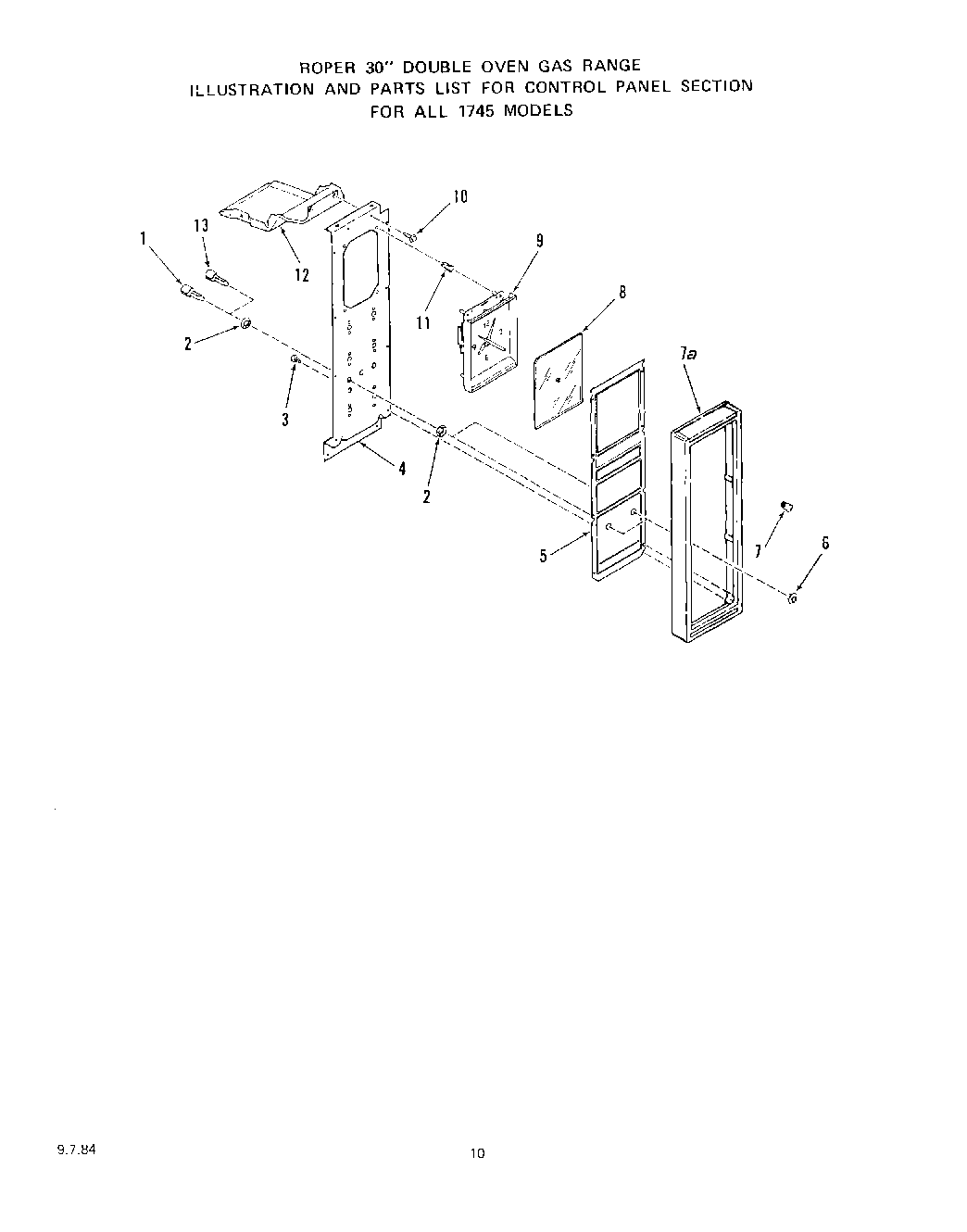

1745W0A 08 – LIT/OPTIONAL

Products

Position	Product
1	Push Switch-Fluorescent Lamp
2	Lock Nut
3	Screw 4-24×1/4“
4	Mounting Panel-Controls
5	Control Curtain (Inc`s. Key 7a)
6	Trim Nut
7	Knob-Clock (Start & Stop Time)
7a	Control Panel Trim (Included w/Key 5)
8	Lens – Clock
9	Clock w/4 Hr. Timer
10	Screw 6-32×1/4“
11	Tubular Clip (4 Req.)
12	Barrier Intrusion
13	Switches – Gas Valve
13	Push Switch – Oven Light
13	Lower
13	Upper
