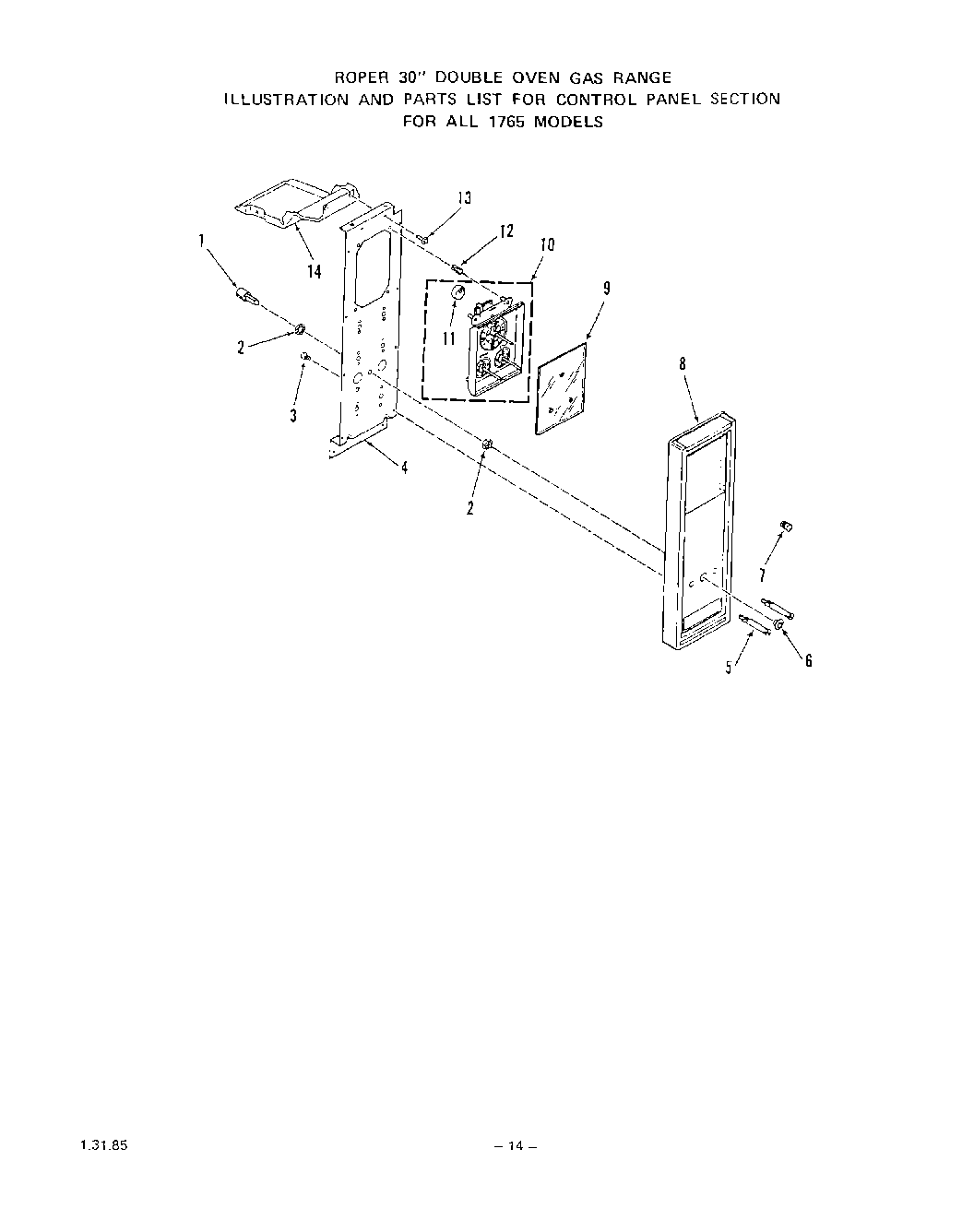

| 1 | Push Switch-Fluorescent Lamp |
| 2 | Lock Nut |
| 3 | Screw 4-24x1/4`` |
| 4 | Mounting Panel - Controls |
| 5 | Indicator Light (2 Req) |
| 6 | Trim Nut |
| 7 | Knob-Clock (Start & Stop Time) |
| 8 | Control Curtain w/Trim |
| 9 | Lens-Clock |
| 10 | Clock w/1 Hr. Timer (Inc`s. Key 11) |
| 11 | Clock Motor |
| 12 | Tubular Clip (4 Req.) |
| 13 | Screw 6-32x1/4`` |
| 14 | Barrier Intrusion |
