1833^0A 08 – LIT/OPTIONAL

Products

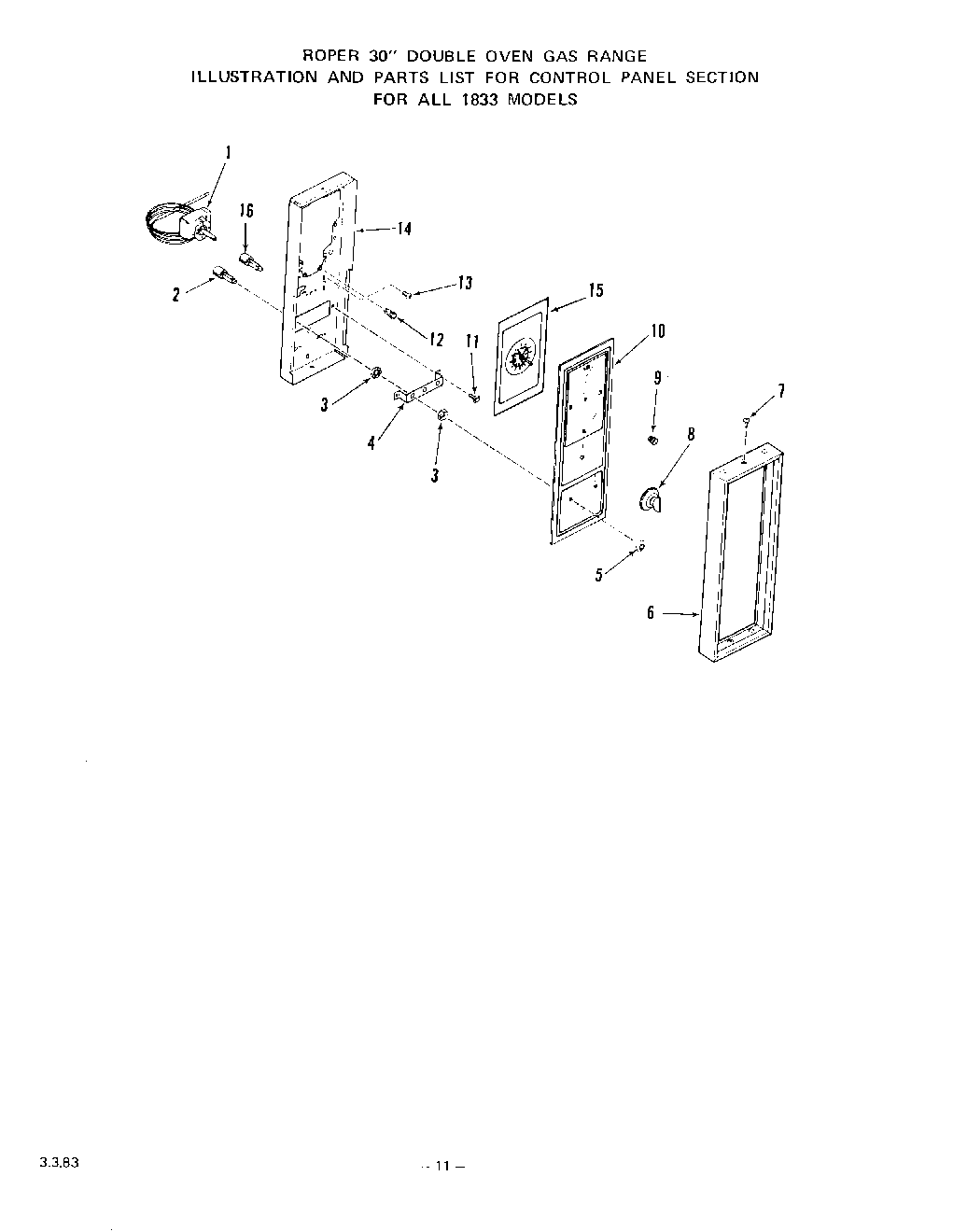

Position	Product
1	Thermostat
2	Push Switch – Oven Light
3	Lock Nut
4	bracket-switch
5	Trim Nut
6	Frame-Control Panel
7	Screw 10-32 x 1/2“
8	Knob-Thermostat
9	Knob-Clock (Start & Stop Time)
10	Glass-Control Panel
11	WP112432 Whirlpool Nut Assembly
12	Tubular Clip (4 Req.)
13	WPL 78565
14	Mounting Panel-Controls
15	Handle, Latch
16	Push Switch (Fluorescent Light)
