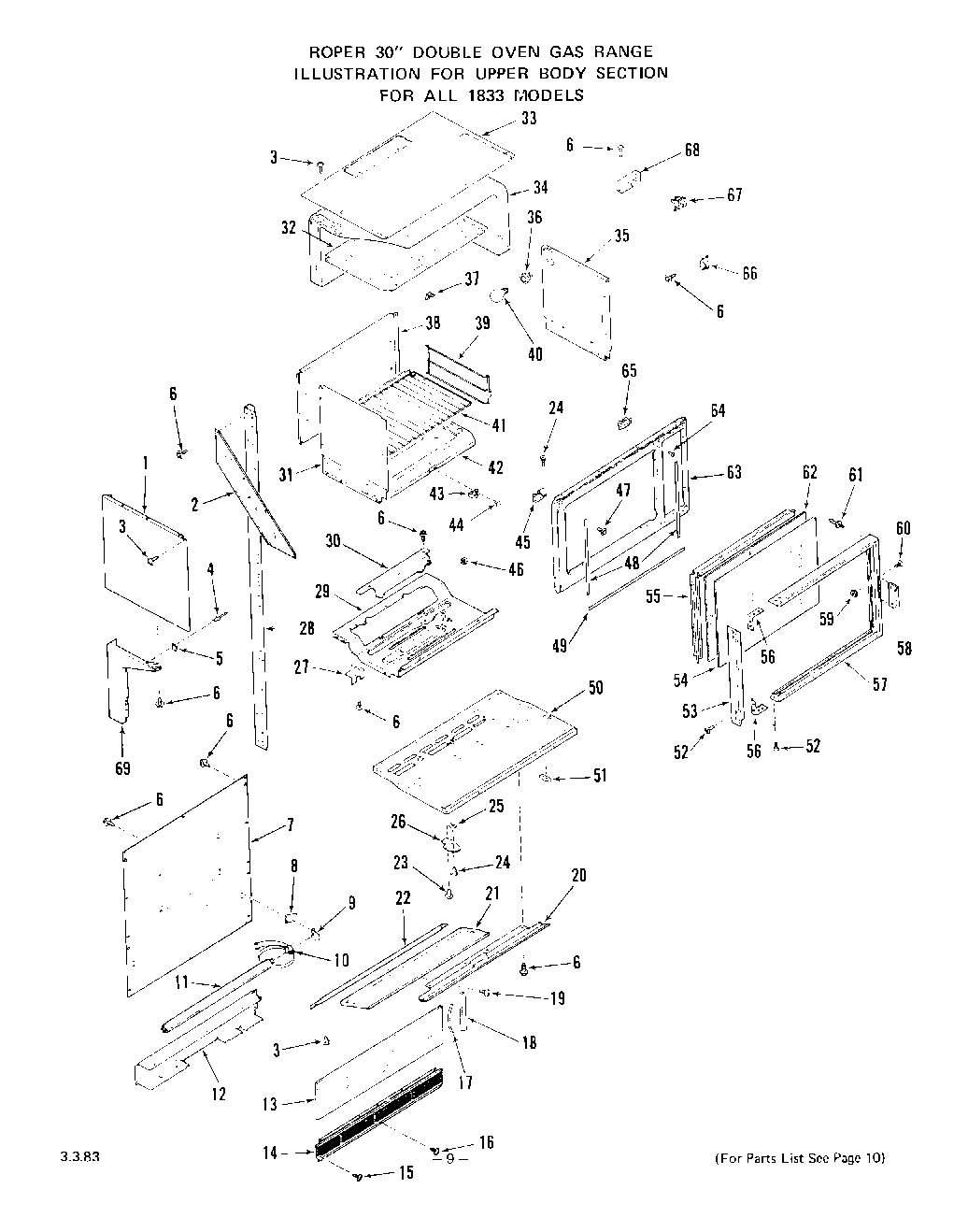

1833W0A 07 – CONTROL PANEL

Products

Position	Product
1	White – Right
1	Almond-Left
1	Golden Wheat-Left
1	White – Left
1	Almond – Right
1	Golden Wheat-Right
2	Brace-Cabinet Side (Lt. or Rt.)
3	Screw 6-32×3/8“
4	Pop Rivet
5	Retainer
6	WP112432 Whirlpool Nut Assembly
7	Wire Cover
8	Shield-Wire
9	Bracket-Fluorescent Lamp (Right)
10	Holder-Fluorescent Lamp (Left)
10	Holder-Fluorescent Lamp (Right)
11	Fluorescent Lamp (20 W – 24“)
12	Wire Cover-Fluorescent Lamp
13	Fluorescent Lamp Glass
14	WPL 324393
15	Screw 6-32 x 3/8“
16	Screw 6-32 x 1/2“
17	Spring – Lamp Glass End Trim (Lt or Rt)
18	End Trim – Lamp Glass (Lt or Rt)
19	Screw 6-32 x 1/2“
20	Almond
20	Golden Wheat
20	White
21	WPL 321663
21	WPL 321660
21	WPL 321664
22	Almond
22	White
22	Golden Wheat
23	Screw 10-32 x 5/8“
24	Hinge Pin
25	Washer
26	lower hinge-oven door
27	Bracket-Oven Orifice
28	WPL 324058
29	baffle-oven burner
30	Access Plate
31	Oven Side-Left
32	Oven Top
33	Almond
33	Golden Wheat
33	White
34	Insulation-Sides, Top & Back (1 Piece)
35	oven
36	Holder-Oven Lamp Bulb
37	Thermostat Bulb Clip (2 Required)
38	WPL 305541
39	WPL 305628
40	Oven Lamp Bulb
41	WPL 305629
42	WPL 288655
43	WPL 325485
44	WPL 99139
45	WPL 281781
46	WPL 98761
47	WPL 321162
48	WPL 292912
49	WPL 292913
50	WPL 323869
51	WPL 324159
52	WPL 102559
53	WPL 281846
54	WPL 308010
55	WPL 281992
56	WPL 292907
57	WPL 281845
58	WPL 293051
59	Keps Nut 8-32
60	WPL 235134
61	WPL 299263
62	WPL 293049
63	WPL 323873
64	WPL 97411
64	WPL 78565
65	WPL 97003
66	Ballast
67	WPL 109180
68	WPL 293747
69	WPL 325293
69	WPL 325292
69	WPL 325287
69	WPL 325286
69	WPL 325283
69	WPL 325289
