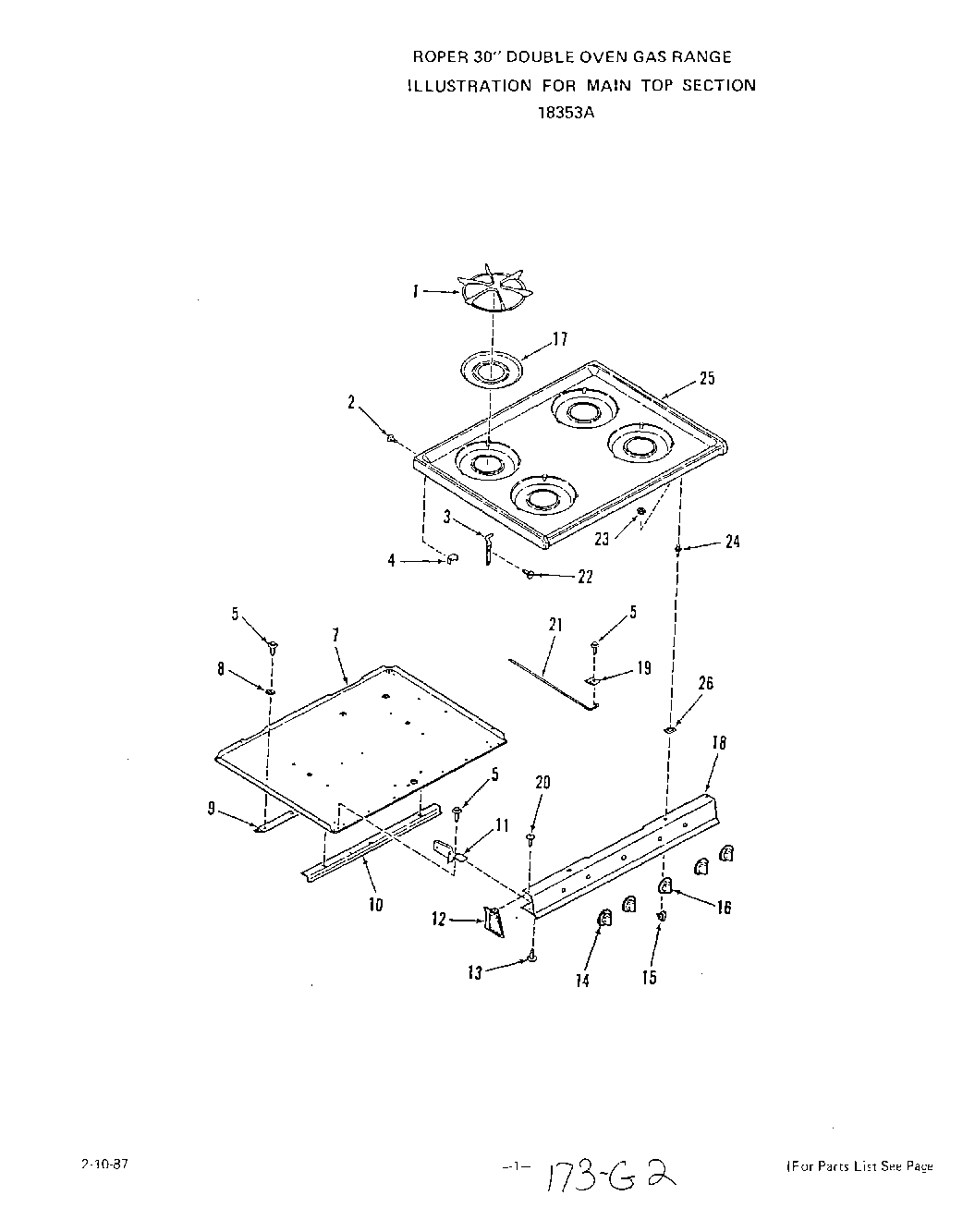

1835^3A 02 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
2	Screw-10-32×1/2“
3	hinge-main top hinge (lt. or rt.
4	bracket-main top hinge (lt. or rt.)
4	Right
4	Left
5	Screw 10-16×7/16“
7	Burner Box Bottom
8	Washer
9	Rear Stiffener-Burner Box Bottom
10	Front Stiffener-Burner Box Bottom
11	Left
11	Right
11	Bracket-Manifold Panel
12	End Cap
12	Left
12	Right
13	Screw 10ABx1/2“
14	Knob-Gas Valve (4 Reg)
15	Catch-Main Top Strike (2 Required)
16	Knob-Thermostat
17	Spill Bowl
18	Manifold Panel
19	Clamp
21	Support Rod-Main Top
22	screw 10-32×3/4“
23	Keps Nut 8-32
24	Screw 10-32×3/8“
25	Almond
25	White
25	Main Top
26	Washer
