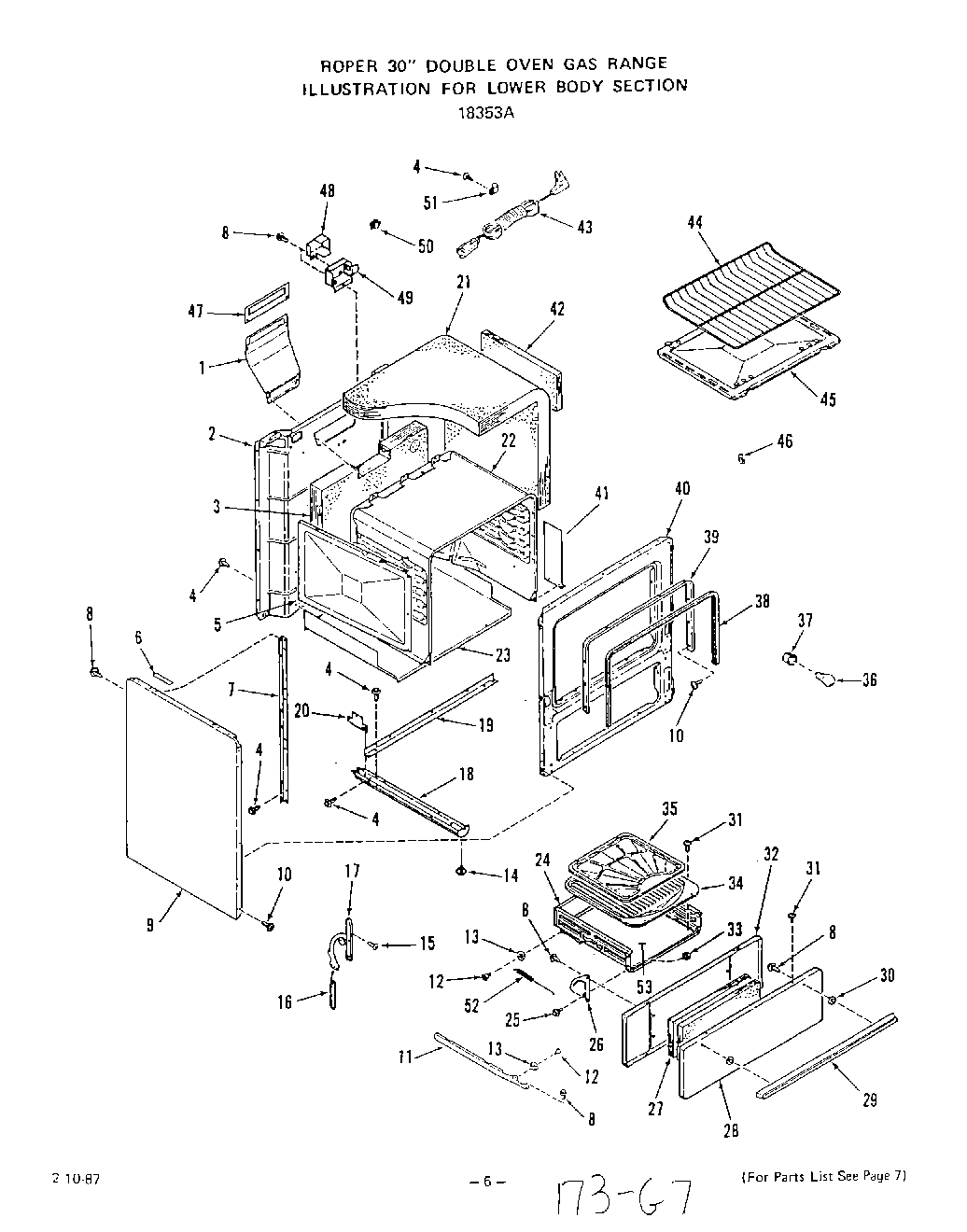

| 1 | Flue Deflector |
| 2 | Main Back |
| 3 | Insulation-Oven Back |
| 4 | WP112432 Whirlpool Nut Assembly |
| 5 | retainer-insulation (lt. or rt.) |
| 6 | Spacer-Main Top (2 Req) |
| 7 | s |
| 8 | Screw 10-16x7/16`` |
| 9 | Almond |
| 9 | White |
| 9 | Body Side (Lt. or Rt.) |
| 10 | Screw 10ABx1/2`` |
| 11 | Broiler Drawer Guide (Inc`s. Keys 12 & 13) |
| 11 | WP691371 Whirlpool Belt |
| 11 | Right |
| 12 | Shoulder Rivet |
| 13 | Roller |
| 14 | Leg Leveler (4 Req) |
| 15 | Screw 10-32 x 5/8`` |
| 16 | spring-oven door (lt. or rt.) |
| 17 | Hinge-Oven Door (Left) |
| 17 | Hinge-Oven Door (Right) |
| 17 | Hinge-Oven Door |
| 18 | Base w/Leg Levelers (Lt. or Rt.) |
| 19 | Strap-Main Back & Base |
| 20 | Left |
| 20 | bracket-support & base |
| 20 | Right |
| 21 | Insulation-Oven Top & Sides (1 Piece) |
| 22 | Oven Body |
| 23 | Bottom-Main |
| 24 | Drawer-Broiler (Inc`s. 12,13) (14451A Models) |
| 25 | Bolt-Shoulder |
| 26 | Hinge-Broiler Drawer |
| 26 | Hinge-Broiler Drawer (Lt. or Rt.) (Left) |
| 26 | Hinge-Broiler Drawer (Lt. or Rt.) (Right) |
| 28 | White |
| 28 | Almond |
| 28 | front panel-broiler door |
| 29 | Handle-Broiler Door |
| 30 | spacer-handle |
| 31 | Screw-10-32x1/2`` |
| 33 | Keps Nut 10-24 |
| 34 | Lining-Broiler Door (14451A Models) |
| 35 | WPL 331588 |
| 36 | Oven Lamp Bulb |
| 37 | Holder-Oven Lamp Bulb |
| 38 | WPL 326047 |
| 39 | main chassis (almond) |
| 40 | WPL 332686 |
| 41 | WPL 328984 |
| 42 | W10820036 Whirlpool Door Switch Kit |
| 43 | Range Service Cord |
| 44 | WPL 326068 |
| 45 | WPL 327084 |
| 46 | Thermostat Bulb Clip (2 Required) |
| 47 | WPL 329314 |
| 48 | WPL 327252 |
| 49 | WPL 327232 |
| 50 | Disconnect |
| 51 | Clip |
| 52 | WPL 327481 |
| 53 | WPL 331554 |
