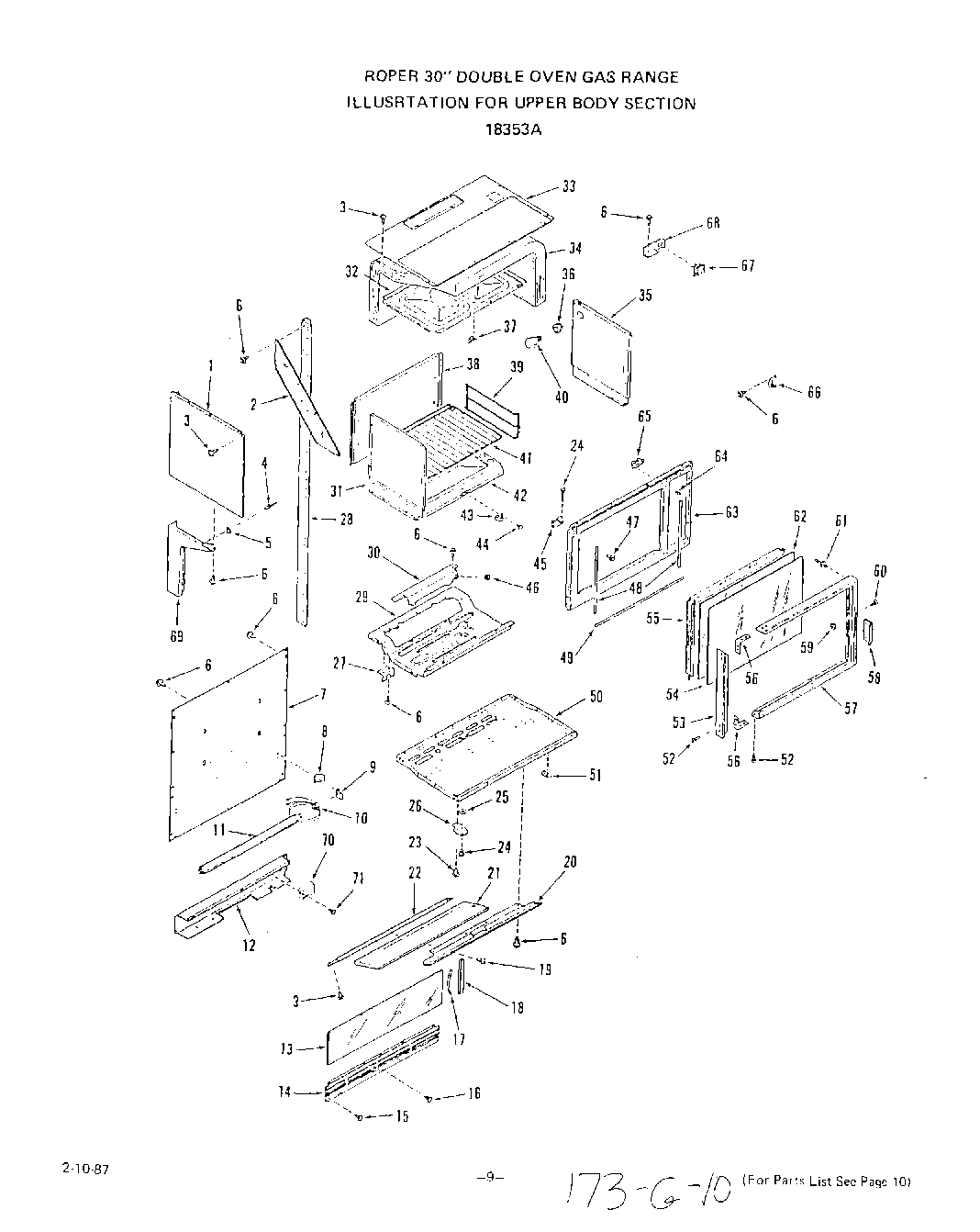

1835^3A 08 – UPPER BODY

Products

Position	Product
1	Almond-Left
1	White – Left
1	Almond – Right
1	White – Right
1	Upper Oven Body Side
2	brace-cabinet side (lt. or rt.)
3	Screw 6-32×3/8“
4	Pop Rivet
5	Retainer
6	screw 10-32×7/16“
7	Wire Cover
8	Shield-Wire
9	Bracket-Fluorescent Lamp (Right)
10	Holder-Fluorescent Lamp
10	Right
10	Left
11	Fluorescent Lamp (20 W – 24“)
12	Wire Cover-Fluorescent Lamp
13	Fluorescent Lamp Glass
14	lower retainer-fluorescent lamp glass
15	Screw 6-32 x 3/8“
16	Screw 6-32 x 1/2“
17	Spring – Lamp Glass End Trim (Lt or Rt)
18	End Trim – Lamp Glass (Lt or Rt)
19	Screw 6-32 x 1/2“
20	White
20	Almond
20	trim-filter
21	White
21	Cover-Vent
21	Almond
22	upper retainer-lamp glass
22	White
22	Almond
23	Screw 10-32 x 5/8“
24	Hinge Pin
25	Washer
26	lower hinge-oven door
27	Bracket-Oven Orifice
28	support-upper oven (lt. or rt.)
29	baffle-oven burner
30	Access Plate
31	Oven Side-Left
32	Oven Top
33	Almond
33	Oven Cabinet Top
33	White
34	insulation-side, top & back (1 piece)
35	oven
36	Holder-Oven Lamp Bulb
37	Thermostat Bulb Clip (2 Required)
38	WPL 305541
39	WPL 305628
40	Oven Lamp Bulb
41	WPL 305629
42	WPL 288655
43	WPL 325485
44	WPL 99139
45	WPL 281781
46	WPL 98761
47	WPL 321162
48	WPL 292912
49	WPL 292913
50	WPL 323869
51	WPL 324157
52	WPL 102559
53	WPL 281846
54	WPL 308010
55	WPL 281992
56	WPL 292907
57	WPL 281845
58	WPL 293051
59	Keps Nut 8-32
60	WPL 235134
61	WPL 299263
62	WPL 293049
63	WPL 331876
64	WPL ARI8666A74
64	WPL 78565
64	WPL 97411
65	WPL 97003
66	Ballast
67	WPL 109180
68	WPL 293747
69	WPL 325293
69	WPL 325287
69	WPL 325289
69	WPL 325283
69	WPL ARI8667A66
70	Module – Spark Igniter
71	Screw 6-20×3/8“
