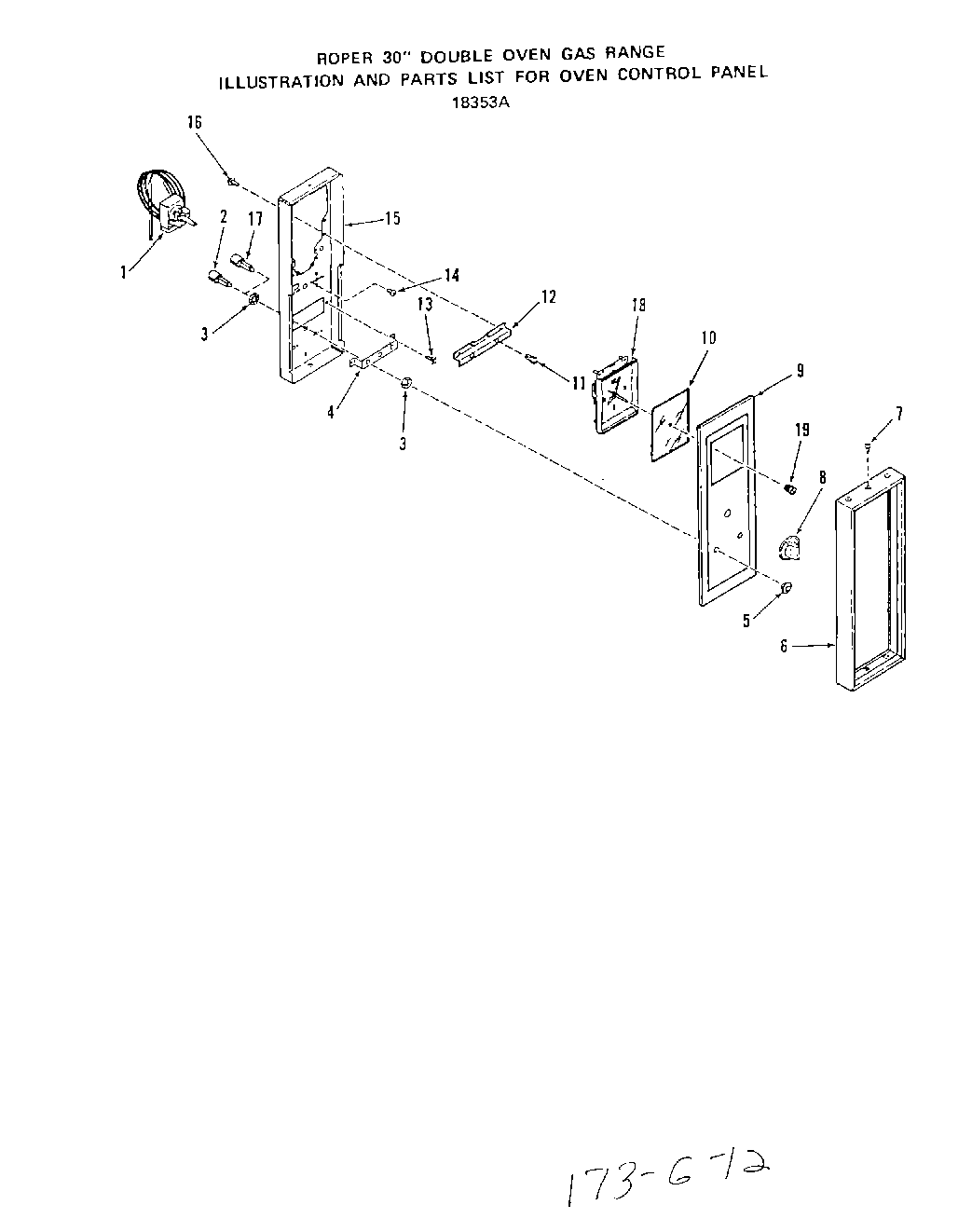

1835^3A 09 – OVEN CONTROL PANEL

Products

Position	Product
	xWire Harness
1	Thermostat-Upper
2	Push Switch - Oven Light
3	Lock Nut
4	bracket-switch
5	Trim Nut
6	Frame-Control Panel
7	Screw-10-32x1/2``
8	Knob-Upper Oven Thermostat
9	Control Curtain
10	Lens - Clock
11	Tubular Clip (4 Req.)
12	Bracket-Clock (2 Req)
13	Screw 10-32x3/8``
14	G.M. Screw 8-32x3/16``
15	Mounting Panel-Controls
16	Screw 8 - 32x3/8``
17	Push Switch (Fluorescent Light)
18	Clock w/4 Hr. Timer
19	Switches - Gas Valve
19	Lower
19	Knob-Clock
19	Upper
