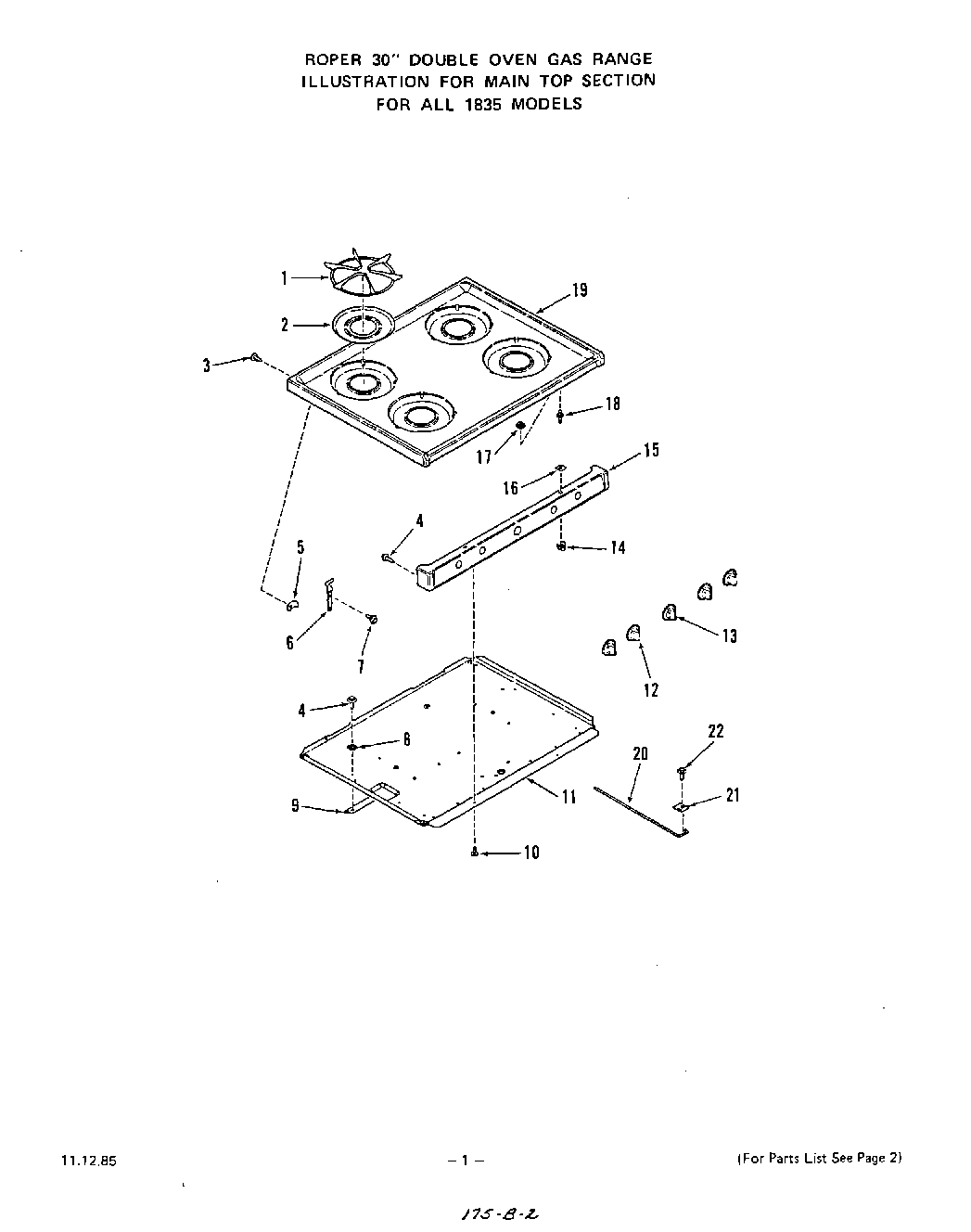

1835W0A 02 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
2	Spill Bowl
3	Screw-10-32×1/2“
4	Screw 10-16×7/16“
5	bracket-main top hinge (lt. or rt.)
6	Hinge-Main Top
6	Right
6	Left
7	WPL 321162
8	Washer
9	Rear Stiffener-Burner Box Bottom
9	Front Stiffener-Burner Box Bottom
9	Stiffener-Burner Box Bottom
10	Screw 10-32×3/8“
11	All 18352A Models
11	All 18350A & 1A Models
11	Burner Box Bottom
12	Knob-Gas Valve (4 Req)
13	Knob-Thermostat
14	Catch-Main Top Strike (2 Required)
15	Manifold Panel
15	Panel-Manifold (White)
15	Manifold Panel (Almond)
16	Washer
17	Keps Nut 8-32
18	Strike-Main Top (2 Required)
19	White
19	Main Top
19	Almond
20	Support Rod-Main Top
21	Clamp
22	WPL 316365
