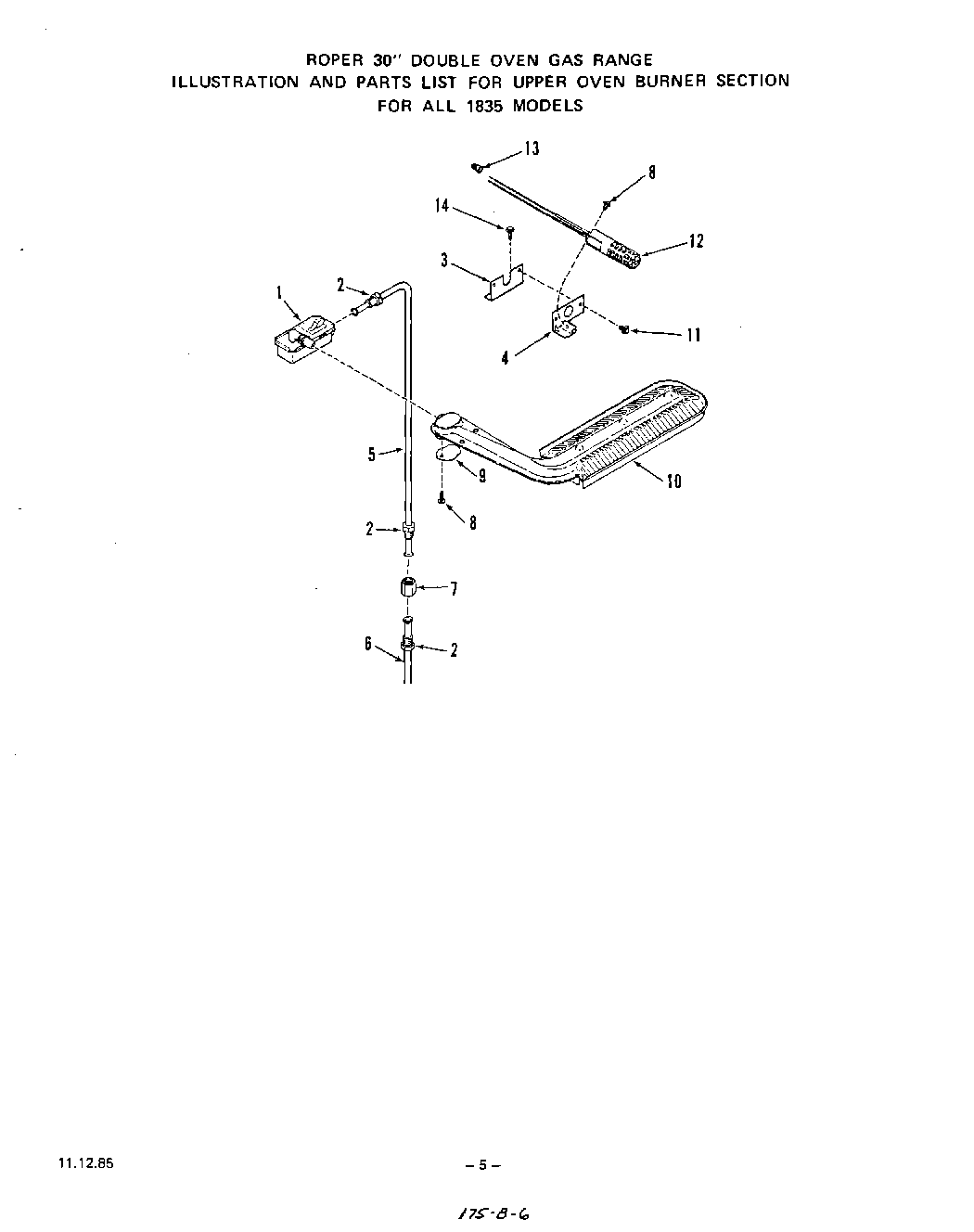

1835W0A 05 – UPPER OVEN BURNER

1835W0A 05 – UPPER OVEN BURNER

Written by

in

1835W0A 05 – UPPER OVEN BURNER

Products

PositionProduct
1Control Valve
2Inverted Nut 3/8“
3Bracket-Igniter
4Bracket-Igniter
5Tubing 3/8“
6Tubing 3/8“ (Shut Off to Union)
7Union Connector 3/8“
8Screw 10 – 32 x 1/4“
9Air Shutter
10All 18350A & 1A Models
10Oven Burner Complete
10Oven Burner Asm
11Screw 10ABx3/8“
12Igniter – Bake or Broil
13Wire Connector (4 Req)
14WP112432 Whirlpool Nut Assembly
