1835W1A 05 – UPPER OVEN BURNER – Aparts

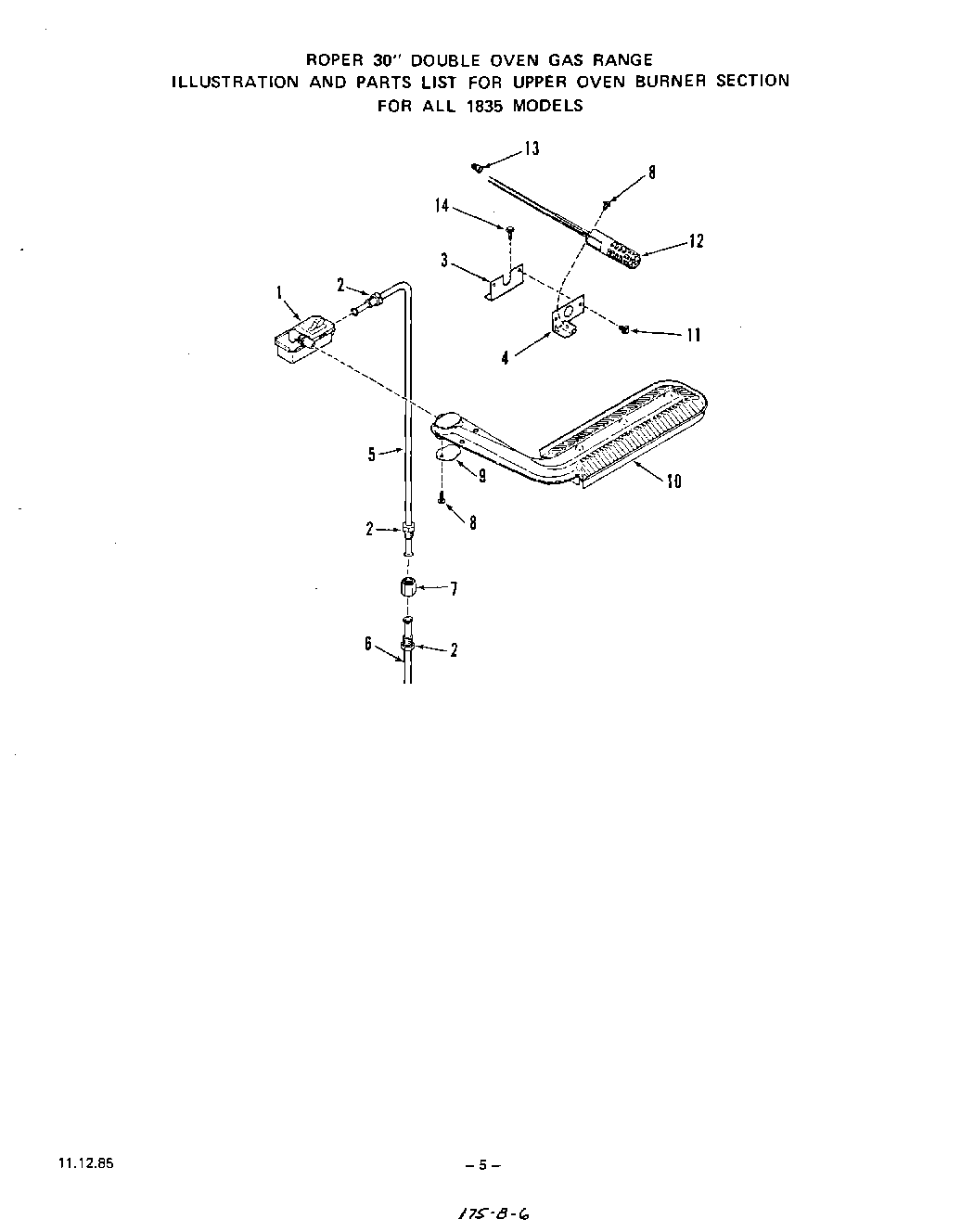

1835W1A 05 – UPPER OVEN BURNER

Products

Position	Product
1	Control Valve
2	Inverted Nut 3/8``
3	Bracket-Igniter
4	Bracket-Igniter
5	Tubing 3/8``
6	Tubing 3/8`` (Shut Off to Union)
7	Union Connector 3/8``
8	Screw 10 - 32 x 1/4``
9	Air Shutter
10	All 18350A & 1A Models
10	Oven Burner Complete
10	Oven Burner Asm
11	Screw 10ABx3/8``
12	Igniter - Bake or Broil
13	Wire Connector (4 Req)
14	WP112432 Whirlpool Nut Assembly
