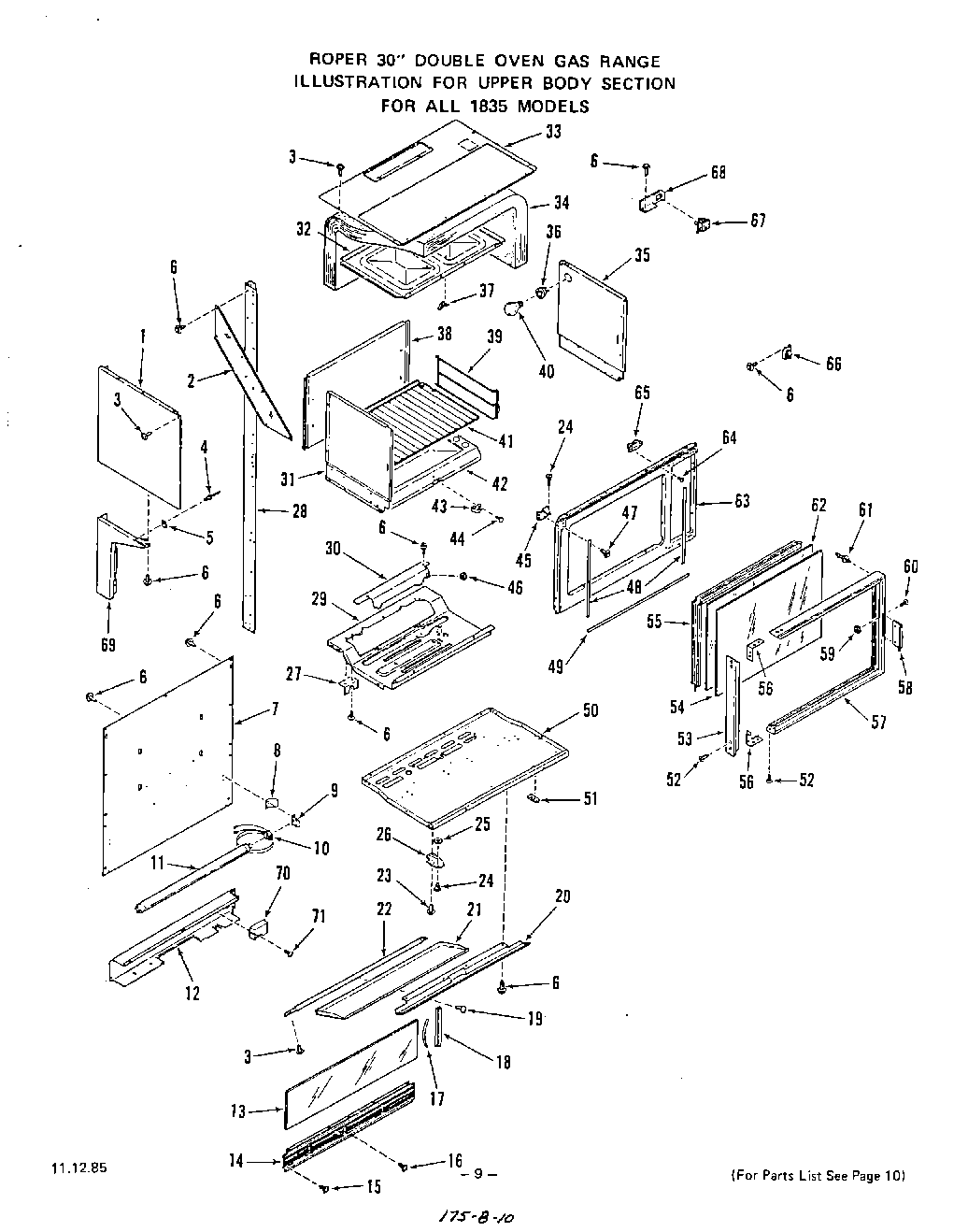

| 1 | White - Right |
| 1 | Almond - Right |
| 1 | White - Left |
| 1 | Almond-Left |
| 1 | Upper Oven Body Side |
| 2 | brace-cabinet side (lt. or rt.) |
| 3 | Screw 6-32x3/8`` |
| 4 | Pop Rivet |
| 5 | Retainer |
| 6 | WP112432 Whirlpool Nut Assembly |
| 7 | Wire Cover |
| 8 | Shield-Wire |
| 9 | Bracket-Fluorescent Lamp (Right) |
| 10 | Right |
| 10 | Left |
| 10 | Holder-Fluorescent Lamp |
| 11 | Fluorescent Lamp (20 W - 24``) |
| 12 | Wire Cover-Fluorescent Lamp |
| 13 | Fluorescent Lamp Glass |
| 14 | lower retainer-fluorescent lamp glass |
| 15 | Screw 6-32 x 3/8`` |
| 16 | Screw 6-32 x 1/2`` |
| 17 | Spring - Lamp Glass End Trim (Lt or Rt) |
| 18 | End Trim - Lamp Glass (Lt or Rt) |
| 19 | Screw 6-32 x 1/2`` |
| 20 | White |
| 20 | Almond |
| 20 | trim-filter |
| 21 | Almond |
| 21 | White |
| 21 | Cover-Vent |
| 22 | upper retainer-lamp glass |
| 22 | White |
| 22 | Almond |
| 23 | Screw 10-32 x 5/8`` |
| 24 | Hinge Pin |
| 25 | Washer |
| 26 | lower hinge-oven door |
| 27 | Bracket-Oven Orifice |
| 28 | support-upper oven (lt. or rt.) |
| 29 | baffle-oven burner |
| 30 | Access Plate |
| 31 | Oven Side-Left |
| 32 | Oven Top |
| 33 | White |
| 33 | Oven Cabinet Top |
| 33 | Almond |
| 34 | Insulation-Sides, Top & Back (1 Piece) |
| 35 | oven |
| 36 | Holder-Oven Lamp Bulb |
| 37 | Thermostat Bulb Clip (2 Required) |
| 38 | WPL 305541 |
| 39 | WPL 305628 |
| 40 | Oven Lamp Bulb |
| 41 | WPL 305629 |
| 42 | WPL 288655 |
| 43 | WPL 325485 |
| 44 | WPL 99139 |
| 45 | WPL 281781 |
| 46 | WPL 98761 |
| 47 | WPL 321162 |
| 48 | WPL 292912 |
| 49 | WPL 292913 |
| 50 | WPL 323869 |
| 51 | WPL 324159 |
| 52 | WPL 102559 |
| 53 | WPL 281846 |
| 54 | WPL 308010 |
| 55 | WPL 281992 |
| 56 | WPL 292907 |
| 57 | WPL 281845 |
| 58 | WPL 293051 |
| 59 | Keps Nut 8-32 |
| 60 | WPL 235134 |
| 61 | WPL 299263 |
| 62 | WPL 293049 |
| 63 | WPL 331876 |
| 63 | WPL 323873 |
| 63 | WPL ARI8723A16 |
| 64 | WPL ARI8724A87 |
| 64 | WPL 97411 |
| 64 | WPL 78565 |
| 65 | WPL 97003 |
| 66 | Ballast |
| 67 | WPL 109180 |
| 68 | WPL 293747 |
| 69 | WPL 325283 |
| 69 | WPL ARI8725A85 |
| 69 | WPL 325289 |
| 69 | WPL 325287 |
| 69 | WPL 325293 |
| 70 | Module - Spark Igniter |
| 71 | Screw 6-20x3/8`` |
