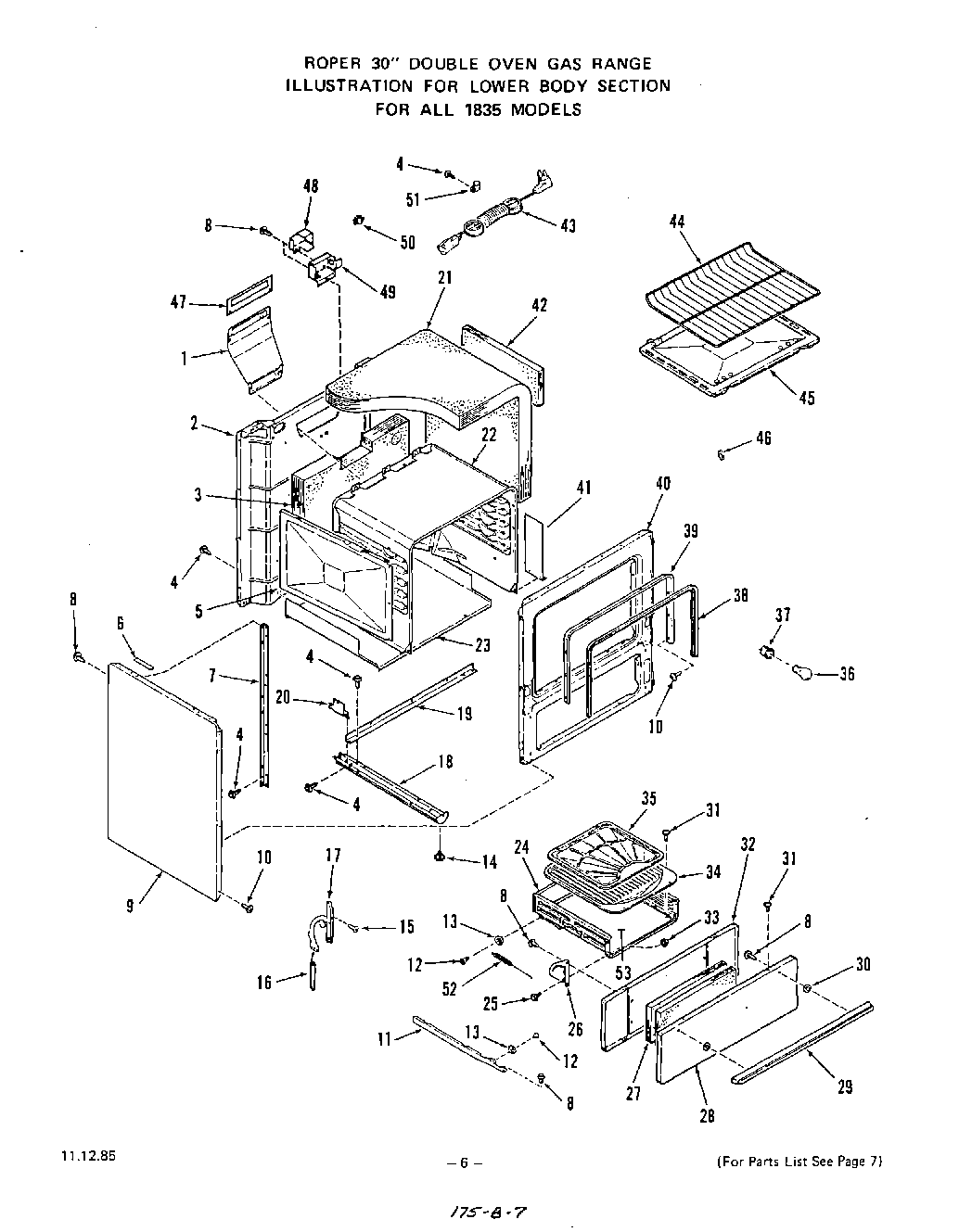

1835W2A 06 – LOWER BODY

1835W2A 06 – LOWER BODY

Written by

in

1835W2A 06 – LOWER BODY

Products

Position	Product
1	Flue Deflector
2	Main Back
3	Insulation-Oven Back
4	WP112432 Whirlpool Nut Assembly
5	retainer-insulation (lt. or rt.)
6	Spacer-Main Top (2 Req)
7	s
8	Screw 10-16×7/16“
9	Almond
9	Body Side (Lt. or Rt.)
9	White
10	Screw 10ABx1/2“
11	WP691371 Whirlpool Belt
11	Right
11	Broiler Drawer Guide (Inc`s. Keys 12 & 13)
12	Shoulder Rivet
13	Roller
14	Leg Leveler (4 Req)
15	Screw 10-32 x 5/8“
16	spring-oven door (lt. or rt.)
17	Hinge-Oven Door (Left)
17	Hinge-Oven Door (Right)
17	Hinge-Oven Door
18	Base w/Leg Levelers (Lt. or Rt.)
19	Strap-Main Back & Base
20	bracket-support & base
20	Right
20	Left
21	Insulation-Oven Top & Sides (1 Piece)
22	Oven Body
23	Bottom-Main
24	Drawer-Broiler (Inc`s. 12,13) (14450A Models)
24	Broiler Drawer (Inc`s. Keys 12 & 13)
24	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
25	Bolt-Shoulder
26	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
26	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
26	Hinge-Broiler Drawer
28	Almond
28	White
28	Front Panel-Broiler Door
29	Handle-Broiler Door
30	spacer-handle
31	Screw-10-32×1/2“
32	Broiler Door Lining
32	Lining-Broiler Door (14451A Models)
32	Lining-Broiler Door (14450A Models)
33	Keps Nut 10-24
34	Broiler Pan
34	Broiler Pan
34	Pan-Broiler (14451A M
35	Broiler Pan Grid
35	Broiler Pan Grid
35	WPL 331588
36	Oven Lamp Bulb
37	Holder-Oven Lamp Bulb
38	WPL 326047
39	main chassis (almond)
40	WPL ARI8744A10
40	WPL 327279
40	WPL 332686
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
43	Range Service Cord
44	WPL 326068
45	WPL 327084
46	Thermostat Bulb Clip (2 Required)
47	WPL 329314
48	WPL 327252
49	WPL 327232
50	Disconnect
51	Clip
52	WPL 327481
53	WPL 329862
53	WPL 331554
53	WPL ARI8745A92
