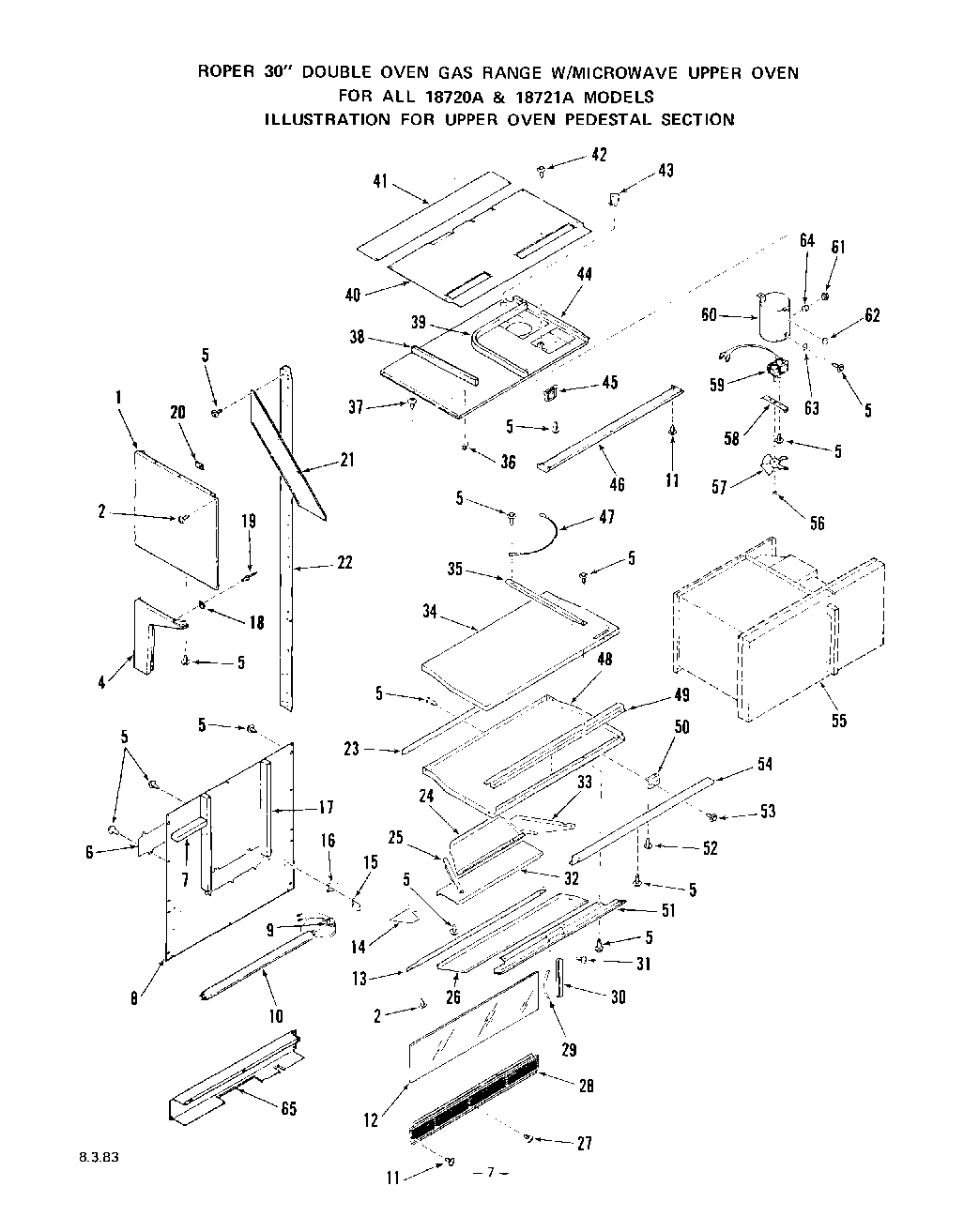

1872W0A 06 – UPPER OVEN PEDESTAL

1872W0A 06 – UPPER OVEN PEDESTAL

Written by

in

1872W0A 06 – UPPER OVEN PEDESTAL

Products

PositionProduct
1Upper Oven Body Side (Golden Wheat-Right)
1Upper Oven Body Side (White-Right)
1Upper Oven Body Side (Golden Wheat-Left)
1Upper Oven Body Side (Almond-Right)
1Upper Oven Body Side (Almond-Left)
1Upper Oven Body Side (Avocado-Left)
1Upper Oven Body Side (Coffee-Right)
1Upper Oven Body Side (Coffee-Left)
1Upper Oven Body Side (Avocado-Right)
1Upper Oven Body Side (White-Left)
2Screw 6 – 32×3/8“
4Pedestal-Upper Oven (Avocado-Right)
4Pedestal-Upper Oven (Coffee-Left)
4Pedestal-Upper Oven (Coffee-Right)
4WPL 325293
4Pedestal – Upper Oven (White – Right)
4WPL 325292
4Pedestal-Upper Oven (Avocado-Left)
4WPL 325286
4WPL 325289
4WPL 325287
5WP112432 Whirlpool Nut Assembly
6Cover Plate
7Foam Strip
8Wire Cover
9Holder-Fluorescent Lamp (Left)
9Holder-Fluorescent Lamp (Right)
10Fluorescent Lamp (20 W – 24“)
11Screw 6-32 x 3/8“
12Fluorescent Lamp Glass
13Golden Wheat
13White
13Upper Retainer-Lamp Glass (Coffee)
13Upper Retainer-Lamp G
13Almond
14WPL 322935
14WPL 322933
15Bracket-Fluorescent Lamp (Right)
16Shield-Wire
17WPL 320696
18WPL 385523
19Pop Rivet
20WPL 320196
21WPL 324791
22WPL 324058
23WPL 320117
24WPL 322937
25WPL 322949
26WPL 321660
26WPL 321664
26WPL 321661
26WPL 321662
26WPL 321663
27Screw 6-32 x 1/2“
28WPL 324393
29Spring – Lamp Glass End Trim (Lt or Rt)
30End Trim – Lamp Glass (Lt or Rt)
31Screw 6-32 x 1/2“
32WPL 320261
33WPL 320257
34WPL 320211
35WPL 320202
36WPL 324728
37Screw-10-32×1/2“
38WPL 325029
39WPL 325030
40WPL 321676
40WPL 321675
40WPL 321674
40WPL 321673
40WPL 320240
41WPL 320476
41WPL 321370
41WPL 321372
41WPL 321669
41WPL 321671
42WPL 316365
43WPL 109180
44WPL 320243
45Ballast
46WPL 320213
47WPL 321044
48WPL 324210
49WPL 321410
50WPL 324709
51WPL 323821
51Almond
51White
51Golden Wheat
51WPL 323822
52Screw 8ABx5/8“
53Screw 10 – 32×3/8“
54WPL 320399
55WPL ARI8756A54
56WPL 320703
57WPL 311173
58WPL 320374
59WPL 320397
60WPL 324346
61Keps Nut 10-32
62WPL 232365
63WPL 832763
64WPL 324331
65WPL 323956
