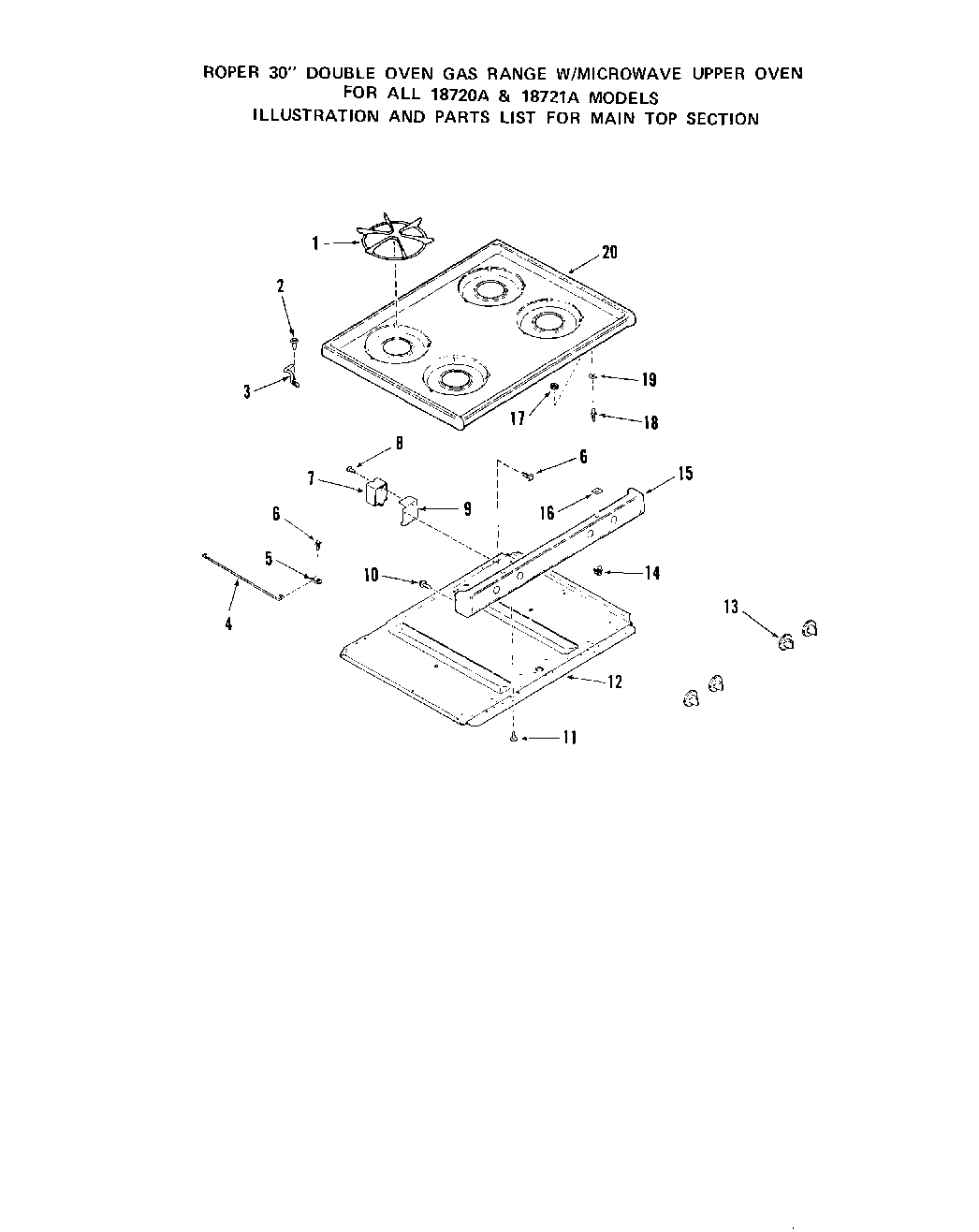

1872W1A 02 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
2	WPL 316365
3	Hinge (Left)
3	Hinge (Right)
4	Support-Main Top
5	Clip
6	WP112432 Whirlpool Nut Assembly
7	Spark Module
8	Screw 6-32 x 1/2“
9	Bracket – Spark Igniter Module
10	Screw 10 – 32 x 7/16“
11	Screw 10-32×3/8“
12	Burner Box Bottom
13	Knob – Gas Valve (4 Req)
14	Catch-Main Top Strike (2 Required)
15	Manifold Panel (White)
15	Manifold Panel (Coffee)
15	Manifold Panel (Golden Wheat)
15	Manifold Panel (Avocado)
15	Manifold Panel (Almond)
16	Washer
17	Keps Nut 8-32
18	Strike-Main Top (2 Required)
19	Washer
20	Main Top (Avocado)
20	Golden Wheat
20	White
20	Almond
20	Main Top (Coffee)
