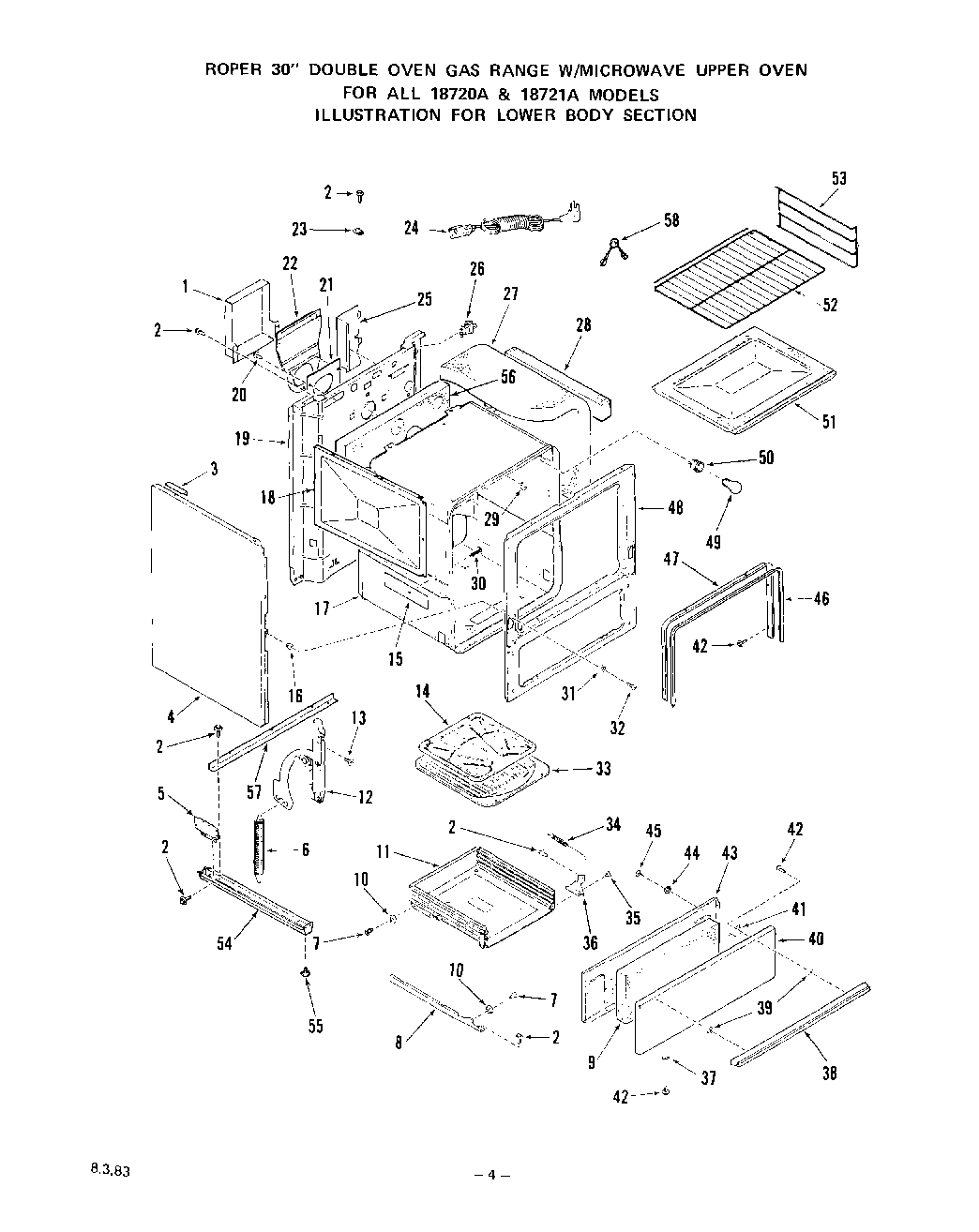

1872W1A 04 – LOWER BODY

Products

Position	Product
1	Shield – Flue Deflector
2	WP112432 Whirlpool Nut Assembly
3	Spacer-Main Top
4	Body Side (Lt. or Rt.) (Coffee)
4	Body Side-Lt. or Rt.) (White)
4	Body Side (Lt. or Rt.) (Avocado)
4	Body Side-Lt. or Rt.) (Golden Wheat)
4	Body Side-Lt. or Rt.) (Almond)
5	Bracket-Support & Base (Lt. or Rt.)
6	Spring-Oven Door (Lt. or Rt.)
7	Shoulder Rivet
8	Right
8	WP691371 Whirlpool Belt
10	Roller
11	Broiler Drawer (Inc`s. 136 & 140)
12	Left
12	Right
13	Screw 10-32 x 5/8“
14	Broiler Pan Grid
15	Retainer-Insulation (Rt. or Lt.)
16	Grommet – Screw (8 Req.)
17	Oven Body
18	Retainer-Insulation (Lt. or Rt.)
19	Main Back
20	Screw 10 – 32 x 17/32“
21	Gasket-Flue Deflector
22	Flue Deflector
23	Clip
24	Range Service Cord
25	Shield – Oven Light Wire
26	Disconnect
27	Insulation – Oven Top & Sides (1 Piece)
28	W10820036 Whirlpool Door Switch Kit
29	Thermostat Bulb Clip (2 Required)
30	Dart-Button Head (2 Required)
31	Washer
32	WP303896 Whirlpool High Limit Thermostat
33	Broiler Pan
34	Spring – Broiler Door (Rt or Lt)
35	Shoulder Rivet
36	Left
36	Right
37	WPL 21067
38	WPL 286357
39	spacer-handle
40	WPL 324604
40	WPL 324603
40	WPL 324602
40	WPL 324606
40	WPL 324605
41	Spacer-Broiler Doo
42	WPL 316365
43	WPL 296332
44	Lockwasher
45	Screw 10-32×3/8“
46	WPL 296102
47	WPL 296103
48	WPL 323796
49	Oven Lamp Bulb
50	Holder-Oven Lamp Bulb
51	WPL 296070
52	WPL 305408
53	WPL 305409
54	WPL 323929
55	Leg Leveler (4 Required)
56	Insulation – Oven Back
57	WPL 323931
58	WPL 324385
