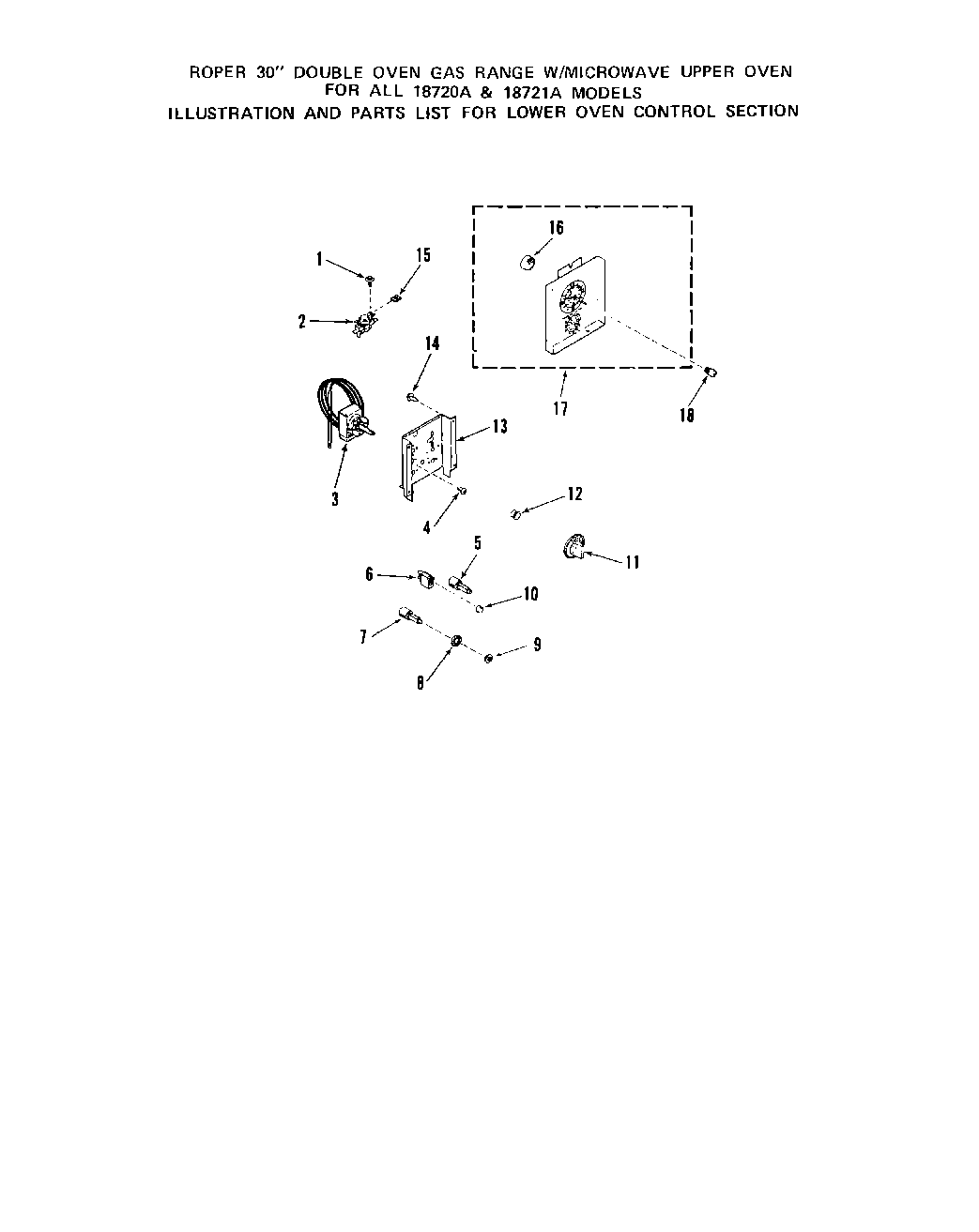

1872W1A 07 – LOWER OVEN CONTROL, LIT/OPTIONAL

Products

Position	Product
1	Screw 8-32×3/8“
2	Auxiliary Thermostat
3	Oven Thermostat
4	WPL 78565
5	Push Switch (Fluorescent Light)
6	Indicator Light
7	Push Switch – Oven Light
8	Lock Nut
9	Knurled Nut
10	Lens-Indicator Light
11	Knob – Thermostat
12	Bushing – Knob
13	Mounting Bracket-Controls
14	Screw 10-32×5/16“
15	Speed Nut 8-32
16	Clock Motor
17	Clock w/1 Hr. Timer
18	xQuick Reference Guide
18	Gas Valve Sw – All 18721A Models
18	xRepair Parts Manual
18	Wire Harness
18	Knob-Clock (Start & Stop Time)
18	xUse & Care Guide
18	xInstallation & Reference Guide
18	xCookbook – Microwave
18	Main
18	Gas Valve Switches – All 18720A Models
18	Thermostat
18	bezel control knob (4)
