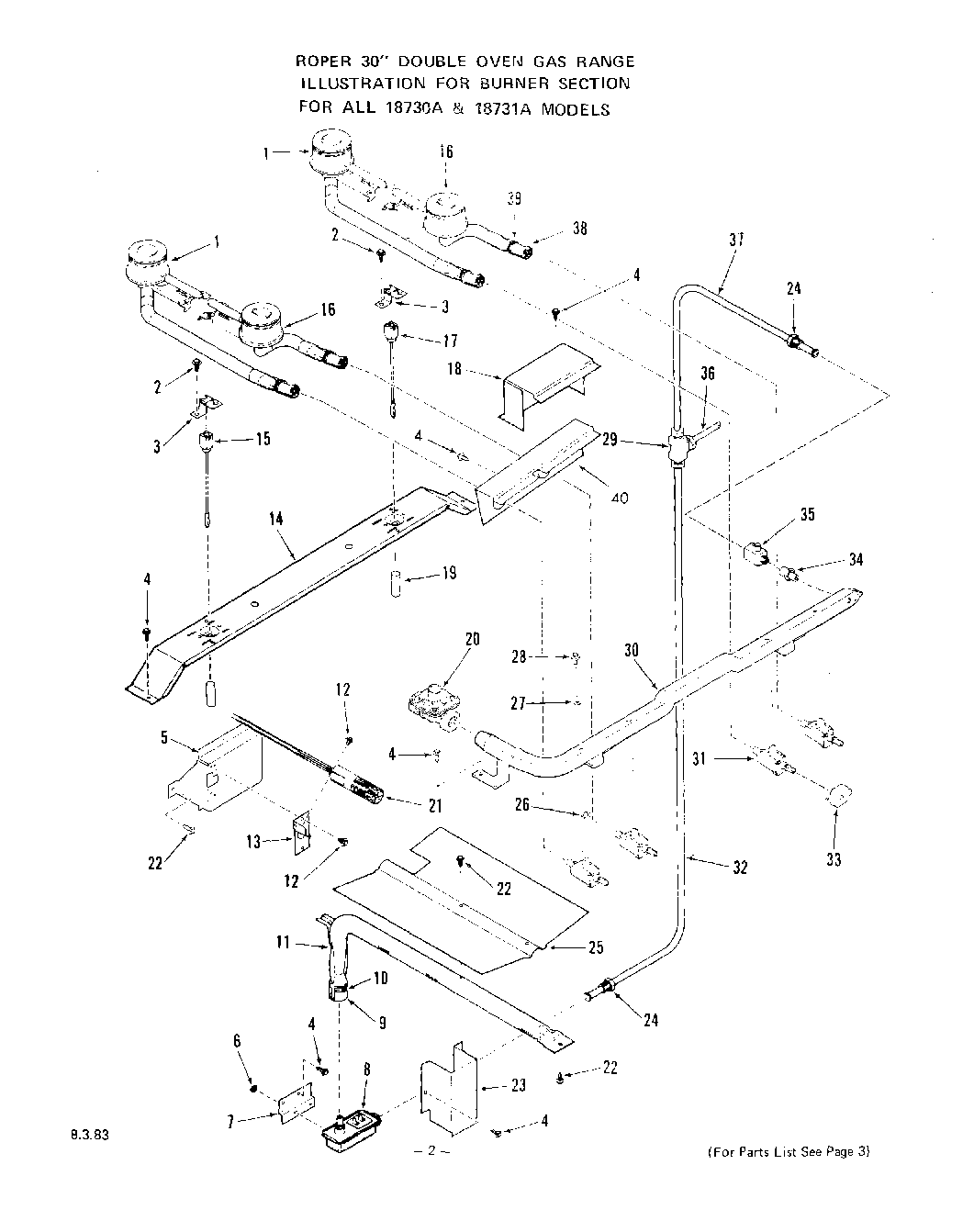

1873^0A 03 – LOWER OVEN BODY

Products

Position	Product
1	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
2	Screw 10 - 32 x 7/16``
3	panel, side l.h. (almond panel, side r.h.)
4	WP112432 Whirlpool Nut Assembly
5	Bracket - Ignitor Mounting
6	Nut 6-32
7	Bracket-Control Valve
8	Control Valve
9	Air Shutter
10	Adjustment Screw -Air Shutter
11	Oven Burner (Inc. Keys 27, 28 & 30)
12	Screw 10 - 32 x 1/4``
13	Bracket-Igniter
14	Support-Top Burner
15	Panel, Side L.H. (Platinum Panel, Side R.H.)
16	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
17	Right
18	Wire Cover-Thermostat
19	Sleeve-Igniter Wire (Lt. or Rt.)
20	Pressure Regulator
21	Igniter - Bake or Broil
22	WPL 316365
23	Cover - Ignitor Wires
24	Inverted Nut 3/8``
25	Baffle - Oven Burner
26	Silicone Rubber Gasket
27	Gasket (For 81)
28	Mounting Screw (Inc`s 86)
29	Tee 3/8``
30	Manifold Pipe
31	Gas Valve (5 Req)
32	Tubing 3/8`` (Tee to Oven Burner)
33	Switch-Gas Valve (4 Req)
34	Fitting
35	Shut Off Valve
36	Tubing 3/8`` (Tee to Upper Control Valve)
37	Tubing 3/8`` (Shut-Off Valve to Union)
38	Air Shutter
39	Adjustment Screw-Air Shutter
40	Wire Cover-Gas Valve-All 18730A Models (Left)
40	Wire Cover-Gas Valve-All 18730A Models (Right)
