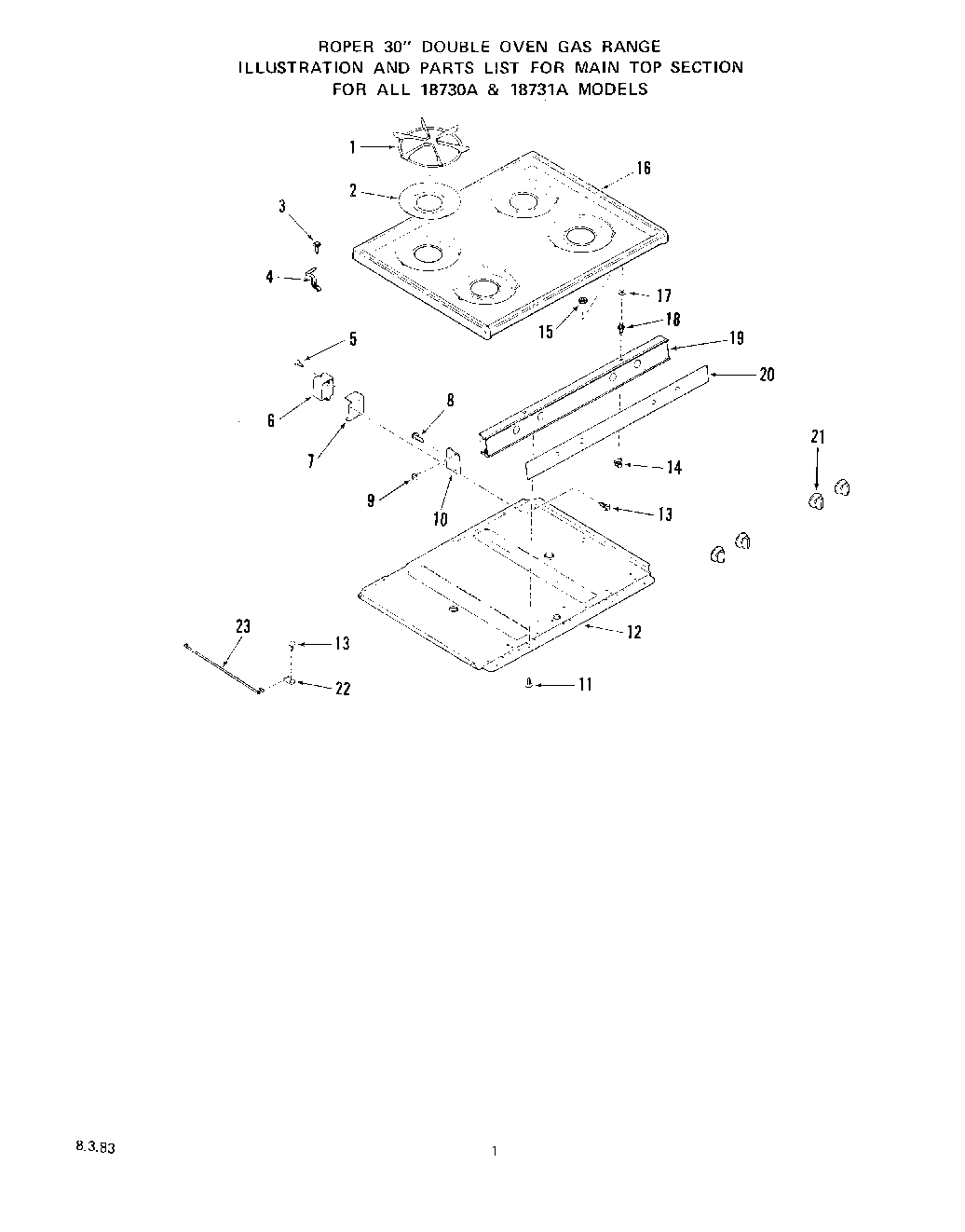

1873^1A 02 – BURNER

Products

Position	Product
1	Top Grate (4 Required)
2	Spill Bowl
3	WPL 316365
4	Hinge (Left)
4	Hinge (Right)
5	Screw 6-32 x 1/2“
6	Spark Module
7	Bracket – Spark Igniter Module
8	Screw 10 – 32 x 7/16“
9	Screw 6-32×3/8“
10	End Cap-Manifold Panel (Left)
10	End Cap-Manifold Panel (Right)
11	Screw 10-32×3/8“
12	Burner Box Bottom
13	WP112432 Whirlpool Nut Assembly
14	Catch-Main Top Strike (2 Required)
15	Keps Nut 8-32
16	Main Top (Coffee)
16	Main Top (Avocado)
16	White
16	Almond
16	Golden Wheat
17	Washer
18	Strike-Main Top (2 Required)
19	Manifold Panel
20	Trim-Manifold Panel
21	Knob-Gas Valve (4 Req)
22	Clip
23	Support-Main Top
