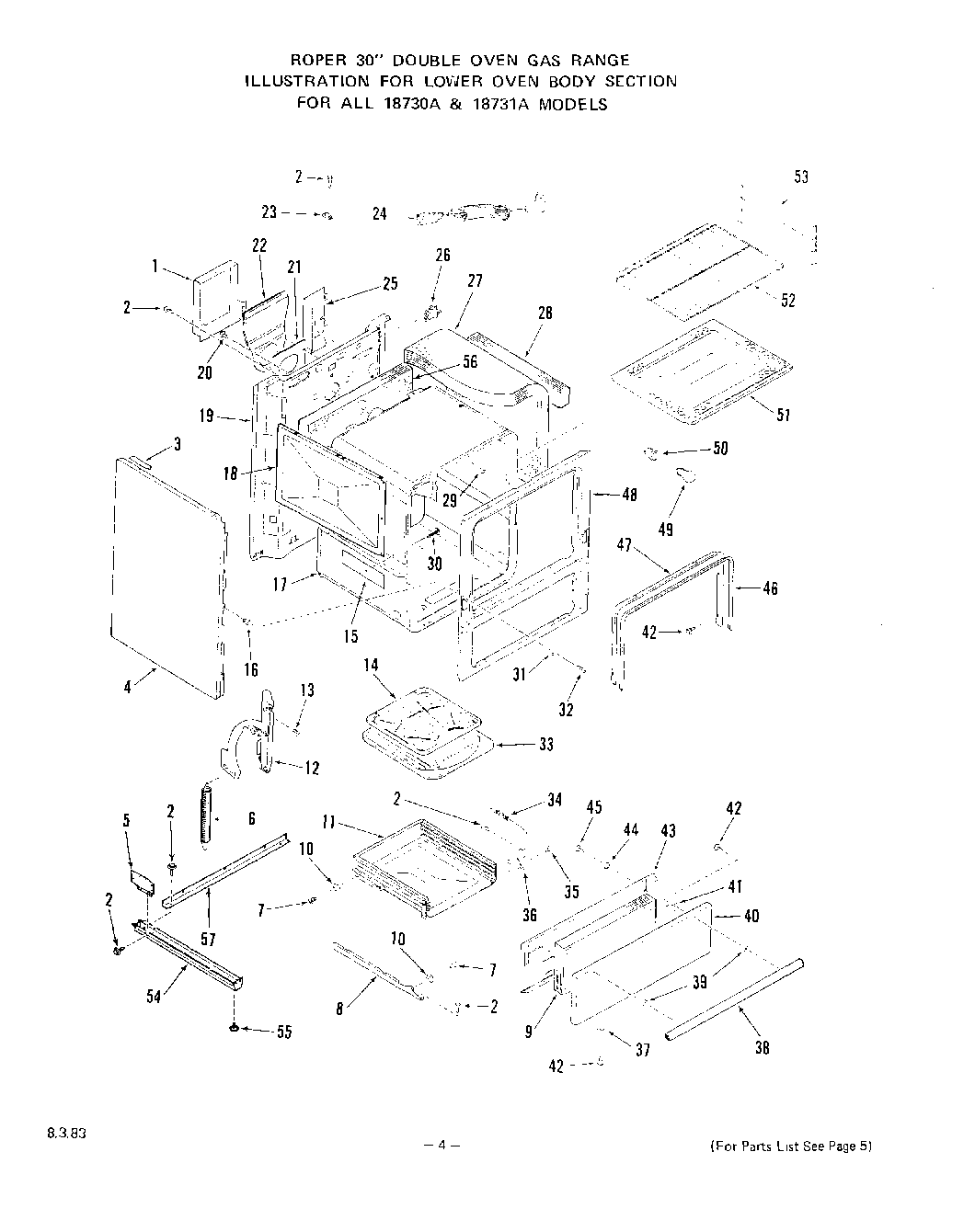

| 1 | Shield - Flue Deflector |
| 2 | WP112432 Whirlpool Nut Assembly |
| 3 | Spacer-Main Top |
| 4 | Body Side-Lt. or Rt.) (Golden Wheat) |
| 4 | Body Side-Lt. or Rt.) (White) |
| 4 | Body Side (Lt. or Rt.) (Coffee) |
| 4 | Body Side (Lt. or Rt.) (Avocado) |
| 4 | Body Side-Lt. or Rt.) (Almond) |
| 5 | Bracket-Support & Base (Lt. or Rt.) |
| 6 | Spring-Oven Door (Lt. or Rt.) |
| 7 | Shoulder Rivet |
| 8 | Right |
| 8 | WP691371 Whirlpool Belt |
| 10 | Roller |
| 11 | Broiler Drawer (Inc`s. 136 & 140) |
| 12 | Left |
| 12 | Right |
| 13 | Screw 10-32 x 5/8`` |
| 14 | Broiler Pan Grid |
| 15 | Retainer-Insulation (Rt. or Lt.) |
| 16 | Grommet - Screw (8 Req.) |
| 17 | Oven Body |
| 18 | Retainer-Insulation (Lt. or Rt.) |
| 19 | Main Back |
| 20 | Screw 10 - 32 x 17/32`` |
| 21 | Gasket-Flue Deflector |
| 22 | Flue Deflector |
| 23 | Clip |
| 24 | Range Service Cord |
| 25 | Shield - Oven Light Wire |
| 26 | Disconnect |
| 27 | Insulation - Oven Top & Sides (1 Piece) |
| 28 | W10820036 Whirlpool Door Switch Kit |
| 29 | Thermostat Bulb Clip (2 Required) |
| 30 | Dart-Button Head (2 Required) |
| 31 | Washer |
| 32 | WP303896 Whirlpool High Limit Thermostat |
| 33 | Broiler Pan |
| 34 | Spring - Broiler Door (Rt or Lt) |
| 35 | Shoulder Rivet |
| 36 | Left |
| 36 | Right |
| 37 | WPL 21067 |
| 38 | Handle-Broiler Door |
| 39 | spacer-handle |
| 40 | knob, control |
| 40 | WPL 308975 |
| 40 | WPL 308976 |
| 40 | Front Panel-Broiler |
| 40 | WPL 308977 |
| 41 | Spacer-Broiler Doo |
| 42 | WPL 316365 |
| 43 | WPL 296332 |
| 44 | Lockwasher |
| 45 | Screw 10-32x3/8`` |
| 46 | WPL 296102 |
| 47 | WPL 296103 |
| 48 | WPL 323796 |
| 49 | Oven Lamp Bulb |
| 50 | Holder-Oven Lamp Bulb |
| 51 | WPL 296070 |
| 52 | WPL 305408 |
| 53 | WPL 305409 |
| 54 | WPL 323929 |
| 55 | Leg Leveler (4 Required) |
| 56 | Insulation - Oven Back |
| 57 | WPL 323931 |
