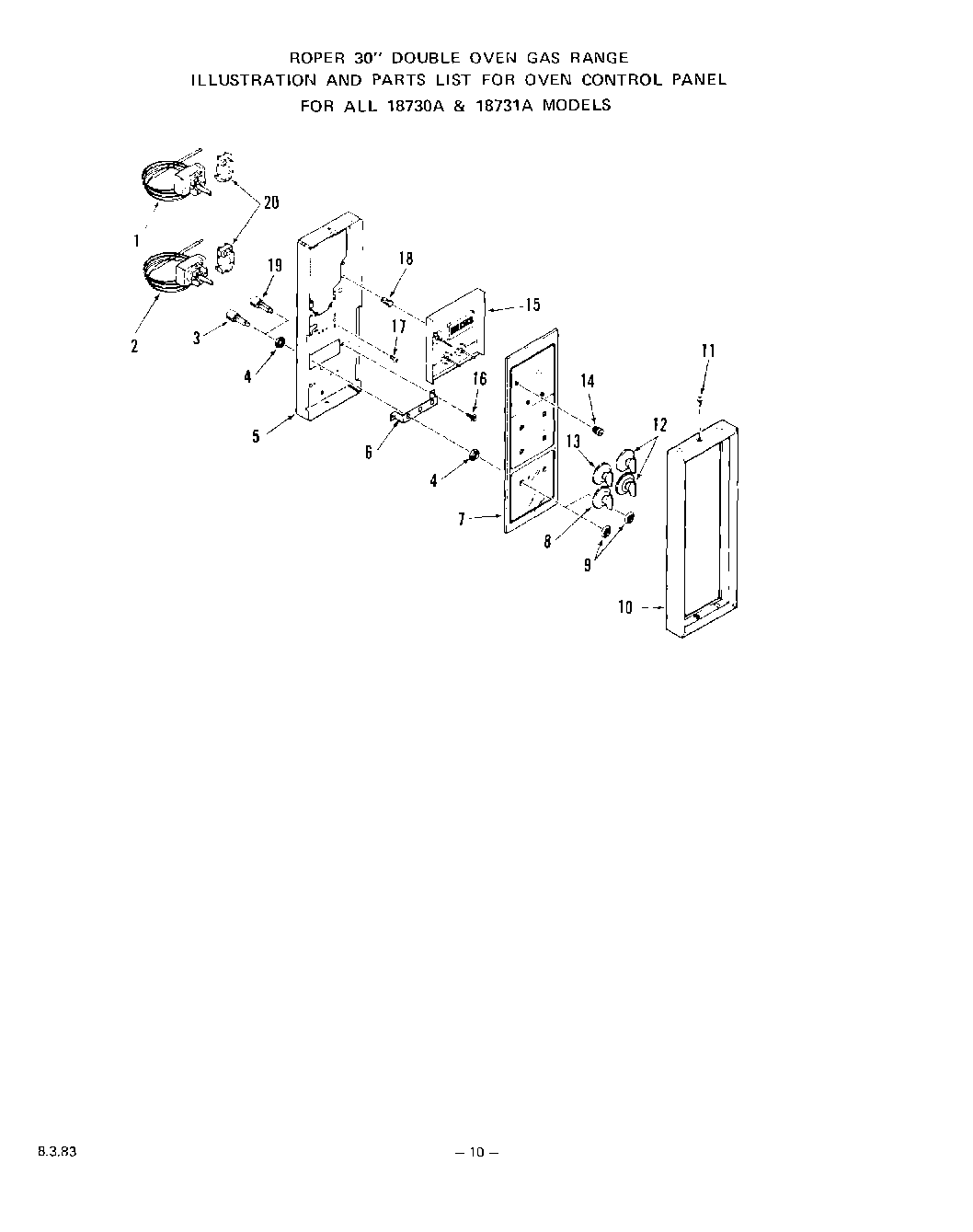

1873^1A 08 – OVEN CONTROL PANEL

Products

Position	Product
	xParts Not Shown On Illustration
1	Thermostat-Upper
2	Thermostat-Lower Oven
3	Push Switch (Fluorescent Light)
4	Lock Nut
5	Mounting Panel-Controls
6	bracket-switch
7	Glass-Control Panel
8	Knob-Lower Oven Thermostat
9	Trim Nut
10	Frame-Control Panel
11	Screw 10-32 x 1/2``
12	Knob-Selector Switch
13	Knob-Thermostat
14	Knob-Clock (Start & Stop Time)
15	Clock w/Hr. Timer
16	Screw 10-32x3/8``
17	WPL 78565
18	Tubular Clip (4 Req.)
19	Push Switch - Oven Light
20	xInstallation & Reference Guide
20	Selector Switch
20	Gas Use & Care Guide
20	xWire Harness
20	xRepair Parts Manual
20	Main
20	xOperating Guide
20	Thermostat
20	Gas Valve Switches - All 18720A Models
20	Gas Valve Sw - All 18721A Models
20	bezel control knob (4)
