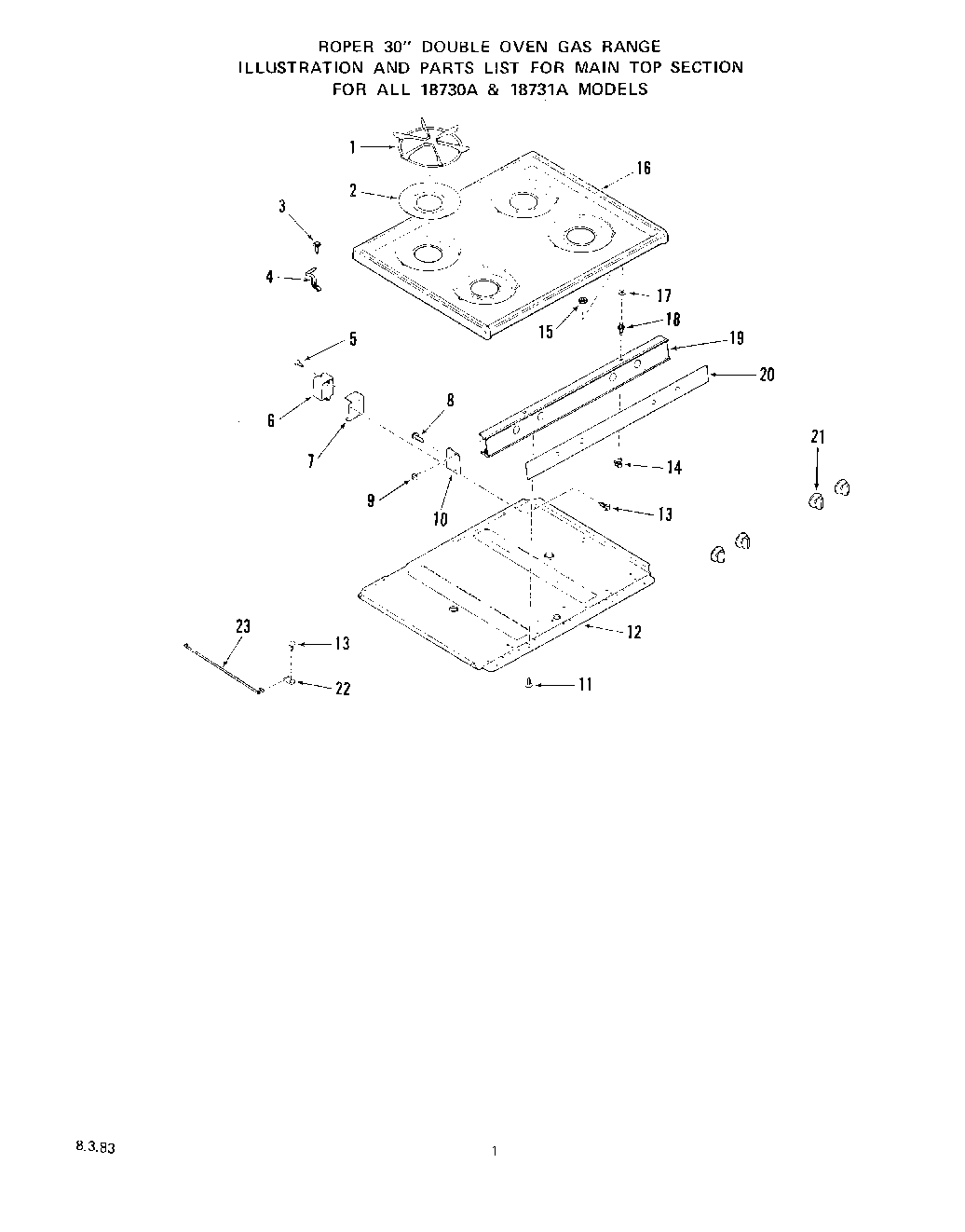

| 1 | Top Grate (4 Required) |
| 2 | Spill Bowl |
| 3 | WPL 316365 |
| 4 | Hinge (Left) |
| 4 | Hinge (Right) |
| 5 | Screw 6-32 x 1/2`` |
| 6 | Spark Module |
| 7 | Bracket - Spark Igniter Module |
| 8 | Screw 10 - 32 x 7/16`` |
| 9 | Screw 6-32x3/8`` |
| 10 | End Cap-Manifold Panel (Left) |
| 10 | End Cap-Manifold Panel (Right) |
| 11 | Screw 10-32x3/8`` |
| 12 | Burner Box Bottom |
| 13 | WP112432 Whirlpool Nut Assembly |
| 14 | Catch-Main Top Strike (2 Required) |
| 15 | Keps Nut 8-32 |
| 16 | Main Top (Coffee) |
| 16 | Main Top (Avocado) |
| 16 | White |
| 16 | Almond |
| 16 | Golden Wheat |
| 17 | Washer |
| 18 | Strike-Main Top (2 Required) |
| 19 | Manifold Panel |
| 20 | Trim-Manifold Panel |
| 21 | Knob-Gas Valve (4 Req) |
| 22 | Clip |
| 23 | Support-Main Top |
