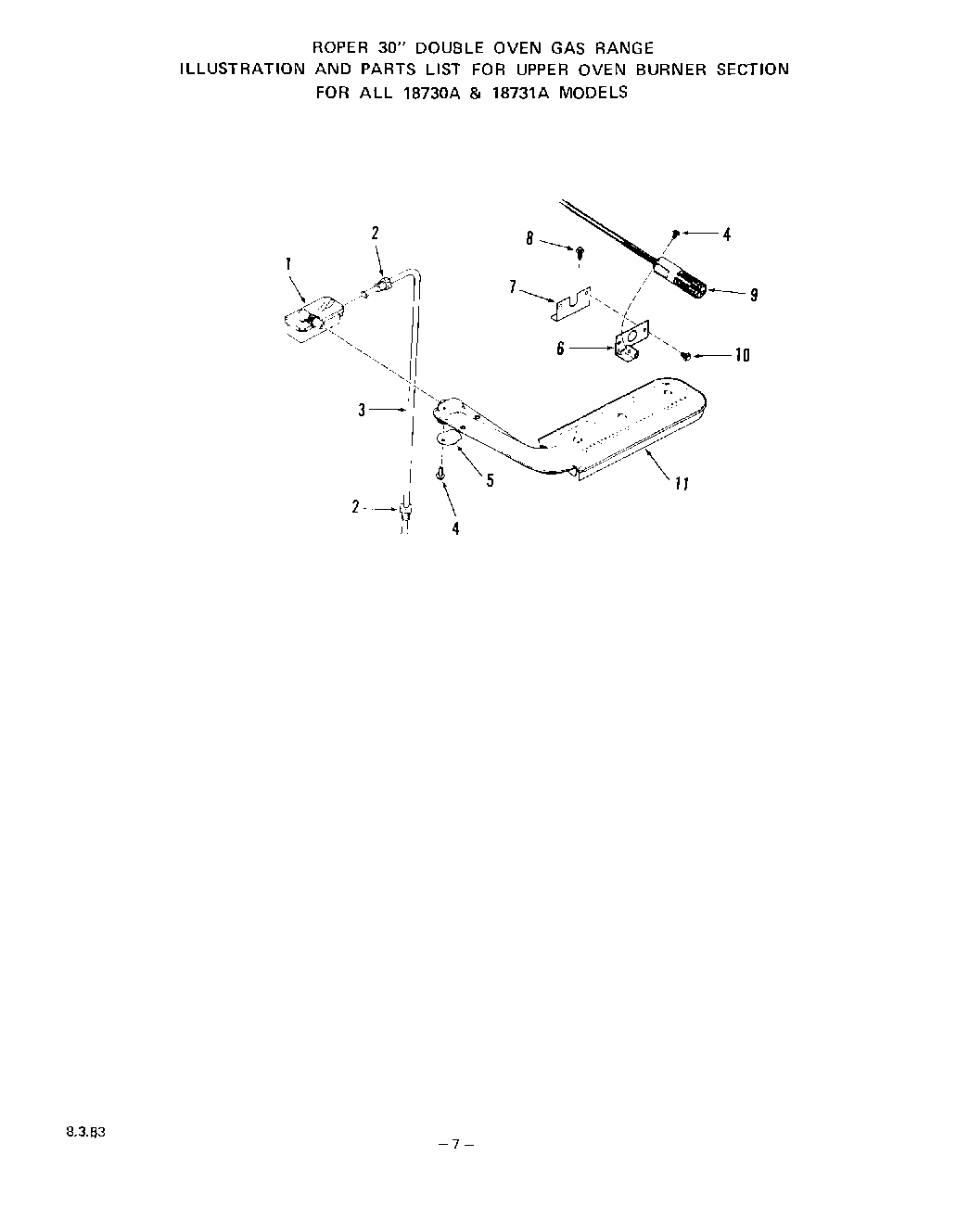

1873W0A 06 – UPPER DOOR

Written by

Products

Position	Product
1	Control Valve
2	G.M. Inverted Nut 3/8“
3	Tubing 3/8“ (Tee to Upper Control Valve)
4	Screw 10 – 32 x 1/4“
5	Air Shutter
6	Bracket-Igniter
7	Bracket-Igniter
8	WP112432 Whirlpool Nut Assembly
9	Igniter – Bake or Broil
10	Screw 10ABx3/8“
11	All 18350A & 1A Models
