1883^0A 05 – LOWER OVEN DOOR

1883^0A 05 – LOWER OVEN DOOR

Written by

in

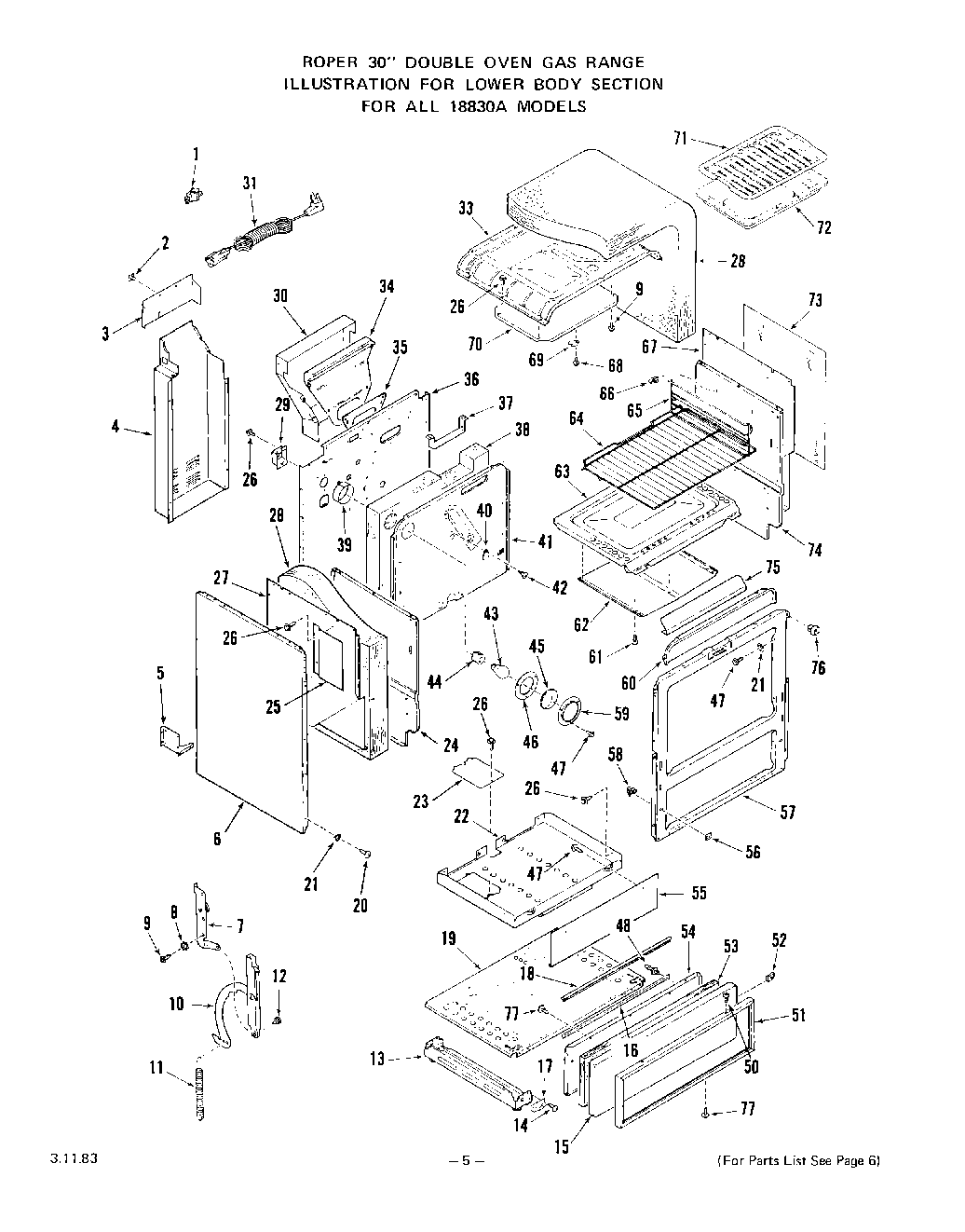

1883^0A 05 – LOWER OVEN DOOR

Products

PositionProduct
1Disconnect
2Clip
3Extension-Wire Cover
4Wire Cover
5Support
5Left
5Right
6Body Side-Lt. or Rt. (Inc. Key 73) (White)
6Body Side-Lt. or Rt. (Inc. Key 73) (Coffee)
6Body Side-Lt. or Rt. (Inc. Key 73) (Almond)
6Body Side-Lt. or Rt. (Inc. Key 73)
6Body Side-Lt. or Rt. (Inc. Key 73) (Avocado)
6Body Side-Lt. or Rt. (Inc. Key 73) (Golden Wheat)
7Left
7Right
7Hinge Bracket w/Roller (Inc. Key 12)
8Lockwasher
9Screw 10 – 32 x 7/16“
10Oven Door Hinge-Lt. or Rt. (Inc. Key 12)
11Spring-Oven Door (Lt. or Rt.)
12Shoulder rivet
13Base w/Levelers-(Lt. or Rt.)
14WPL 321162
15Front-Snap On Panel
16Retainer – Seal
17W10900107 Whirlpool Oven Surface Element Switch
18Seal
19Main Bottom
20Screw 8ABx3/4“
21Washer
22Bottom-Oven Burner
23Access Plate
24Oven Side-Left
25Baffel-Side Panel (Lt or Rt)
26WP112432 Whirlpool Nut Assembly
27Upper Insulation Retainer-Lt.
28Insulation-Oven Top & Sides (1 Piece)
29Bracket-Oven Lamp Holder
30Cover-Flue Deflector
31Range Service Cord
33Oven Top
34Flue Deflector
35Gasket-Flue Deflector
36Main Back
37WPL 282156
38Insulation-Oven Back
39Retainer-Oven Light Insulation
40Cover Plate, Rotisserie
41Oven Back
42Shoulder Screw 10-32×1/2“
43Oven Lamp Bulb
44Holder-Oven Light Bulb
45Lens-Oven Light
46Gasket-Lens
48WPL 313671
50Screw 6-32×3/8“
51WPL 310977
52WPL 310500
53WPL 282952
544396923 Whirlpool Broil Pan Set Gray Porcelain
55WPL 304125
56Washer
57WPL 321919
58Catch-Strike
59Retainer-Oven Light Lens
60WPL 282118
61WPL 92770
62WPL 282127
63WPL 283457
64WPL 305361
65WPL 306150
65WPL ARI8779A99
65WPL 306149
66Clip-Thermostat Bulb (2 Req)
67WPL 322073
68WPL 316365
69Cover Plate-Thermostat Bulb
70WPL 285860
71WPL 282273
72WPL 282278
73WPL 239603
74WPL 294195
75WPL 281574
76WPL 100576
77Screw 10-32 x 1/2“
