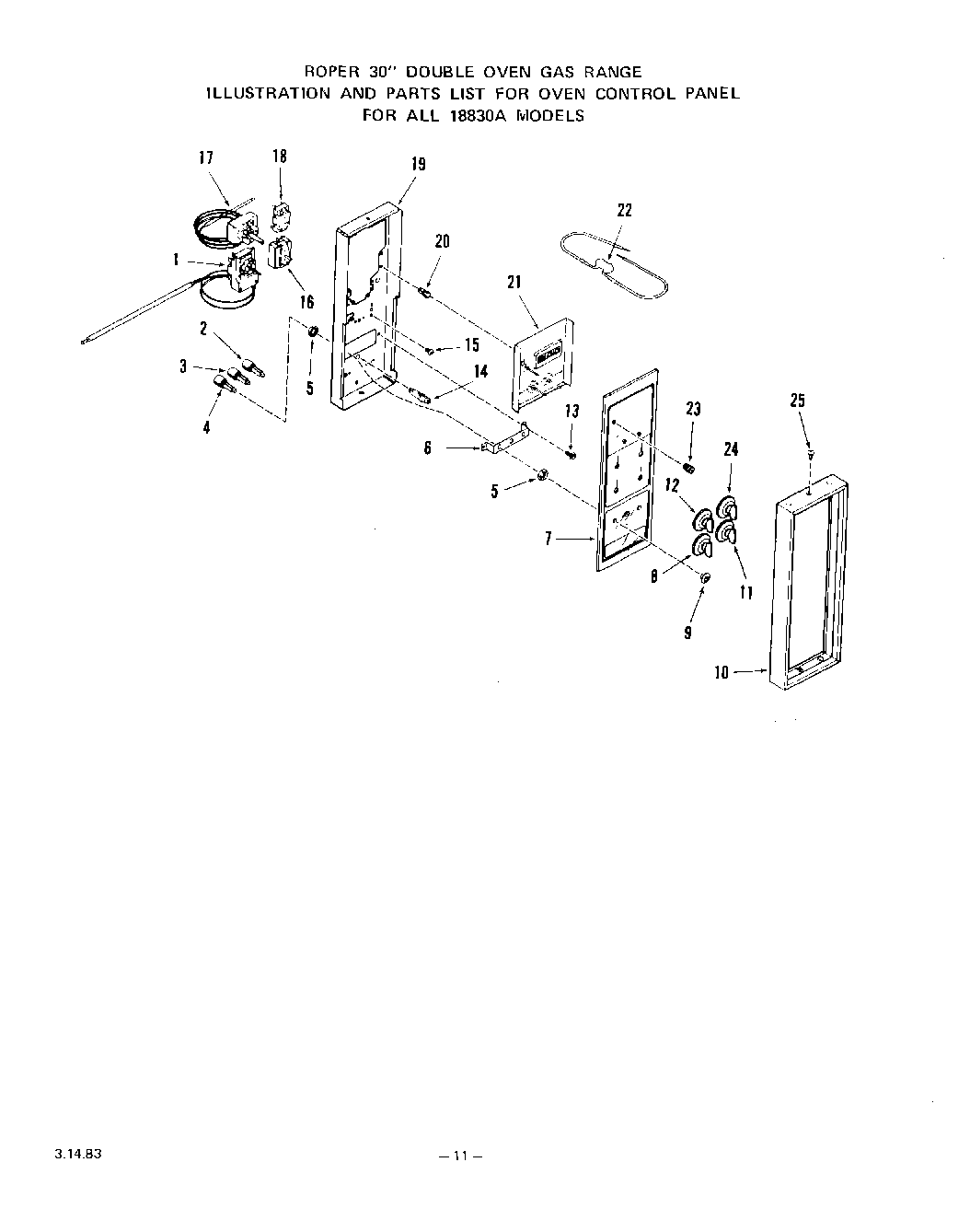

1883^0A 09 – LIT/OPTIONAL EQUIPMENT

Products

Position	Product
	xWire Harness
1	WPL 324157
2	Push Switch (Fluorescent Light)
3	Push Switch (Lock-Unlock)
4	Push Switch – Oven Light
5	Lock Nut
6	bracket-switch
7	Glass-Control Panel
8	Knob-Thermostat
9	Trim Nut
10	Frame-Control Panel
11	Knob-Selector Switch
12	Knob-Thermostat
13	Screw 10-32×3/8“
14	Indicator Light
15	WPL 78565
16	Selector Switch-Lower
17	Thermostat
18	Selector Switch
19	Mounting Panel-Controls
20	Tubular Clip (4 Req.)
21	Clock w/Hr. Timer
22	Wire Lead w/Resistor (10K,4-5 Watt)
23	Knob-Clock (Start & Stop Time)
24	Knob-Selector Switch
25	Screw 10-32 x 1/2“
25	Gas Valve Switches
25	Main
