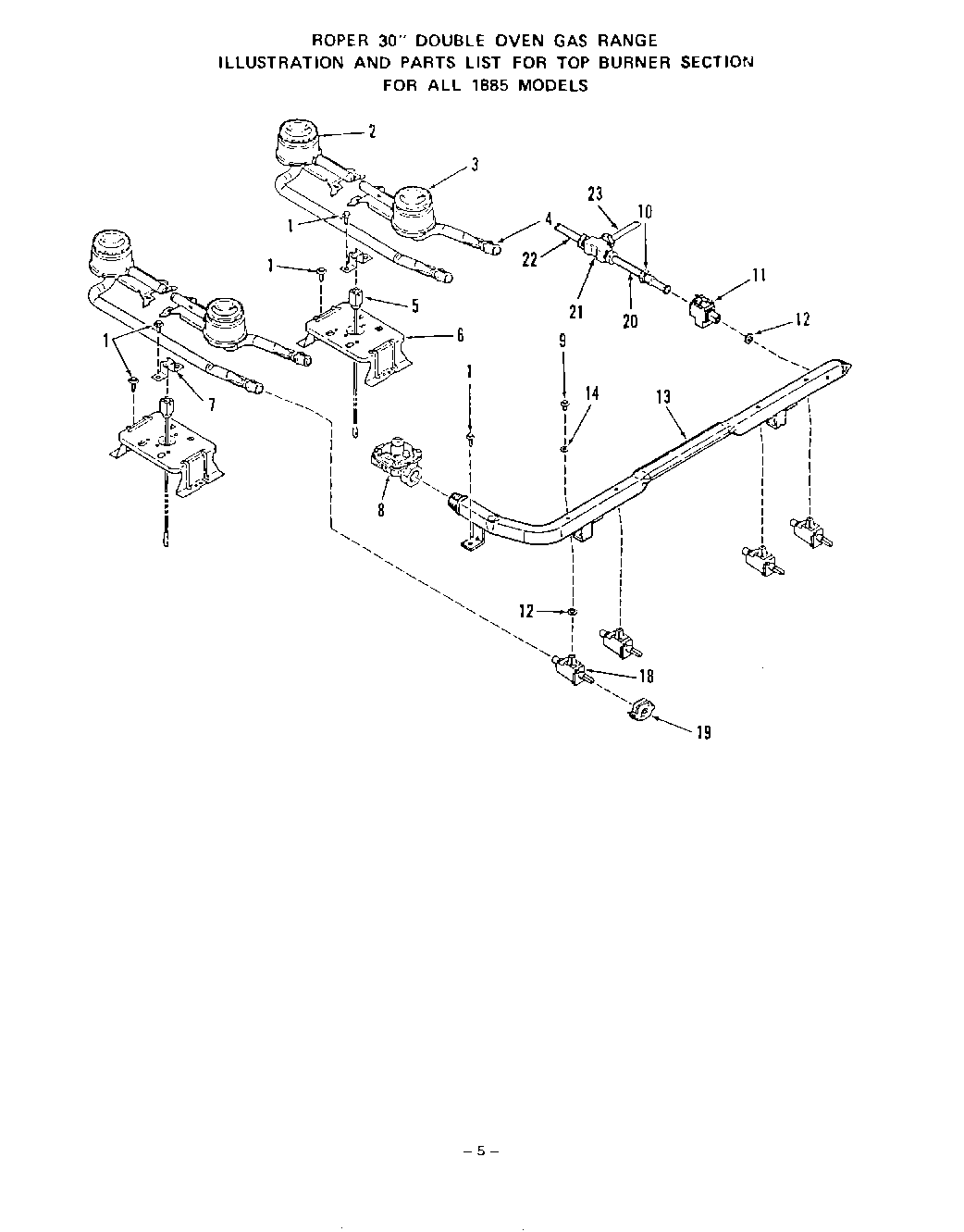

1885^1A 05 – TOP BURNER

Products

Position	Product
1	Screw 10-16×7/16“
2	Rear Top Burner-Rt. or Lt. (Inc`s. Key 4)
3	Front Top Burner-Rt. or Lt. (Inc`s.Key 4)
4	Air Shutter
5	Right
5	Electrode-Spark Igniter
5	Left
6	Support-Top Burner (Lt. or Rt.)
7	panel, side l.h. (almond panel, side r.h.)
8	Pressure Regulator
8	Pressure Regulator
8	Pressure Regulator
9	Mounting Screw (Inc`s 86)
10	Inverted Nut 3/8“
11	Shut Off Valve
12	Silicone Rubber Gasket
13	Manifold Pipe
14	Silicone Rubber Gasket (For Key 26)
18	Gas Valve (4 Req)
19	Switch-Gas Valve (4 Req)
20	Tubing 3/8“ (Shut-Off Valve to Tee)
21	Tee 3/8“
22	Tubing 3/8“ (Tee To Lower Control Valve)
22	Tubing 3/8“ (Control Valve to Broiler Burner)
22	Tubing 3/8“ (Control Valve to Tee)
23	18850A Models
23	Tubing 3/8“ (Tee To Upper Control Valve)
23	Tubing 3/8“ (Tee to Upper Control Valve)
