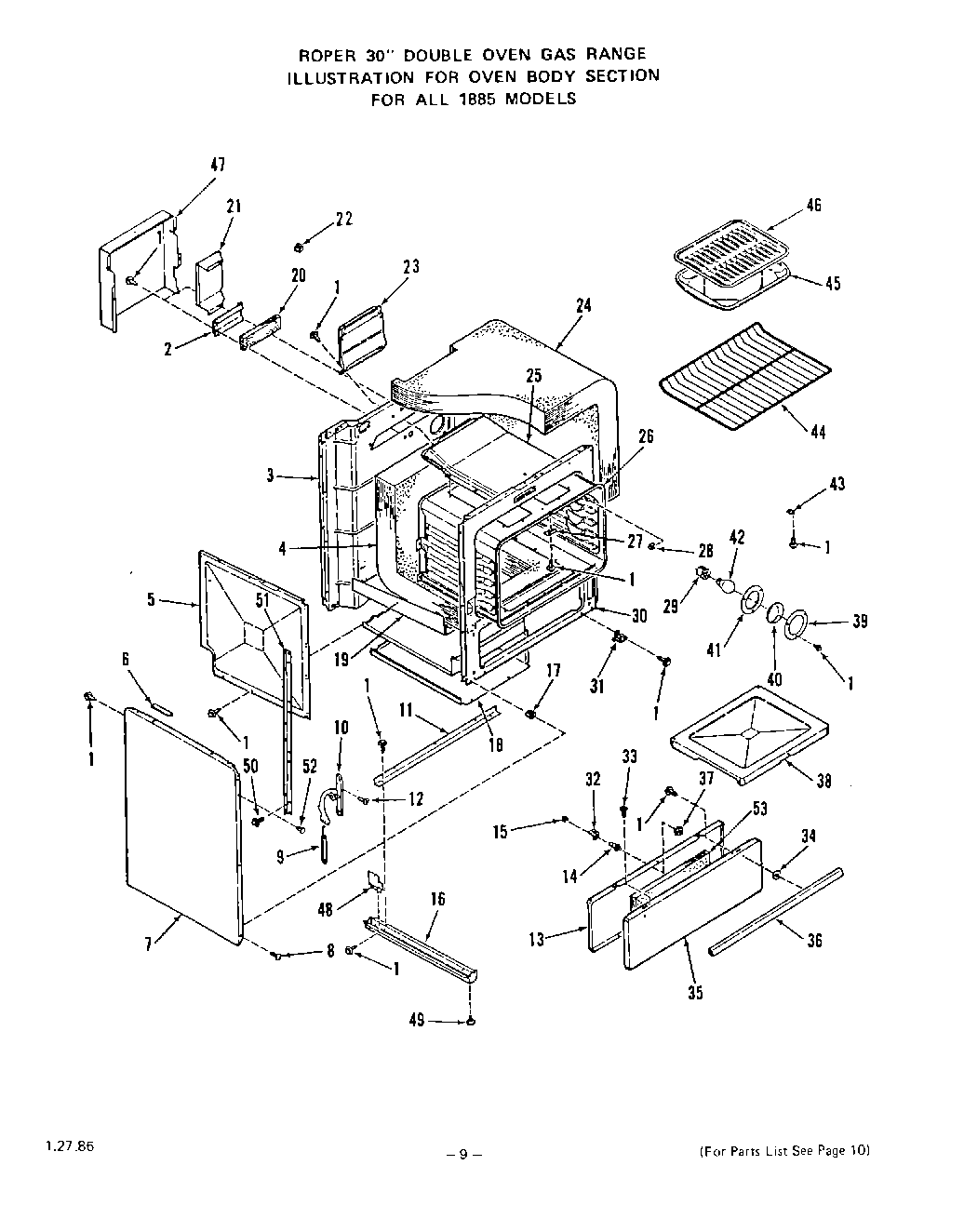

1885^1A 08 – OVEN BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Wire Shield
3	Main Back
4	Insulation-Oven Back & Bottom (1 Piece)
5	Retainer-Insulation (Lt. or Rt.)
5	Retainer-Insulation (Lt. or Rt.)
5	Retainer-Insulation (Lt. or Rt.)
6	Spacer-Main Top (2 Req)
7	Almond
7	Platinum
7	Golden Wheat
7	White
7	Body Side (Lt. or Rt.)
7	Toast
8	Screw 8ABx5/8“
9	Spring-Oven Door (Lt. or Rt.)
10	Left
10	Right
10	Hinge-Oven Door
11	Strap-Main Back & Base
12	Screw
13	18850A Models
13	18851A Models
13	Lining-Storage Door
14	Strike-Main Top (2 Required)
15	Catch-Strike
16	Base w/Leg Levelers (Lt. or Rt.)
17	BURNER RECEPTACLE KIT
18	Storage Compartment
19	18850A Models
19	Lower Insulation Retainer
19	Lower Insulation Retainer
20	Frame, Front
21	Wire Shield
22	Bushing
23	Flue Deflector
23	18850A Models
23	Flue Deflector
24	Insulation-Oven Top & Sides (1 Piece)
25	Flue Box
26	18850A Models
26	Oven Body
26	Oven Body
27	Cover
28	Clip-Thermostat Bulb (2 Req)
29	Holder-Oven Light Bulb
30	18850A Models
30	18851A Models
30	Front Frame
31	Catch-Storage Door 18850A Models
31	Hinge
32	Bracket-Catch
33	Screw-10-32×1/2“
34	spacer-handle
35	Front Panel-Storage Door
35	White
35	Golden Wheat
35	Almond
35	Platinum
35	Toast
36	Handle-Broiler Door
37	Keps Nut 8-32
38	Oven Bottom
38	18850A Models
38	Oven Bottom
39	Retainer-Oven Light Lens
40	Lens-Oven Light
41	Gasket-Lens
42	Oven Lamp Bulb
43	Cover Plate-Thermostat Bulb
44	Oven Rack (2 Req)
45	WPL ARI8878A15
45	2055B0A Model
45	WPL 331592
46	WPL 326297
47	Shield-Flue Deflector
48	Right
48	Left
48	WPL ARI8879A15
49	Leg Leveler (4 Req)
50	WP112432 Whirlpool Nut Assembly
51	s
52	WPL 281160
53	WPL 303097
