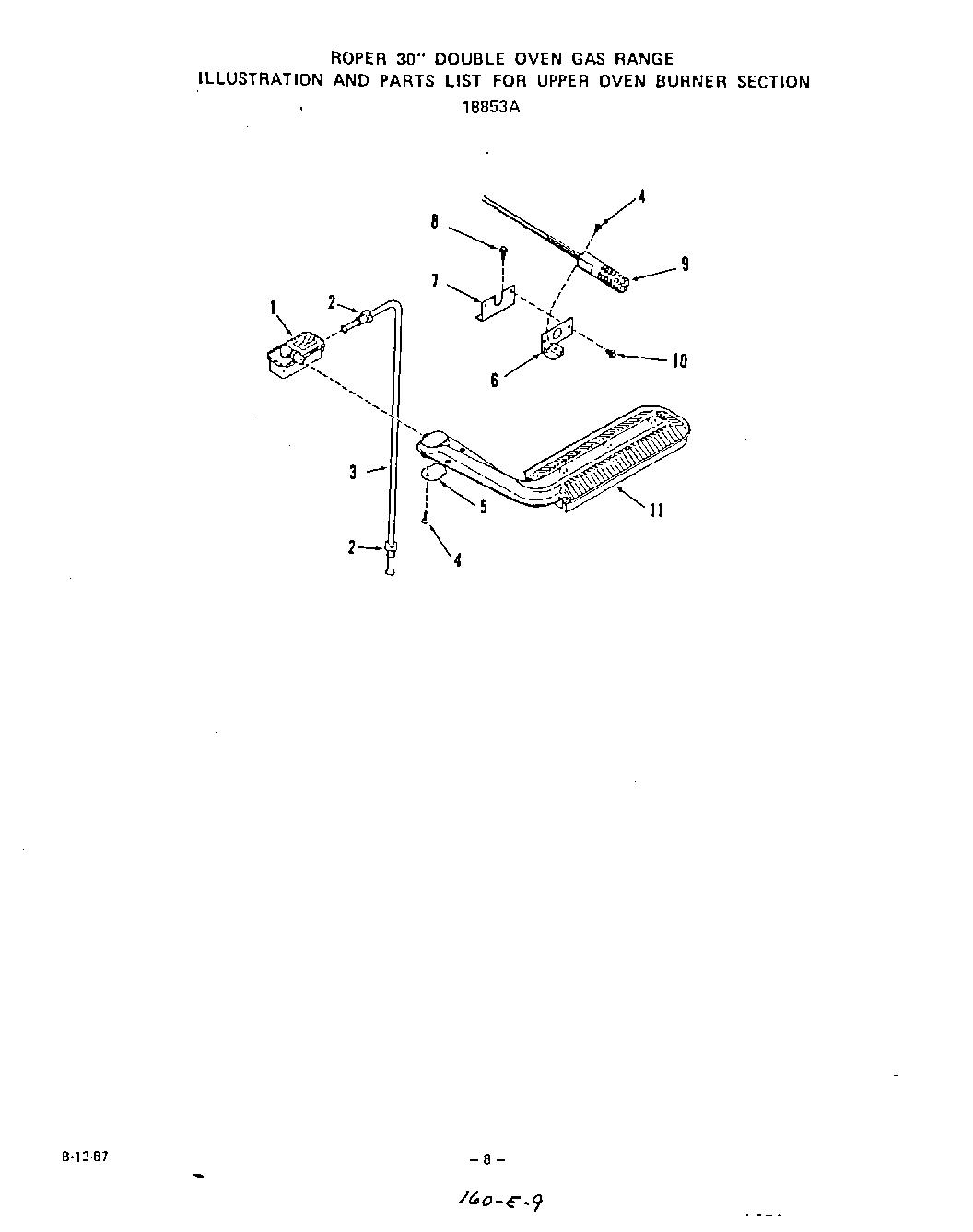

1885^3A 07 – UPPER OVEN BURNER

Products

Position	Product
1	Control Valve
2	Inverted Nut 3/8``
3	Tubing 3/8`` (Tee to Upper Control Valve)
4	Screw 10 - 32 x 1/4``
5	Air Shutter
6	Bracket-Igniter
7	Bracket-Igniter
8	WP112432 Whirlpool Nut Assembly
9	Igniter - Bake or Broil
10	Screw 10ABx3/8``
11	Oven Burner Complete
