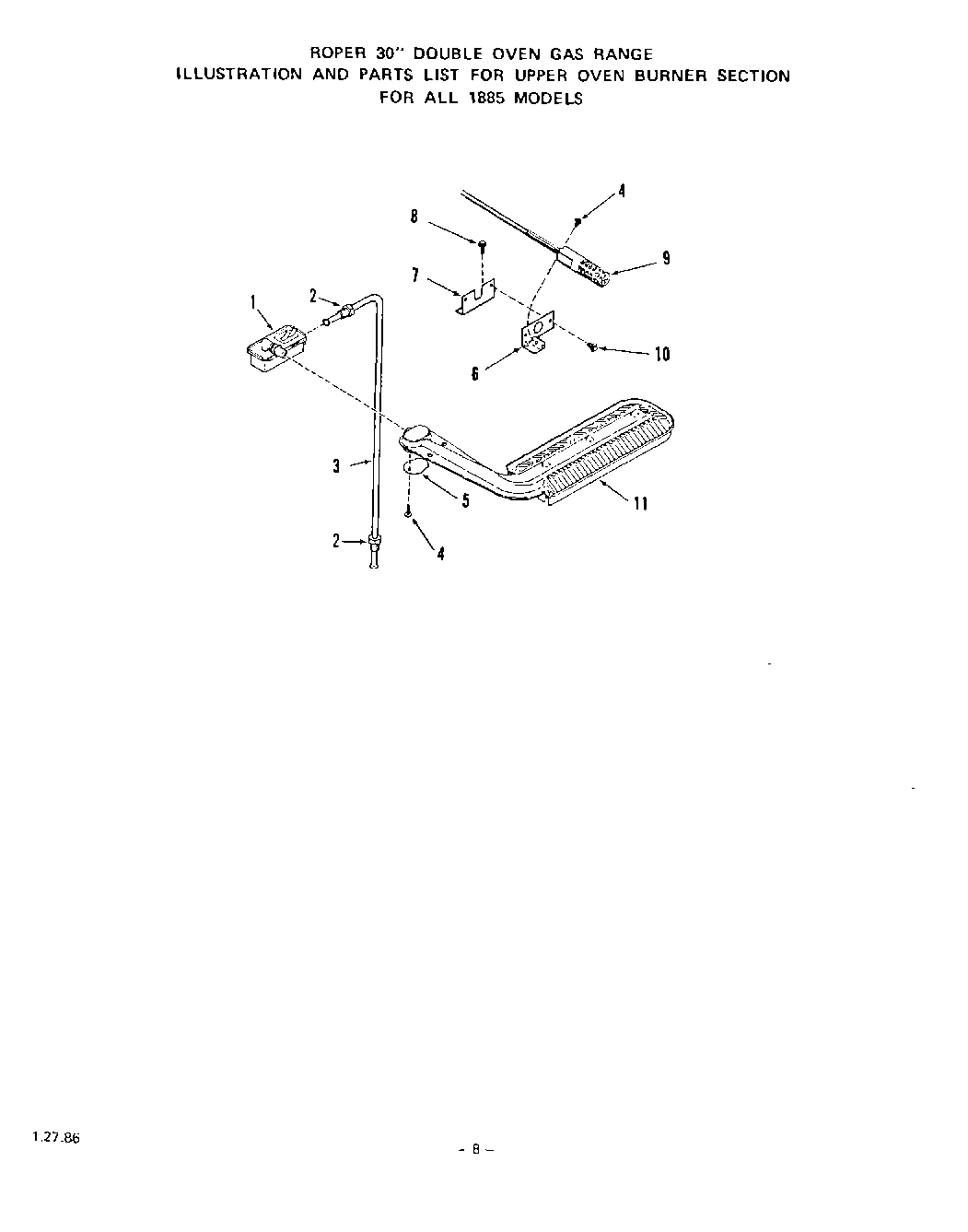

1885W0A 07 – UPPER OVEN BURNER

1885W0A 07 – UPPER OVEN BURNER

Written by

in

1885W0A 07 – UPPER OVEN BURNER

Products

PositionProduct
Control Valve
18850A Models
Control Valve
Tubing 3/8“ (Tee to Upper Control Valve)
1Control Valve
2Inverted Nut 3/8“
3Tubing 3/8“ (Tee To Upper Control Valve)
4Screw 10 – 32 x 1/4“
5Air Shutter
6Bracket-Igniter
7Bracket-Igniter
8WP112432 Whirlpool Nut Assembly
9Igniter – Bake or Broil
10Screw 10ABx3/8“
11Oven Burner Complete
