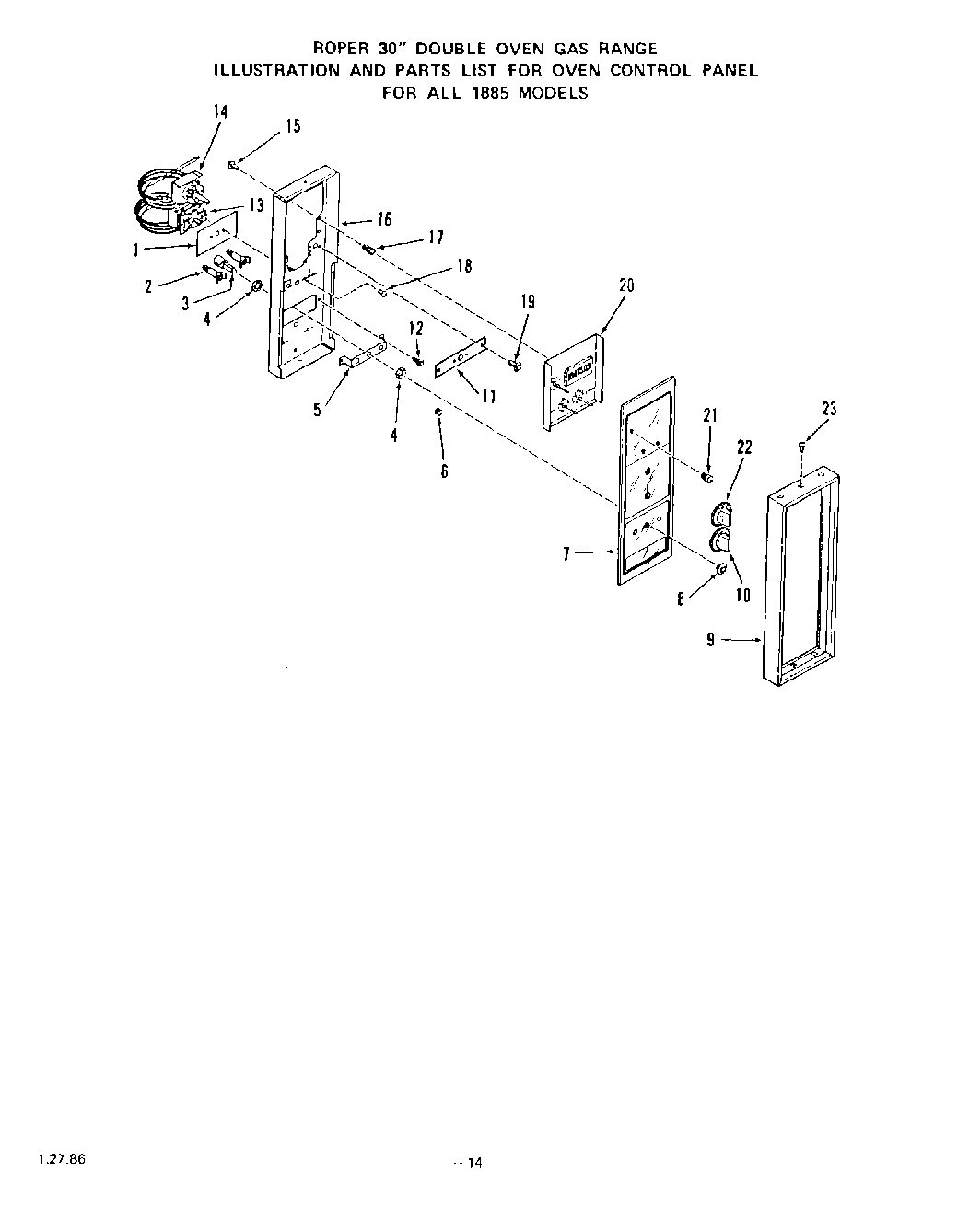

1885W0A 11 – OVEN CONTROL PANEL

Products

Position	Product
	xWire Harness
1	Barrier-Thermostat
2	Indicator Light (Oven & Clean)
3	Push Switch (Fluorescent Light)
4	Lock Nut
5	Bracket-Switch
6	Lens-Indicator Light (2 Req)
7	Glass-Control Panel
8	Trim Nut
9	Frame-Control Panel
10	liner, door
11	Bracket-Thermostat
12	Screw 10-32x3/8``
13	Thermostat-Lower
14	Thermostat-Upper
15	Screw-10-32x1/2``
16	Mounting Panel-Control
17	Tubular Clip (4 Req.)
18	WPL 78565
19	WP112432 Whirlpool Nut Assembly
20	Clock w/1 Hr. Timer
21	Knob-Clock (Start & Stop Time)
22	Knob-Upper Thermostat
23	Screw 10-32 x 1/2``
23	Igniter
23	Gas Valve Switches
23	Upper
23	Main
