1885W1A 10 – UPPER BODY

1885W1A 10 – UPPER BODY

Written by

in

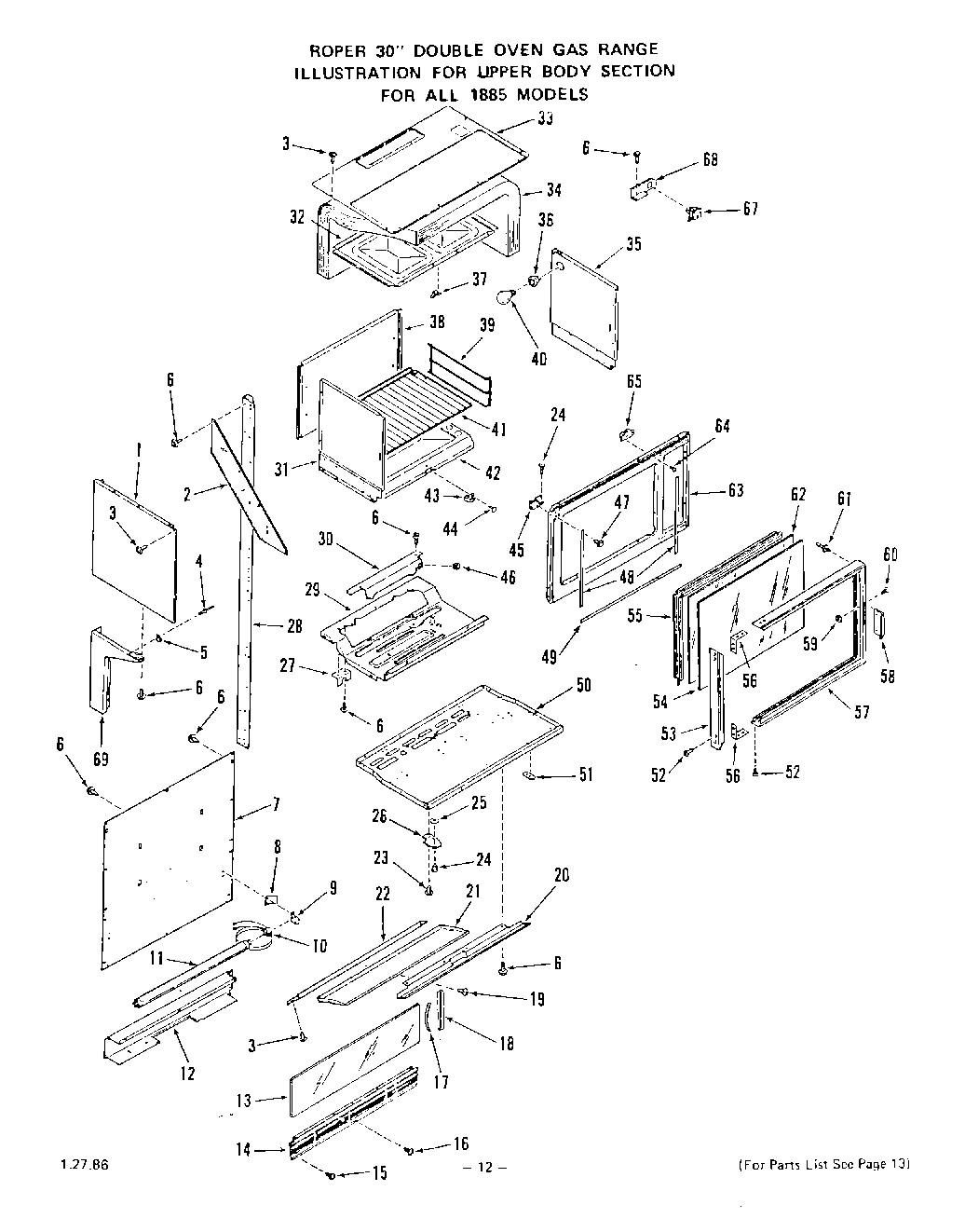

1885W1A 10 – UPPER BODY

Products

PositionProduct
Spring – Lamp Glass End Trim (Lt or Rt)
1Toast – Right
1Golden Wheat-Right
1Almond – Right
1White – Left
1Golden Wheat-Left
1Almond-Left
1Platinum
1Platinum – Right
1White – Right
1Toast – Left
1Upper Oven Body Side
2brace-cabinet side (lt. or rt.)
3Screw 6-20×3/8“
4Pop Rivet
5Retainer
6WP112432 Whirlpool Nut Assembly
7Wire Cover
8Shield-Wire
9Bracket-Fluorescent Lamp (Right)
10Right
10Left
10Holder-Fluorescent Lamp
11Fluorescent Lamp (20 W – 24“)
12Wire Cover-Fluorescent Lamp
13Fluorescent Lamp Glass
14Lower Retainer-Fluorescent Lamp Glass
15Screw 6-20×3/8“
16Screw 6-32 x 1/2“
18End Trim – Lamp Glass (Lt or Rt)
19Screw 6-32 x 1/2“
20Golden Wheat
20Toast
20trim-filter
20Almond
20Platinum
20White
21Toast
21Almond
21Golden Wheat
21Platinum
21White
21Cover-Vent
22Platinum
22Golden Wheat
22Toast
22White
22upper retainer-lamp glass
22Almond
23Screw
24Hinge Pin
25Washer
26lower hinge-oven door
27Bracket-Oven Orifice
28support-upper oven (lt. or rt.)
28Support-Upper Oven (Lt. or Rt.)
28Support-Upper Oven (Lt. or Rt.)
29baffle-oven burner
30Access Plate
31Oven Side-Left
32Oven Top
33Almond
33White
33Golden Wheat
33Platinum
33Toast
33Oven Cabinet Top
34Insulation-Sides, Top & Back (1 Piece)
35oven
36Holder-Oven Lamp Bulb
37Thermostat Bulb Clip (2 Required)
38WPL 305541
39WPL 305628
40Oven Lamp Bulb
41WPL 305629
42WPL 288655
43WPL 325485
44WPL 99139
45WPL 281781
46WPL 98761
47WPL 321162
48WPL 292912
49WPL 292913
50WPL 323869
51WPL 324159
52WPL 102559
53WPL 281846
54WPL 308010
55WPL 281992
56WPL 292907
57WPL 281845
58WPL 293051
59Keps Nut 8-32
60Screw 8-32 x 1/2“
61WPL 299263
62WPL 293049
63WPL 331876
63WPL ARI8994A25
63WPL 323873
64WPL 97411
64WPL ARI8995A19
64WPL 78565
65WPL 97003
67WPL 109180
68WPL 293747
69WPL 328213
69WPL ARI8996A79
69WPL 325287
69WPL 325283
69WPL 325286
69WPL 325289
69WPL 325292
69WPL 325293
69WPL 328127
69WPL 328128
69WPL 328214
