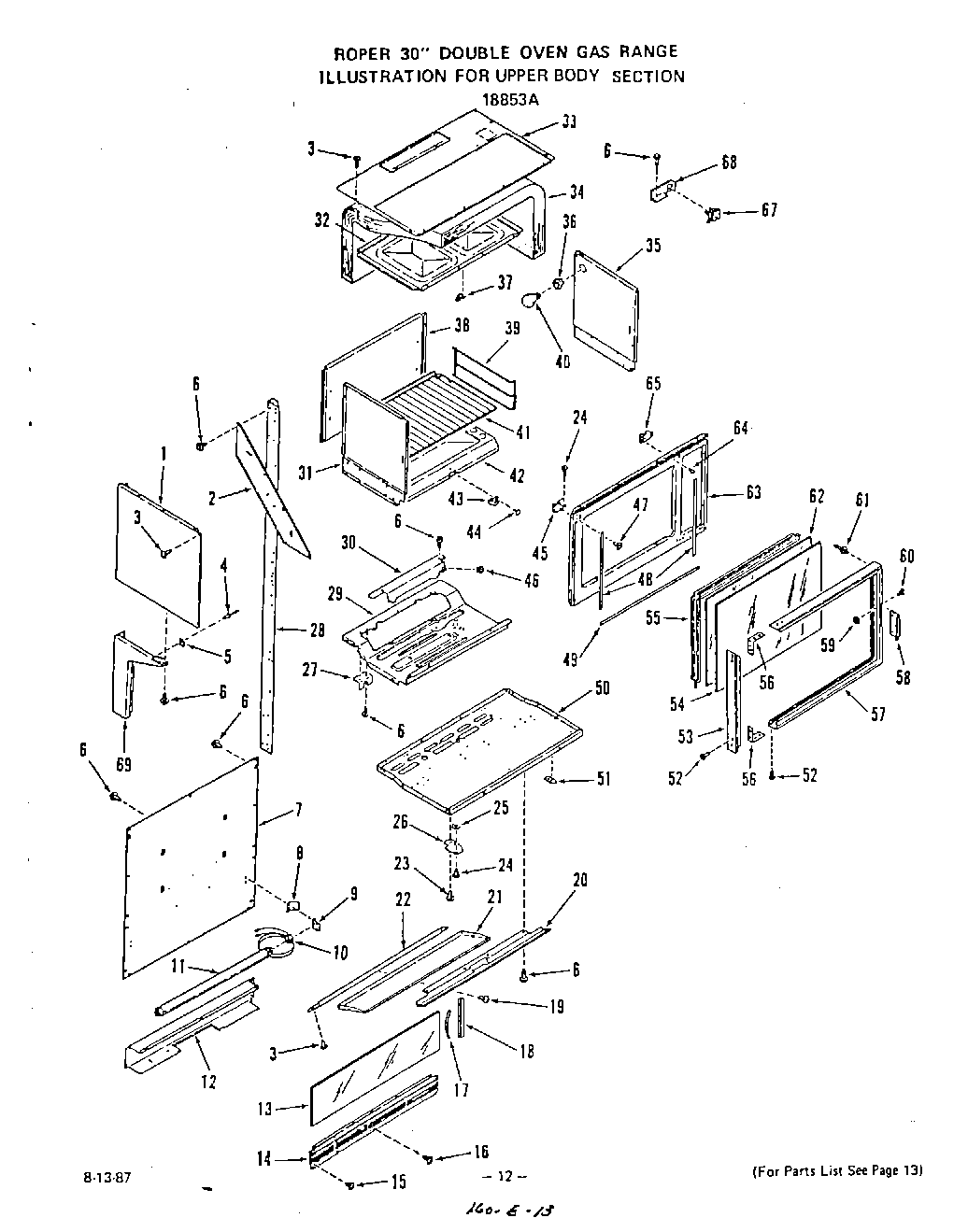

1885W3A 10 – UPPER BODY

1885W3A 10 – UPPER BODY

Written by

in

1885W3A 10 – UPPER BODY

Products

PositionProduct
1Toast – Right
1Toast – Left
1Golden Wheat-Right
1Almond – Right
1White – Left
1Upper Oven Body Side
1Golden Wheat-Left
1Platinum
1Almond-Left
1Platinum – Right
1White – Right
2brace-cabinet side (lt. or rt.)
3Screw 6-20×3/8“
4Pop Rivet
5Retainer
6WP112432 Whirlpool Nut Assembly
7Wire Cover
8Shield-Wire
9Bracket-Fluorescent Lamp (Right)
10Right
10Holder-Fluorescent Lamp
10Left
11Fluorescent Lamp (20 W – 24“)
12Wire Cover-Fluorescent Lamp
13Fluorescent Lamp Glass
14Lower Retainer-Fluorescent Lamp Glass
15Screw 6-20×3/8“
16Screw 6-32 x 1/2“
17Spring – Lamp Glass End Trim (Lt or Rt)
18End Trim – Lamp Glass (Lt or Rt)
19Screw 6-32 x 1/2“
20White
20Golden Wheat
20trim-filter
20Toast
20Platinum
20Almond
21Cover-Vent
21Platinum
21White
21Toast
21Almond
21Golden Wheat
22Toast
22upper retainer-lamp glass
22White
22Platinum
22Almond
22Golden Wheat
23Screw
24Hinge Pin
25Washer
26lower hinge-oven door
27Bracket-Oven Orifice
28Support-Upper Oven (Lt. or Rt.)
29baffle-oven burner
30Access Plate
31Oven Side-Left
32Oven Top
33Platinum
33White
33Oven Cabinet Top
33Toast
33Almond
33Golden Wheat
34Insulation-Sides, Top & Back (1 Piece)
35oven
36Holder-Oven Lamp Bulb
37Thermostat Bulb Clip (2 Required)
38WPL 305541
39WPL 305628
40Oven Lamp Bulb
41WPL 305629
42WPL 288655
43WPL 325485
44WPL 99139
45WPL 281781
46WPL 98761
47WPL 321162
48WPL 292912
49WPL 292913
50WPL 323869
51WPL 324159
52WPL 102559
53WPL 281846
54WPL 308010
55WPL 281992
56WPL 292907
57WPL 281845
58WPL 293051
59Keps Nut 8-32
60Screw 8-32 x 1/2“
61WPL 299263
62WPL 293049
63WPL 331876
64WPL 78565
64WPL 97411
64WPL ARI9013A74
65WPL 97003
67WPL 109180
68WPL 293747
69WPL 328214
69WPL 328213
69WPL 325289
69WPL 328128
69WPL 328127
69WPL 325293
69WPL 325292
69WPL 325287
69WPL 325286
69WPL 325283
69WPL ARI9014A84
