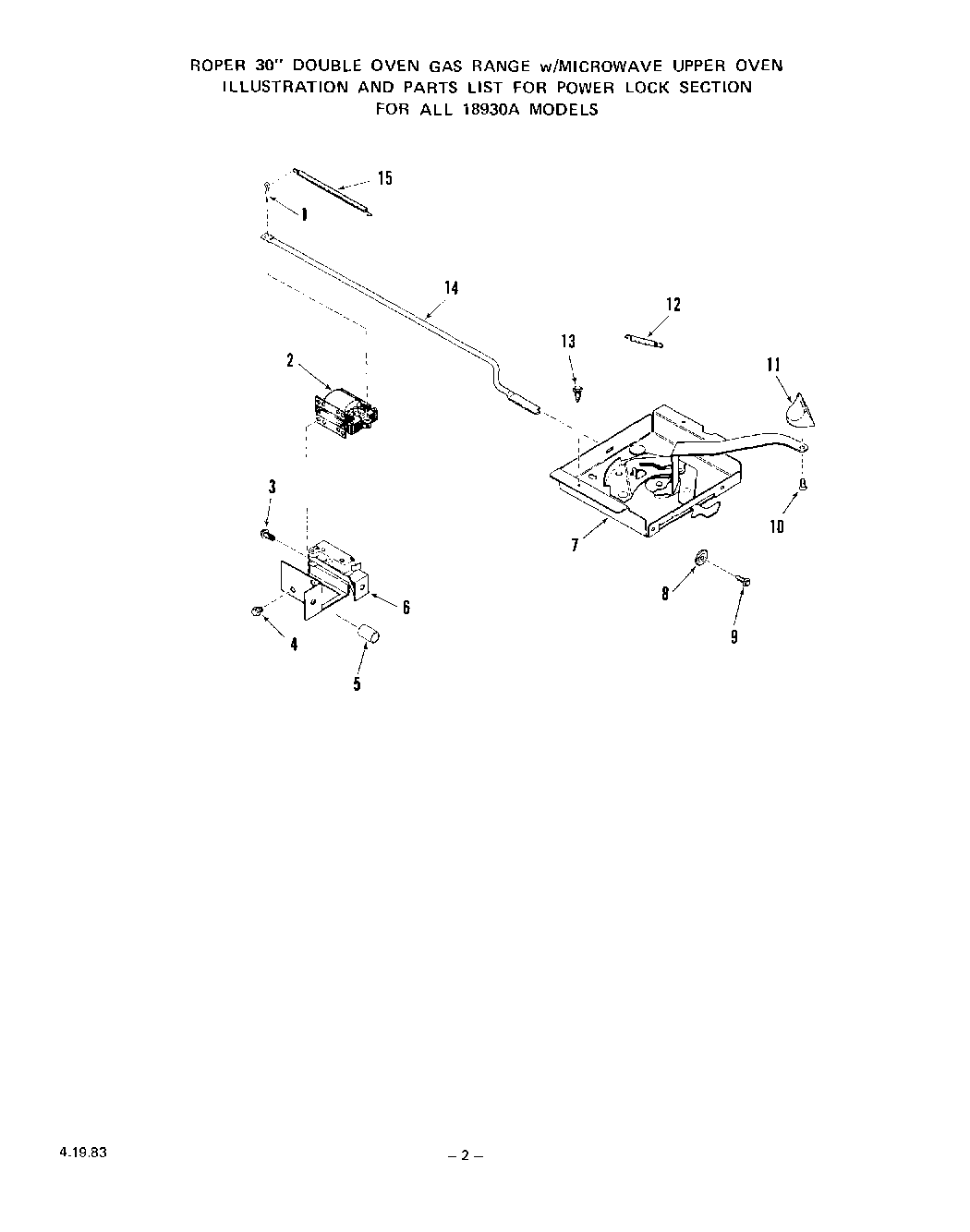

1893^0A 03 – BURNER – Aparts

1893^0A 03 – BURNER

Products

Position	Product
1	Cotter Pin
2	Solenoid Only
3	WPL 295850
4	Mounting Screw
5	Spacer (2 Req)
6	Bracket w/Switch
7	Oven Door Lock Assm. (Inc. Key 9)
8	Washer
9	WPL 316365
10	Screw 6-32x15/32``
11	Knob-Lock Handle
12	Spring-Lock Handle
13	Screw 10-32x17/32``
14	Rod-Oven Door Lock
15	Spring-Solenoid
