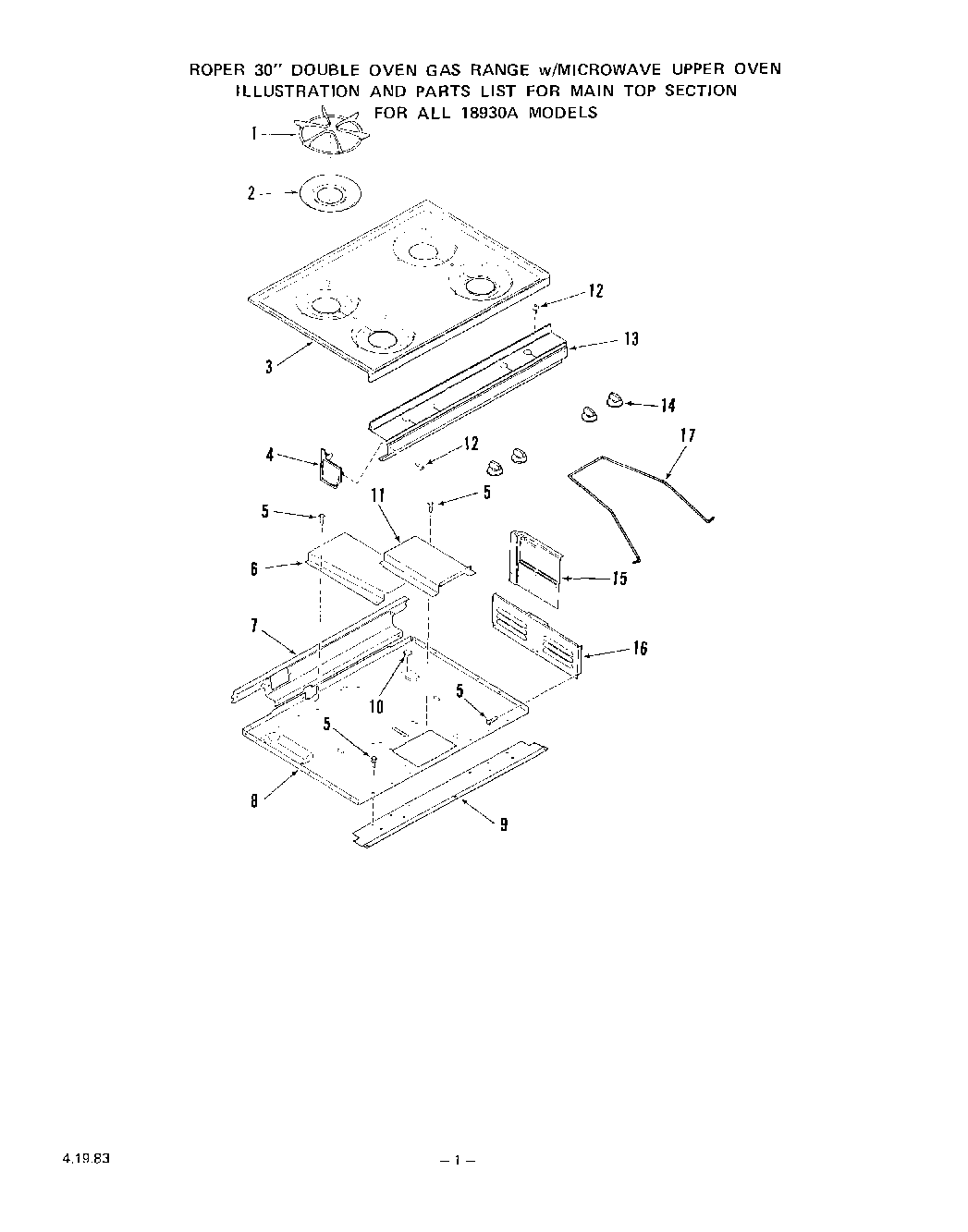

| 1 | Top Grate (4 Required) |
| 2 | Spill Bowl (4 Required) |
| 3 | Main Top (Chrome) |
| 3 | Coffee |
| 3 | Avocado |
| 3 | Golden Wheat |
| 3 | Almond |
| 3 | White |
| 4 | Left |
| 4 | Right |
| 5 | WP112432 Whirlpool Nut Assembly |
| 6 | Cover-Lock Rod |
| 7 | Rear Support-Main Top |
| 8 | Burner Box Bottom |
| 9 | Front Extension-Burner Box Bottom |
| 10 | Plug Button |
| 11 | Cover-Lock |
| 12 | Screw 6-32x3/8`` |
| 13 | Manifold Panel |
| 14 | Knob-Gas Valve (4 Required) |
| 15 | Left |
| 15 | Right |
| 16 | Baffle-Burner Box Bottom (Rt. or Lt.) |
| 17 | Support Rod-Main Top |
