1893W0A 07 – LOWER OVEN CONTROL

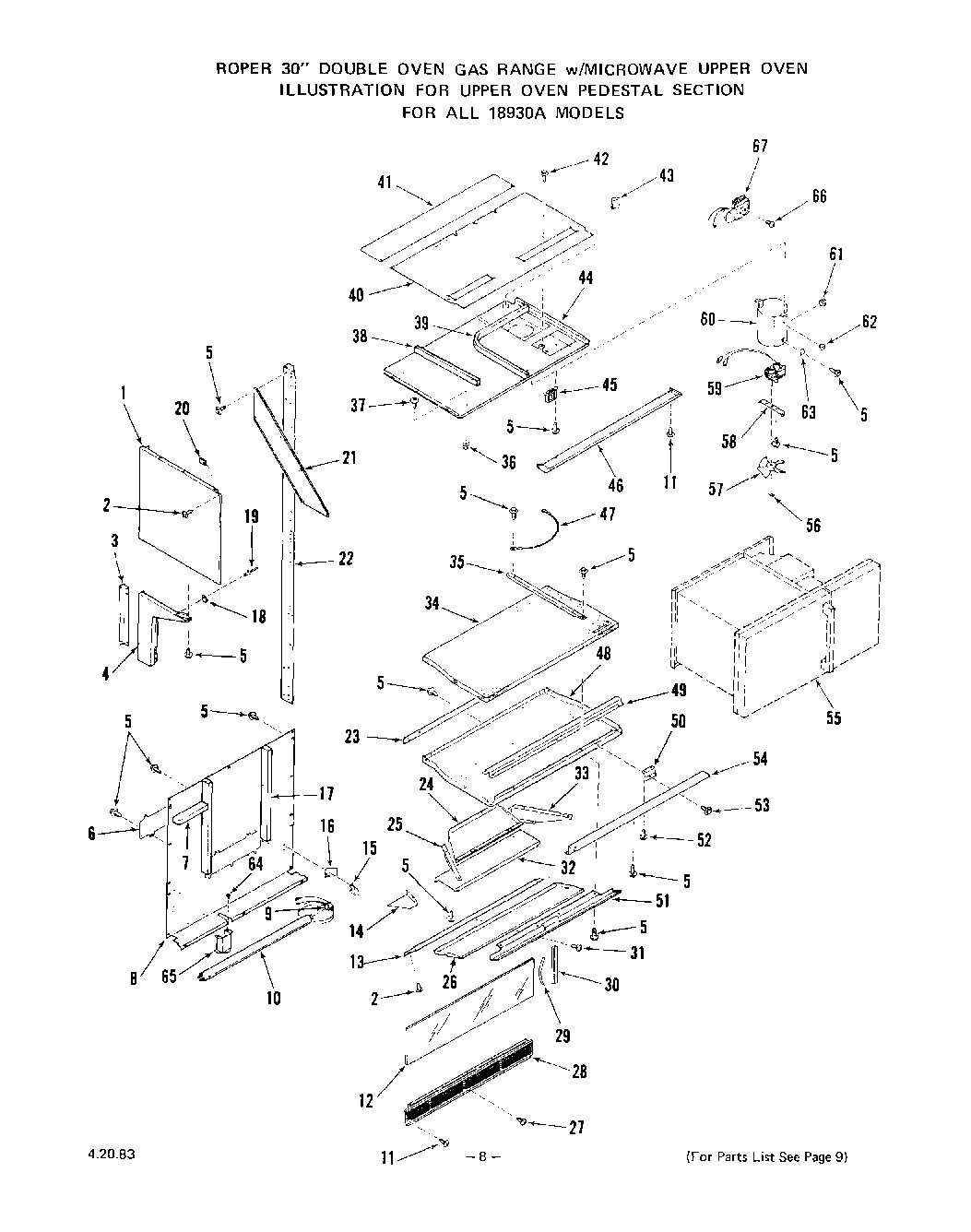

Products

PositionProduct
1Upper Oven Body Side (Golden Wheat-Right)
1Upper Oven Body Side (Avocado-Left)
1Upper Oven Body Side (Coffee-Left)
1Upper Oven Body Side (Golden Wheat-Left)
1Upper Oven Body Side (White-Left)
1Upper Oven Body Side (Almond-Left)
1Upper Oven Body Side (White-Right)
1Upper Oven Body Side (Coffee-Right)
1Upper Oven Body Side (Avocado-Right)
1Upper Oven Body Side (Almond-Right)
2Screw 6-32×3/8“
3Support-Pedestal (Lt. or Rt.)
4Golden Wheat-Left
4Almond-Left
4Avocado-Left
4Coffee-Right
4White-Left
4Coffee-Left
4Almond-Right
4Golden Wheat-Right
4Avocado-Right
4White-Right
5WP112432 Whirlpool Nut Assembly
6Cover Plate
7Foam Strip
8Wire Cover
9Left
9Right
10Fluorescent Lamp (20 W – 24“)
11Screw 6-32 x 3/8“
12Fluorescent Lamp Glass
13Upper Retainer-Lamp G
13White
13Golden Wheat
13Almond
13Upper Retainer-Lamp Glass (Coffee)
14WPL 322935
14WPL 322933
15Bracket-Fluorescent Lamp (Right)
16Shield-Wire
17WPL 320696
18Retainer
19Pop Rivet
20WPL 320196
21WPL 324791
22Support-Upper Oven (Lt. or Rt.)
23WPL 320117
24WPL 322937
25Vent Side-Lt.
26WPL 321662
26WPL 321661
26WPL 321664
26WPL 321663
26WPL 321660
27Screw 6-32 x 1/2“
28Lower Retainer-Lamp Glass
29Spring – Lamp Glass End Trim (Lt or Rt)
30End Trim – Lamp Glass (Lt or Rt)
31Screw 6-32 x 1/2“
32Bottom-Ve
33WPL 320259
34WPL 320211
35WPL 320202
36WPL 324728
37Screw-10-32×1/2“
38WPL 325030
39WPL 325029
40WPL 321676
40WPL 321675
40WPL 321674
40WPL 320240
40WPL 321673
41WPL 320476
41WPL 321669
41WPL 321671
41WPL 321670
41WPL 321672
42WPL 316365
43WPL 109180
44WPL 320243
45Ballast
46WPL 320213
47WPL 321044
48WPL 320210
49WPL 321410
50WPL 324709
51WPL 323821
51WPL 323822
51White
51Almond
51Golden Wheat
52Screw 10-32 x 1/2“
53Screw 10 – 32×3/8“
54WPL 320399
55WPL ARI9018A68
56WPL 320703
57WPL 311173
58WPL 320374
59WPL 320397
60WPL 320412
61Keps Nut 10-32
62WPL 232365
63WPL 283763
64Clip
65WPL 286889
66WPL 78565
67WPL 281698
