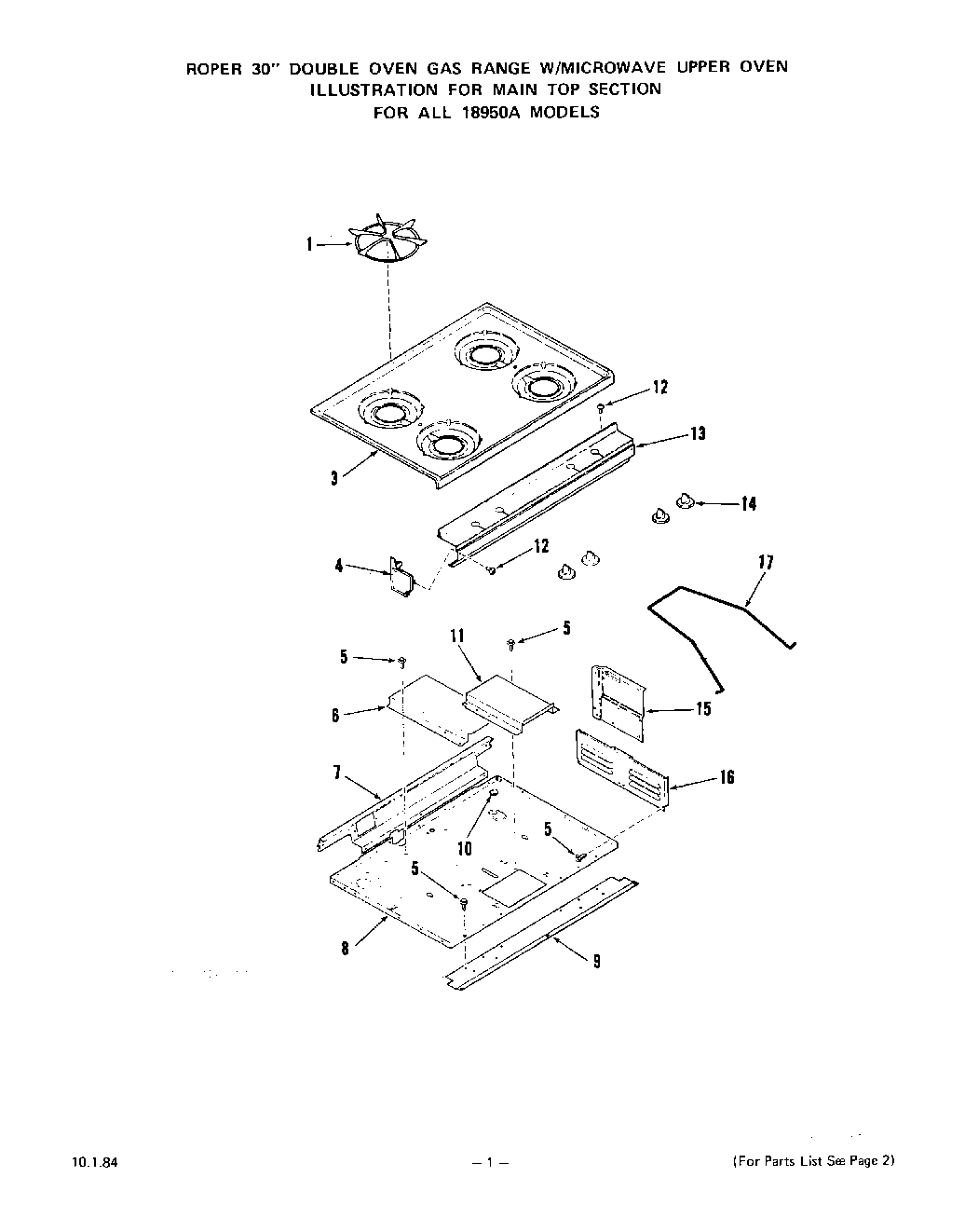

1895^0A 02 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
3	Main Top
3	White
3	Almond
3	Golden Wheat
3	Avocado
3	Coffee
4	End Cap
4	Right
4	Left
5	WP112432 Whirlpool Nut Assembly
6	Cover-Lock Rod
7	Rear Support-Main Top
8	Burner Box Bottom
9	Front Extension-Burner Box Bottom
10	Plug Button
11	Cover-Lock
12	Screw 6-32×3/8“
13	Manifold Panel
14	Knob-Gas Valve (4 Required)
15	Right
15	Left
15	Extension-Burner Box Bottom
16	Baffle-Burner Box Bottom (Rt. or Lt.)
17	Support Rod-Main Top
