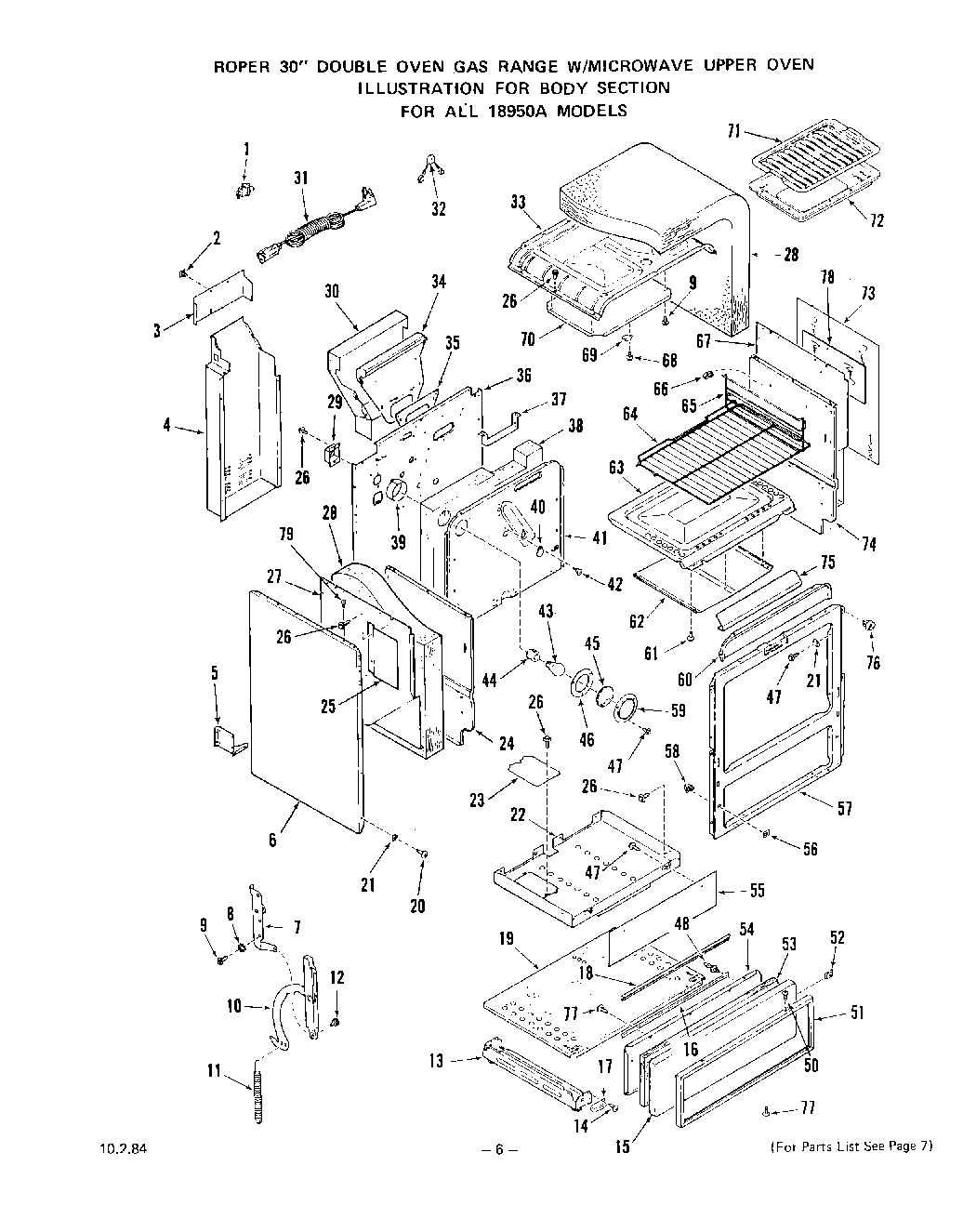

1895^0A 05 – BODY

1895^0A 05 – BODY

Written by

in

1895^0A 05 – BODY

Products

Position	Product
1	Disconnect
2	Clip
3	Extension-Wire Cover
4	Wire Cover
5	Right
5	Left
5	Support
6	Almond
6	Body Side-Lt. or Rt. (Inc`s. Keys 73 & 78)
6	Golden Wheat
6	Avocado
6	Coffee
6	White
7	Hinge Bracket w/Roller (Inc`s. Key 12)
7	Left
7	Right
8	Lockwasher
9	Screw 10 – 32 x 7/16“
10	Oven Door Hinge-Lt. or Rt. (Inc. Key 12)
11	Spring-Oven Door (Lt. or Rt.)
12	Shoulder rivet
13	Base w/Levelers-(Lt. or Rt.)
14	WPL 321162
15	Front-Snap On Panel
16	Retainer – Seal
17	W10900107 Whirlpool Oven Surface Element Switch
18	Seal
19	Main Bottom
20	Screw 8ABx3/4“
21	Washer
22	Bottom-Oven Burner
23	Access Plate
24	Oven Side-Left
25	Baffel-Side Panel (Lt or Rt)
26	WP112432 Whirlpool Nut Assembly
27	Upper Insulation Retainer-Lt.
28	Insulation-Oven Top & Sides (1 Piece)
29	Bracket-Oven Lamp Holder
30	Cover-Flue Deflector
31	Range Service Cord
32	WPL 324385
33	Oven Top
34	Flue Deflector
35	Gasket-Flue Deflector
36	Main Back
37	WPL 282156
38	Insulation-Oven Back
39	Retainer-Oven Light Insulation
40	Cover Plate, Rotisserie
41	Oven Back
42	Shoulder Screw 10-32×1/2“
43	Oven Lamp Bulb
44	Holder-Oven Light Bulb
45	Lens-Oven Light
46	Gasket-Lens
48	WPL 299263
50	Screw 6-20×3/8“
51	WPL 310977
52	Speed Nut 10 – 32
53	WPL 282952
54	4396923 Whirlpool Broil Pan Set Gray Porcelain
55	WPL 304125
56	WPL 310281
57	WPL 321919
58	Catch-Strike
59	Retainer-Oven Light Lens
60	WPL 282118
61	WPL 97220
62	WPL 282127
63	WPL 283457
64	WPL 305361
65	WPL 306150
65	WPL 306149
65	WPL ARI9027A78
66	Clip-Thermostat Bulb (2 Req)
67	WPL 322073
68	WPL 316365
69	Cover Plate-Thermostat Bulb
70	WPL 285860
71	WPL 319159
72	WPL 319158
73	WPL 239603
74	WPL 294195
75	WPL 281574
76	WPL 100576
77	Screw 10-32 x 1/2“
78	WPL 326070
79	WPL 301769
