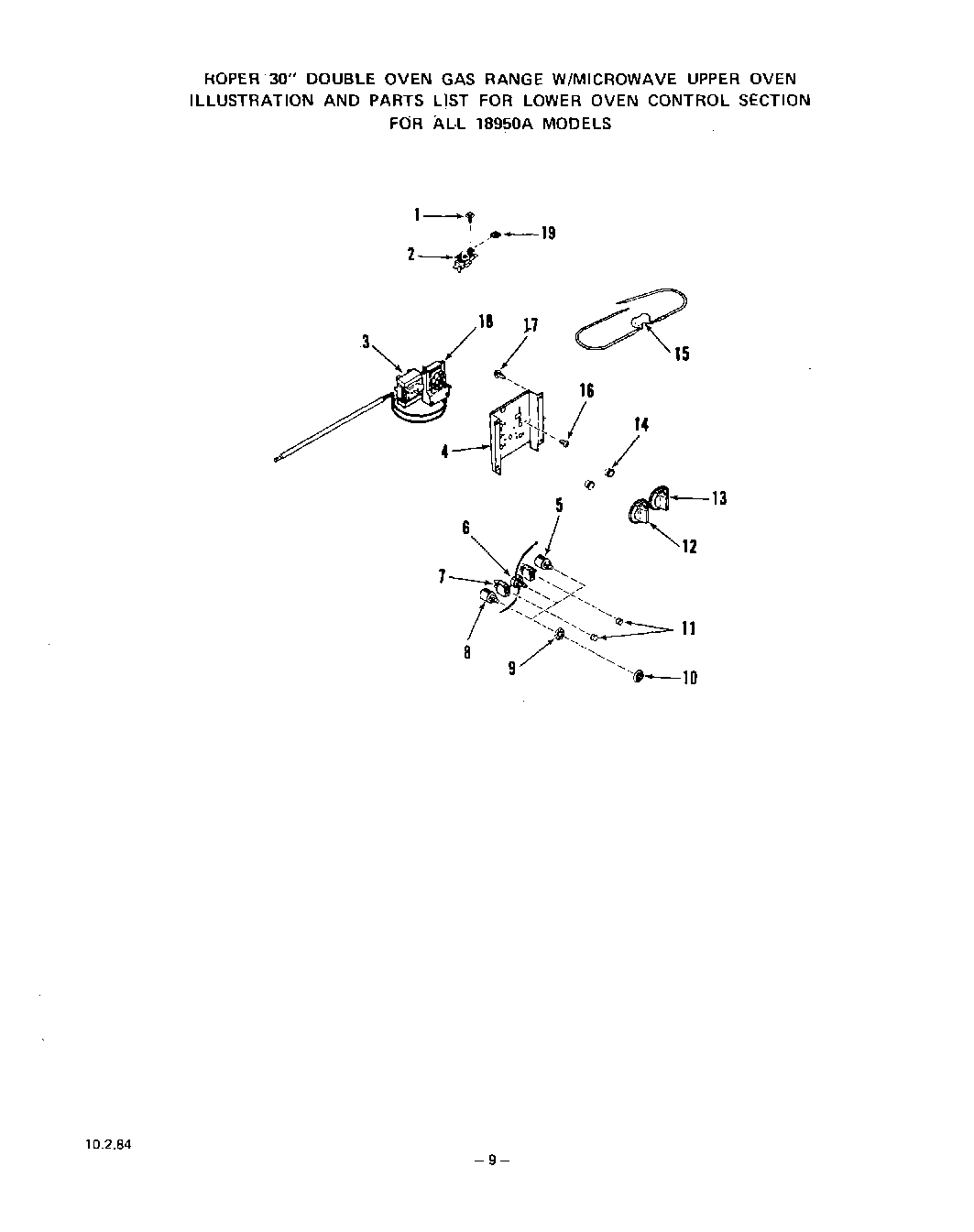

1895^0A 07 – LOWER OVEN CONTROL

Products

Position	Product
1	Screw 8-32×3/8“
2	Auxiliary Thermostat
3	Selector Switch
4	Mounting Bracket-Controls
5	Push Switch (Fluorescent Light)
6	Push Switch (Lock-Unlock)
7	Indicator Light
8	Push Switch – Oven Light
9	Lock Nut
10	Knurled Nut
11	Lens-Indicator Light
12	Knob-Selector Switch
13	Knob-Thermostat
14	Bushing-Knob
15	Wire Lead w/Resistor (10K,4-5 Watt)
16	WPL 78565
17	Screw 10-32×5/16“
18	Thermostat
19	Speed Nut 8-32
