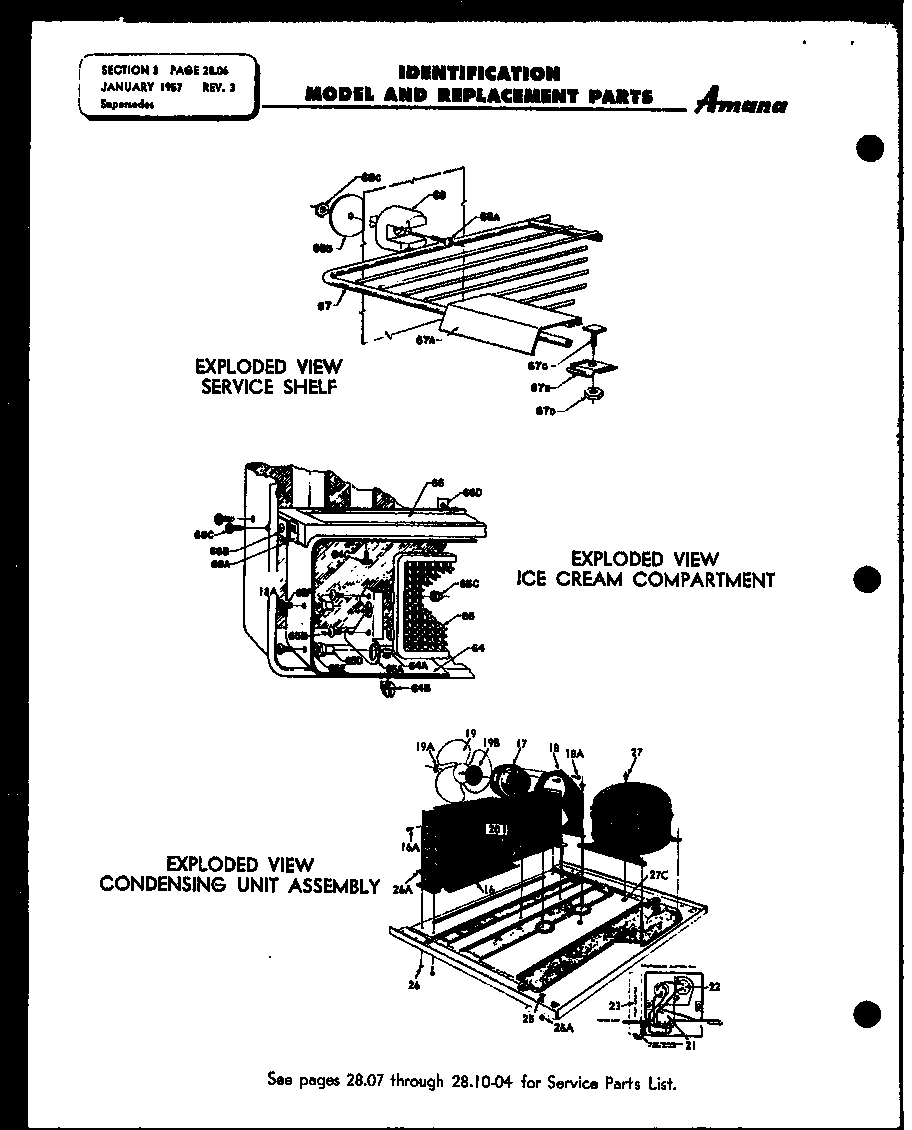

19B 03 – EXPLODED VIEW SERVICE SHELF

19B 03 – EXPLODED VIEW SERVICE SHELF

Written by

in

19B 03 – EXPLODED VIEW SERVICE SHELF

Products

PositionProduct
ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
NIMAY D0754608
20MAY A0330501
64MAY A0304101
64MAY A0288701
66MAY A0286001
66MAY D0754501
66MAY A0294101
66MAY A0285501
66MAY A0303501
67MAY A0259901
67MAY A0282101
67MAY B0465002
67MAY B0465101
67MAY C0665601
68MAY A0259701
68MAY A0304201
68MAY A0261701
68MAY A0310201
