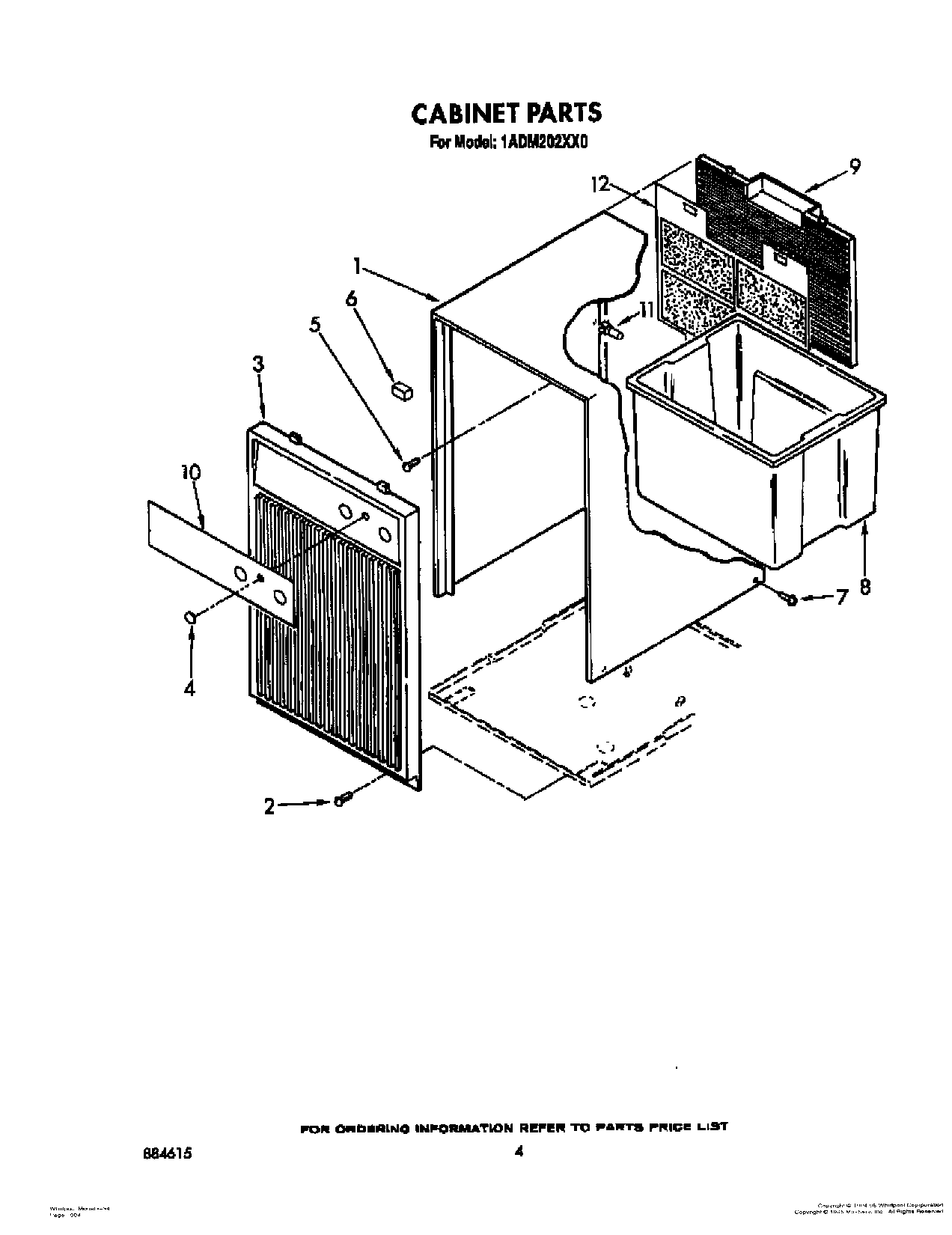

1ADM202XX0 04 – CABINET PARTS

1ADM202XX0 04 – CABINET PARTS

Written by

in

1ADM202XX0 04 – CABINET PARTS

Products

PositionProduct
List, Repair Parts
Tech Sheet and
Guide, Use and Care
1Cabinet
3Grille, Front
4Lens, Light
5WP488729 Whirlpool Refrigerator Door Screw
6Spacer, Grille
7WP489069 Whirlpool Compactor Screw
8Pan, Condensate
9Grille, Rear
10Escutcheon
11Retainer Pin (Rear Grille)
12Filter, Air
12Cap, Condensate Pan
12Seal, Ring (Access Valve) (20 – Pack)
12WP16123 Whirlpool Washer
12212643 Whirlpool Refrigerator Permagum Sealer
12978026 Whirlpool Refrigerator Primary Valve
12978027 Whirlpool Refrigerator Primary Valve
12978030 Whirlpool Refrigerator Valve
12WP978025 Whirlpool Refrigerator Valve
12VALVE, ACCESS (1/2“)
12WPL 799833
12Lacquer, Starlight Gray (1/2 Pt. Uncut)
12No Drip Tape (For Sweating Tubes)
12VALVE, ACCESS (5/8“)
